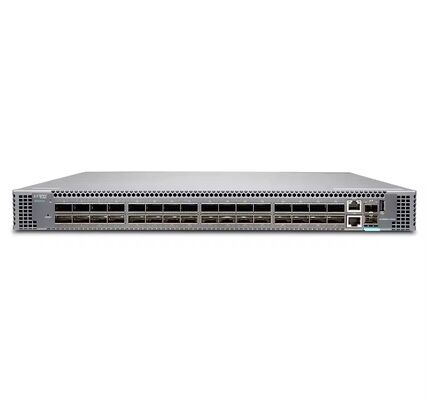

Juniper QFX5120-32C-DC-AFI 32 Ports Ethernet Network Switch with 6.4 Tbps Capacity and 550 Nanoseconds Latency

Name: Juniper QFX5120-32C-DC-AFI 32 Ports Ethernet Network Switch with 6.4 Tbps Capacity and 550 Nanoseconds Latency
Brand: Shanghai Apying Technology Co., Ltd.
SKU: QFX5120-32C-DC-AFI
Price: 5.00 USD
Availability: InStock

Brand Name:	/
Model Number:	QFX5120-32C-DC-AFI
MOQ:	2
Price:	$5,678-5,806

Detail Information

Product Description

Detail Information

Place of Origin:

Shanghai, China

Ports:

Transmission Rate:

10/100/1000Mbps

Switch Capacity:

6.4 Tbps

Latency:

550 Nanoseconds

CPU:

2.2 GHz Quad-core Intel

Memory:

16 GB

Storage:

64 GB SSD

Weight:

21.12 Lb (9.58 Kg)

Dimensions:

1.7 X 17.26 X 20.27 In (4.32 X 43.84 X 51.5 Cm)

Power Consumption:

Max Load: 515 W, Typical Load: 380 W

Management Ports:

2 X RJ-45

100GbE Ports:

32 QSFP28

40GbE Ports:

32 QSFP+

Airflow Options:

Front-to-back, Back-to-front

Power Supply:

Dual Redundant 650 W AC/DC

Highlight:

Juniper QFX5120 PoE network switch

32 port Gigabit Ethernet switch

DC powered PoE switch

Product Description

The QFX5120 Ethernet Switch delivers rich, low latency Layer 2/Layer 3 (L2/L3) features and advanced EVPN-VXLAN capabilities,making it an ideal data center top-of-rack and aggregation switch for enterprise multicloud deployments.

Featuring L3 gateway capabilities for routing between virtualized and bare-metal servers, the QFX5120 is designed for extremely agile data centers that require support for overlay/underlay network architectures. Native 25GbE with 100GbE uplink ports on the QFX5120-48Y, 10GbE copper with 100GbE uplink ports on the QFX5120-48T, and 32 100GbE ports on the QFX5120-32C make the QFX5120 family ideal for spine-and-leaf network deployments.

The QFX5120-32C is a compact 100GbE data center spine switch offering 32 QSFP28 or 32 quad SFP+ (QSFP+) ports. The 100GbE ports can also be configured as 4x25GbE ports using breakout cables, enabling the QFX5120-32C to be used as a high-density 25GbE top-of-rack switch.

The QFX5120-32C switch features the following:
* Up to 32 100GbE or 40GbE ports in a 1 U platform
* Up to 6.4 Tbps L2 and L3 performance, with latency as low as 550 nanoseconds
* A 2.2 GHz quad-core Intel CPU with 16 GB memory and 64 GB SSD storage

All QFX5120 switch models include:
* Feature-rich automation capabilities with support for Python and zero-touch provisioning (ZTP)
* Support for VXLAN as an L2 or L3 gateway and Open vSwitch Database (OVSDB) protocol as an L2 gateway
* Advanced Junos OS features such as EVPN, BGP add-path, MPLS, L3 VPN, and IPv6 6PE

Switching Capacity	124 (with breakout cable)
Weight	21.12 lb (9.58 kg)
Dimensions (HxWxD)	1.7 x 17.26 x 20.27 in (4.32 x 43.84 x 51.5 cm)
Power Consumption	* Max load: 515 W * Typical load: 380 W
Interface Options	* 2 management ports: 2 x RJ-45 ports * 10GbE SFP+: 2 native ports plus 124 (with 4 x 10GbE breakout cable) * 25GbE SFP: 124 (with breakout cable) * 40GbE QSFP+: 32 (ports 0-30 can be configured as a 4 x 10GbE interface) * 100GbE QSFP28: 32 (ports 0-30 can be configured as a 4 x 25GbE interface) * SFP GbE optical and copper module * SFP+ 10GbE optical modules * SFP+ DAC cables: 1/3/5 m twinax copper and 1/3/5/7 m active twinax copper * SFP28 DAC cables: 1/3 m twinax copper * SFP28 Optics: SR, LR * QSFP+ to SFP+: 10GbE direct attach breakout copper (1/3 m twinax copper cable)
Airflow	* Front-to-back (airflow out) for hot aisle deployment * Back-to-front (airflow in) for cold aisle deployment
Power Supply and Fan Modules	* Dual redundant (1+1) and hot-pluggable 650 W AC/DC power supplies * 100-240 V single phase AC power * -48 to -60 V DC power supply * Redundant 4+1 (QFX5120-48Y and QFX5120-48T) or 5+1 (QFX5120-32C) and hot-pluggable fan modules for front-to-back or back-to-front airflow
