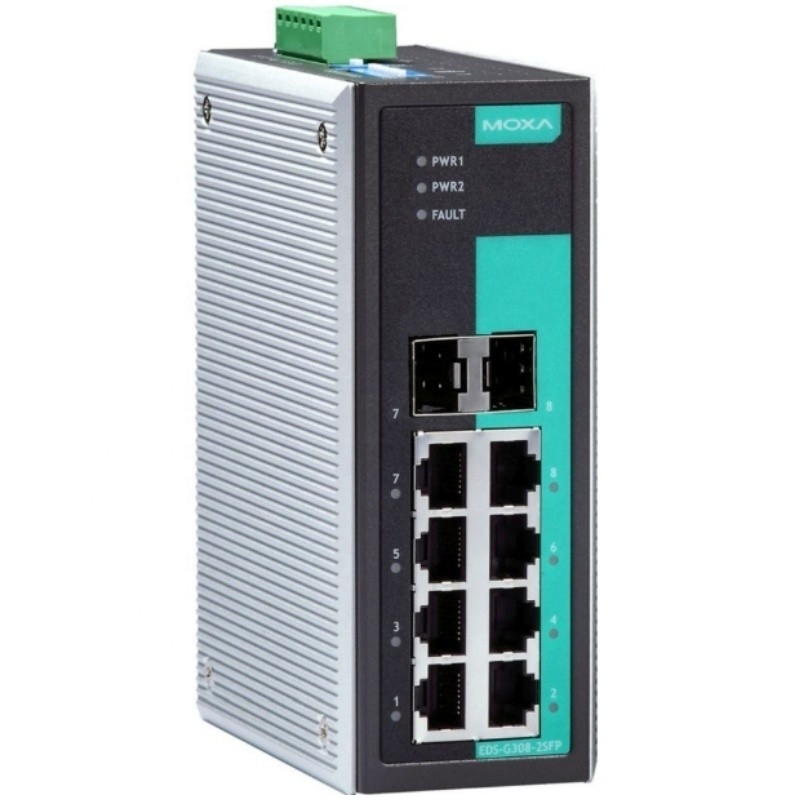

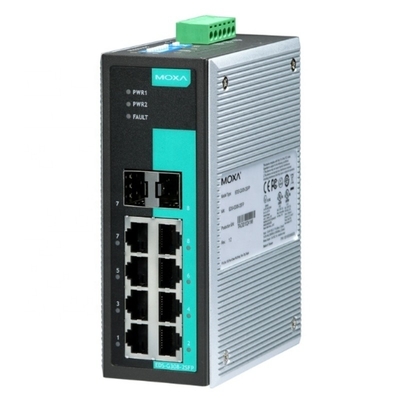

EDS-G308 Series Full Gigabit Unmanaged Ethernet Switches 8 Port Network Switch

MOQ:	2 pieces
Price:	CN¥930.91/pieces >=2 pieces

Detail Information

Private Mold:

Products Status:

Stock

Ports:

≤ 9

Transmission Rate:

10/100/1000Mbps

Function:

POE

Communication Mode:

Full-Duplex & Half-Duplex

Switch Capacity:

Brand Name:

Model Number:

EDS-G308

Place Of Origin:

Shanghai, China

Product Name:

Switch

Condition:

100% Orginal

MOQ:

1pc

Warranty:

5 Years

Highlight:

Product Description

New Original EDS-G308 Series 8G-port full Gigabit unmanaged Ethernet switches

Product Description

Features and Benefits
Fiber-optic options for extending distance and improving electrical noise immunity Redundant dual 12/24/48 VDC power inputs Supports 9.6 KB jumbo frames Relay output warning for power failure and port break alarm Broadcast storm protection -40 to 75°C wide operating temperature range (-T models)
Ethernet Interface
10/100/1000BaseT(X) Ports (RJ45 connector)	EDS-G308/G308-T: 8 EDS-G308-2SFP/G308-2SFP-T: 6 All models support: Auto negotiation speed Full/Half duplex mode Auto MDI/MDI-X connection
Combo Ports (10/100/1000BaseT(X) or 100/1000BaseSFP+)	EDS-G308-2SFP: 2 EDS-G308-2SFP-T: 2
Standards	IEEE 802.3 for 10BaseT IEEE 802.3ab for 1000BaseT(X) IEEE 802.3u for 100BaseT(X) and 100BaseFX IEEE 802.3x for flow control IEEE 802.3z for 1000BaseX IEEE 802.3az for Energy-Efficient Ethernet
Switch properties
Jumbo Frame Size	9.6 KB
MAC Table Size	8 K
Packet Buffer Size	4 Mbits
Processing Type	Store and Forward
Power Parameters
Connection	1 removable 6-contact terminal block(s)
Input Voltage	12/24/48 VDC Redundant dual inputs
Operating Voltage	9.6 to 60 VDC
Reverse Polarity Protection	Supported
Input Current	EDS-G308: 0.8 A @ 12-48 VDC EDS-G308-2SFP: 0.9 A @ 12-48 VDC
Physical Characteristics
Housing	Metal
IP Rating	IP30
Dimensions	52.85 x 135 x 105 mm (2.08 x 5.31 x 4.13 in)
Weight	880 g (1.94 lb)
Installation	DIN-rail mounting Wall mounting (with optional kit)
