EDS-308 8 Port Unmanaged Switch 10/100/1000Mbps POE Network Switch

MOQ:	2 pieces
Price:	CN¥938.18/pieces >=2 pieces

Detail Information

Product Description

Detail Information

Private Mold:

Products Status:

Stock

Ports:

≤ 8

Transmission Rate:

10/100/1000Mbps

Function:

POE

Communication Mode:

Full-Duplex & Half-Duplex

Switch Capacity:

Brand Name:

Model Number:

EDS-308

Place Of Origin:

Shanghai, China

Product Name:

Switch

Condition:

100% Orginal

MOQ:

1pc

Warranty:

5 Years

Highlight:

EDS-308 8 Port Unmanaged Switch

10/100/1000Mbps POE Switch

EDS-308 POE Network Switch

Product Description

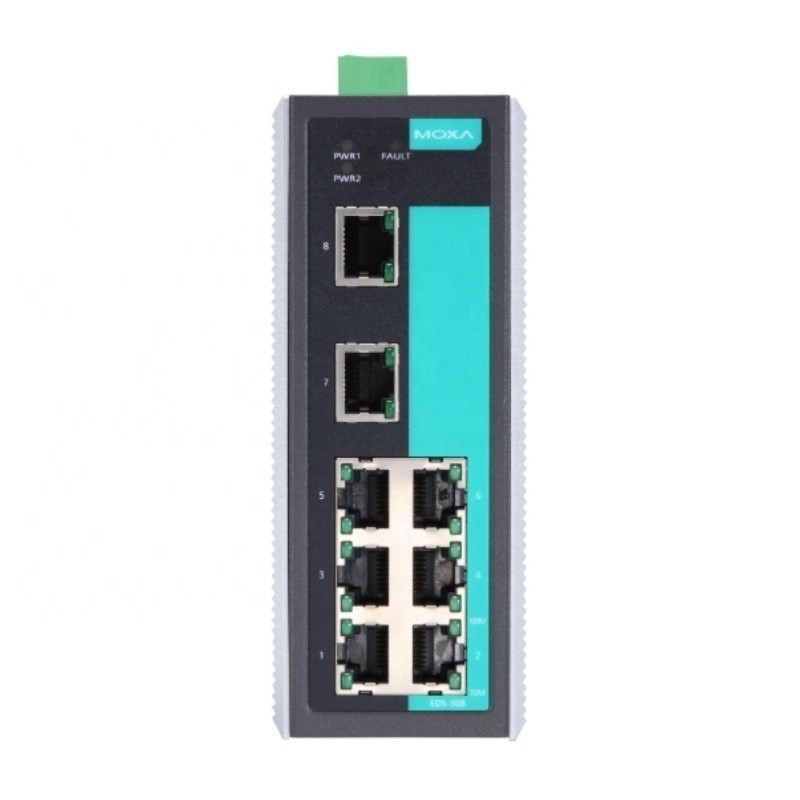

New Original EDS-308 Series 8-port unmanaged Ethernet switches

Product Description

Features and Benefits
Relay output warning for power failure and port break alarm Broadcast storm protection -40 to 75°C wide operating temperature range (-T models)
Ethernet Interface
10/100BaseT(X) Ports (RJ45 connector)	EDS-308/308-T: 8 EDS-308-M-SC/308-M-SC-T/308-S-SC/308-S-SC-T/308-S-SC-80: 7 EDS-308-MM-SC/308-MM-SC-T/308-MM-ST/308-MM-ST-T/308-SS-SC/308-SS-SC-T/308-SS-SC-80: 6 All models support: Auto negotiation speed Full/Half duplex mode Auto MDI/MDI-X connection
100BaseFX Ports (multi-mode SC connector)	EDS-308-M-SC: 1 EDS-308-M-SC-T: 1 EDS-308-MM-SC: 2 EDS-308-MM-SC-T: 2
100BaseFX Ports (multi-mode ST connector)	EDS-308-MM-ST: 2 EDS-308-MM-ST-T: 2
100BaseFX Ports (single-mode SC connector)	EDS-308-S-SC: 1 EDS-308-S-SC-T: 1 EDS-308-SS-SC: 2 EDS-308-SS-SC-T: 2
100BaseFX Ports (single-mode SC connector, 80 km)	EDS-308-S-SC-80: 1 EDS-308-SS-SC-80: 2
Standards	IEEE 802.3 for 10BaseT IEEE 802.3u for 100BaseT(X) and 100BaseFX IEEE 802.3x for flow control
Switch properties
MAC Table Size	2 kbits
Packet Buffer Size	768 K
Processing Type	Store and Forward
Power Parameters
Input Current	EDS-308/308-T: 0.07 A @ 24 VDC EDS-308-M-SC: 0.11 A @ 24 VDC EDS-308-S-SC/308-S-SC-80: 0.12 A @ 24 VDC EDS-308-MM-SC/MM-ST/SS-SC/308-SS-SC-80: 0.15 A @ 24 VDC
Connection	1 removable 6-contact terminal block(s)
Operating Voltage	9.6 to 60 VDC
Input Voltage	Redundant dual inputs 12/24/48 VDC
Reverse Polarity Protection	Supported
Overload Current Protection	Supported
Physical Characteristics
Housing	Metal
IP Rating	IP30
Dimensions	53.6 x 135 x 105 mm (2.11 x 5.31 x 4.13 in)
Weight	790 g (1.75 lb)
Installation	DIN-rail mounting Wall mounting (with optional kit)
