5 Port POE Switch Unmanaged EDS-305 Networking Switch Full Duplex Half Duplex

MOQ:	2 pieces
Price:	CN¥930.91/pieces >=2 pieces

Detail Information

Private Mold:

Products Status:

Stock

Ports:

≤ 8

Transmission Rate:

10/100/1000Mbps

Function:

POE

Communication Mode:

Full-Duplex & Half-Duplex

Switch Capacity:

Brand Name:

Model Number:

EDS-305

Place Of Origin:

Shanghai, China

Product Name:

Switch

Condition:

100% Orginal

MOQ:

1pc

Warranty:

5 Years

Highlight:

Product Description

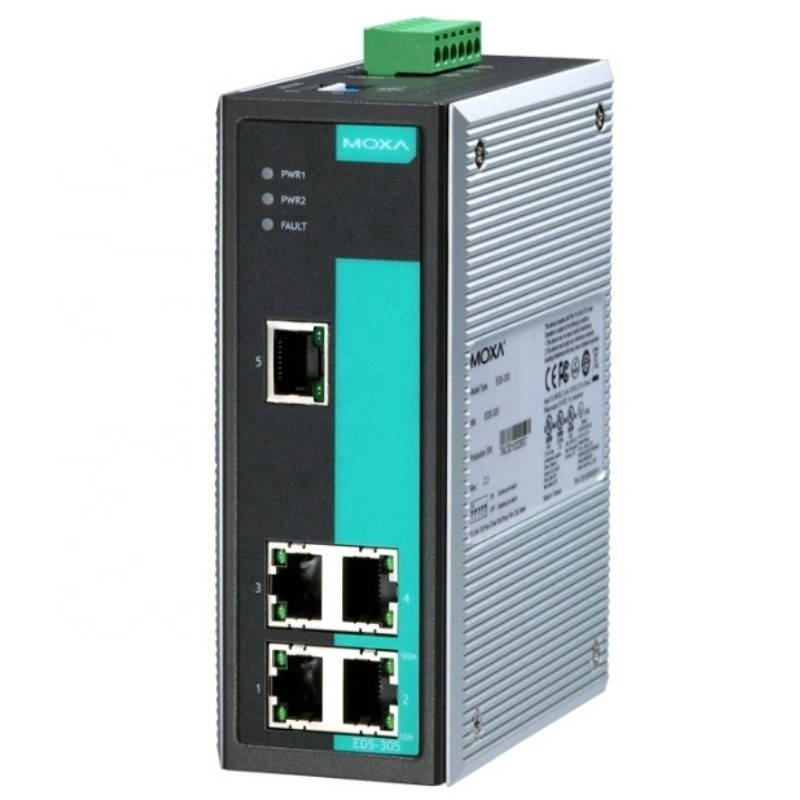

New Original EDS-305 5-port unmanaged Ethernet switches

Product Description

Features and Benefits
Relay output warning for power failure and port break alarm Broadcast storm protection -40 to 75°C wide operating temperature range (-T models)
Ethernet Interface
10/100BaseT(X) Ports (RJ45 connector)	EDS-305/305-T: 5 EDS-305-M-SC/M-ST/S-SC/S-SC-80: 4 All models support: Auto negotiation speed Full/Half duplex mode Auto MDI/MDI-X connection
100BaseFX Ports (multi-mode SC connector)	EDS-305-M-SC/M-SC-T: 1
100BaseFX Ports (multi-mode ST connector)	EDS-305-M-ST/M-ST-T: 1
100BaseFX Ports (single-mode SC connector)	EDS-305-S-SC/S-SC-T: 1
100BaseFX Ports (single-mode SC connector, 80 km)	EDS-305-S-SC-80: 1
Standards	IEEE 802.3 for 10BaseT IEEE 802.3u for 100BaseT(X) and 100BaseFX IEEE 802.3x for flow control
Switch properties
MAC Table Size	1 K
Packet Buffer Size	384 K
Processing Type	Store and Forward
Power Parameters
Input Current	EDS-305/305-T: 0.11 A @ 24 VDC EDS-305-M/S Models: 0.15 A @ 24 VDC
Connection	1 removable 6-contact terminal block(s)
Operating Voltage	12 to 48 VDC
Input Voltage	24 VDC Redundant dual inputs
Reverse Polarity Protection	Supported
Overload Current Protection	Supported
Physical Characteristics
Housing	Metal
IP Rating	IP30
Dimensions	53.6 x 135 x 105 mm (2.11 x 5.31 x 4.13 in)
Weight	790 g (1.75 lb)
Installation	DIN-rail mounting Wall mounting (with optional kit)
