Original EDS-316 Series Networking Switch 16 Port Unmanaged Ethernet Switch

MOQ:	2 pieces
Price:	CN¥930.91/pieces >=2 pieces

Detail Information

Product Description

Detail Information

Private Mold:

Products Status:

Stock

Ports:

Transmission Rate:

10/100/1000Mbps

Function:

POE

Communication Mode:

Full-Duplex & Half-Duplex

Switch Capacity:

Brand Name:

Model Number:

EDS-316 Series

Place Of Origin:

Shanghai, China

Product Name:

Switch

Condition:

100% Orginal

MOQ:

1pc

Warranty:

5 Years

Highlight:

EDS-316 Series Networking Switch

Original EDS-316 Networking Switch

16 Port Unmanaged Ethernet Switch

Product Description

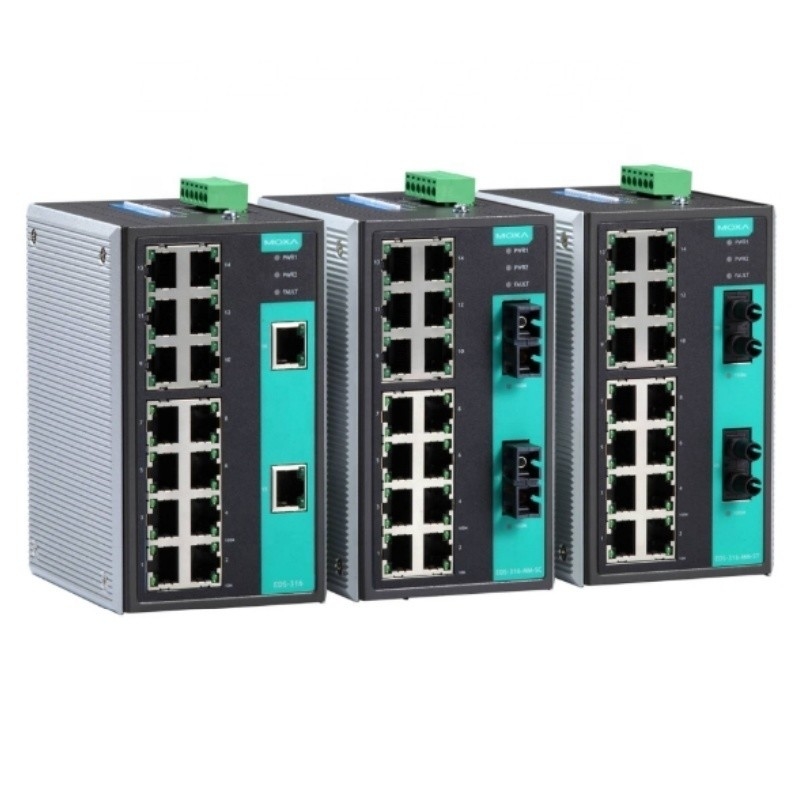

New Original EDS-316 Series 16-port unmanaged Ethernet switches

Product Description

Features and Benefits
Relay output warning for power failure and port break alarm Broadcast storm protection -40 to 75°C wide operating temperature range (-T models)
Ethernet Interface
10/100BaseT(X) Ports (RJ45 connector)	EDS-316 models: 16 EDS-316-MM-SC/MM-ST/MS-SC/SS-SC models: 14 EDS-316-SS-SC-80 models: 14 EDS-316-M-SC/M-ST/S-SC models: 15 All models support: Auto negotiation speed Full/Half duplex mode Auto MDI/MDI-X connection
100BaseFX Ports (multi-mode SC connector)	EDS-316-M-SC models: 1 EDS-316-MM-SC models: 2 EDS-316-MS-SC models: 1
100BaseFX Ports (multi-mode ST connector)	EDS-316-M-ST models: 1 EDS-316-MM-ST models: 2
100BaseFX Ports (single-mode SC connector)	EDS-316-MS-SC models: 1 EDS-316-S-SC models: 1 EDS-316-SS-SC models: 2
100BaseFX Ports (single-mode SC connector, 80 km)	EDS-316-SS-SC-80 models: 2
Standards	IEEE 802.3 for 10BaseT IEEE 802.3u for 100BaseT(X) and 100BaseFX IEEE 802.3x for flow control
Switch properties
Packet Buffer Size	1.25 Mbits
MAC Table Size	4 K
Processing Type	Store and Forward
Power Parameters
Input Voltage	12/24/48 VDC Redundant dual inputs
Input Current	0.34 A (EDS-316) @ 24 VDC 0.35 A (EDS-316-S-SC) @ 24 VDC 0.35 A (EDS-316-M-SC, EDS-316-M-ST) @ 24 VDC 0.40 A (EDS-316-SS-SC) @ 24 VDC 0.39 A (EDS-316-MM-SC, EDS-316-MM-ST) @ 24 VDC
Connection	1 removable 6-contact terminal block(s)
Operating Voltage	9.6 to 60 VDC
Reverse Polarity Protection	Supported
Overload Current Protection	Supported
Physical Characteristics
Housing	Metal
IP Rating	IP30
Dimensions	80.1 x 135 x 105 mm (3.15 x 5.31 x 4.13 in)
Weight	1140 g (2.52 lb)
Installation	DIN-rail mounting Wall mounting (with optional kit)
