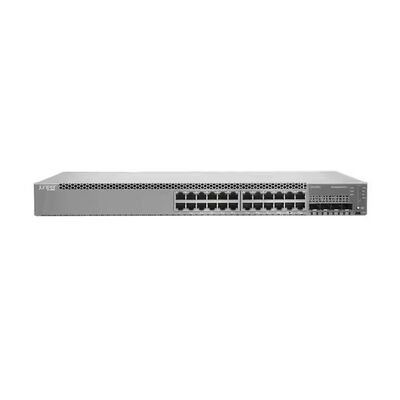

Juniper Switch EX4100-24P Ethernet Switch with 24 Ports PoE+ 4 x 1/10G SFP/SFP+ and 200 Gbps Backplane Speed

Name: Juniper Switch EX4100-24P Ethernet Switch with 24 Ports PoE+ 4 x 1/10G SFP/SFP+ and 200 Gbps Backplane Speed
Brand: Shanghai Apying Technology Co., Ltd.
SKU: EX4100-24P
Price: 1.00 USD
Availability: InStock

Brand Name:	/
Model Number:	EX4100-24P
MOQ:	2
Price:	$1,468-1,526

Detail Information

Product Description

Detail Information

Place of Origin:

Shanghai, China

Ports:

Transmission Rate:

10/100/1000Mbps

Form Factor:

Fixed 1 U Access

Uplink Ports:

4 X 1/10GbE

Stacking Ports:

4 X 10/25GbE

Backplane Speed:

200 Gbps

Data Rate:

164/328 Gbps

Throughput:

244 Mpps

Power Supplies:

Redundant Internal Load-sharing

MAC Addresses:

64000

Jumbo Frames:

9216 Bytes

IPv4 Routes:

16000

IPv6 Routes:

8000

ARP Entries:

32000

Dimensions:

1.72" (H) X 17.4" (W) X 13.8" (D)

Highlight:

Juniper EX4100-24P PoE+ switch

24 port network switch with SFP+

10G Ethernet switch with PoE+

Product Description

EX4100 Specifications
Form factor	Fixed 1 U access
Port density	EX4100-24P/T: 24 x 1GbE PoE/Non-PoE, 4 x 1/10GbE uplinks, and 4 x 10/25GbE stacking/uplinks
Port density	EX4100-48P/T: 48 x 1GbE PoE/Non-PoE, 4 x 1/10GbE uplinks, and 4 x 10/25GbE stacking/uplinks
Wired Assurance	Yes
Campus Fabrics	10-member Virtual Chassis, EVPN-VXLAN
Cloud Managed	Yes
Dimensions (W x H x D)	1.72” (H) x 17.4” (W) x 13.8” (D)
Backplane speed	200 Gbps Virtual Chassis Interconnect
Data rate	EX4100-24P/T: 164/328 Gbps, EX4100-48P/T: 188/376 Gbps
Throughput	EX4100-24P/T: 244 Mpps, EX4100-48P/T: 279 Mpps
Resiliency	Redundant internal load-sharing power supplies; redundant variable speed fans
Traffic monitoring	sFlow, IPFIX, flow based telemetry
Quality-of-service (QoS) queues/port	12 (8 unicast, 4 multicast)
MAC addresses	64000
Jumbo frames	9216 bytes
IPv4 unicast/multicast routes	16000
IPv6 unicast/multicast routes	8000
Number of VLANs	N/A
ARP entries	32000

Contact Me

Don't hesitate to contact us for best prices !

Sincerely hope to start a good cooperation with you soon !

Name	Jack Long
WhatsApp	008613310122788
Wechat/Tel	008613310122788

EX4100-24MP	EX4100 24-Port Multi-Gig with 16x 1G, 8x 1G/2.5G/5G/10G PoE++, 4x 10G SFP+ Uplink ports, 4x 25G SFP28 Stacking/Uplink ports, redundant fans, 1 AC PSU JPSU-920-AC-AFO included (optics sold separately) with Standard SW. TAA Compliant.
EX4100-24MP-CHAS	EX4100 24-Port Multi-Gig PoE++ switch chassis only. No Fans or PSUs
EX4100-24P	EX4100 24-Port 10/100/1000BaseT PoE+, 4x 10G SFP+ Uplink ports, 4x 25G SFP28 Stacking/Uplink ports, redundant fans, 1 AC PSU JPSU-920-AC-AFO included (optics sold separately) with Standard SW. TAA Compliant.
EX4100-24P-CHAS	EX4100 24-Port PoE+ switch chassis only. No Fans or PSUs
EX4100-24T	EX4100 24-Port 10/100/1000BaseT, 4x 10G SFP+ Uplink ports, 4x 25G SFP28 Stacking/Uplink ports, redundant fans, 1 AC PSU JPSU-150-AC-AFO included (optics sold separately) wuth Standard SW. TAA Compliant.
EX4100-24T-CHAS	EX4100 24-Port switch chassis only. No Fans or PSUs
EX4100-24T-DC	EX4100 24-Port 10/100/1000BaseT, 4x 10G SFP+ Uplink ports, 4x 25G SFP28 Stacking/Uplink ports, 1 DC PSU JPSU-150-DC-AFO included (optics sold separately) with Standard SW. TAA Compliant.
EX4100-48MP	EX4100 48-Port Multi-Gig with 32 x 1G, 16 x 1G/2.5G PoE++, 4x 10G SFP+ Uplink ports, 4x 25G SFP28 Stacking/Uplink ports, redundant fans, 1 AC PSU JPSU-920-AC-AFO included (optics sold separately) with Standard SW. TAA Compliant.
EX4100-48MP-CHAS	EX4100 48-Port Multi-Gig PoE++ switch chassis only. No Fans or PSUs
EX4100-48P	EX4100 48-Port 10/100/1000BaseT PoE+, 4x 10G SFP+ Uplink ports, 4x 25G SFP28 Stacking/Uplink ports, redundant fans, 1 AC PSU JPSU-920-AC-AFO included (optics sold separately) with Standard SW. TAA Compliant.
EX4100-48P-CHAS	EX4100 48-Port PoE+ switch chassis only. No Fans or PSUs
EX4100-48T	EX4100 48-Port 10/100/1000BaseT, 4x 10G SFP+ Uplink ports, 4x 25G SFP28 Stacking/Uplink ports, redundant fans, 1 AC PSU JPSU-150-AC-AFO included (optics sold separately) with Standard SW. TAA Compliant.
EX4100-48T-AFI	EX4100 48-Port 10/100/1000BaseT, 4x 10G SFP+ Uplink ports, 4x 25G SFP28 Stacking/Uplink ports, redundant fans, back-to-front airflow, 1 AC PSU JPSU-150-AC-AFI included (optics sold separately) with Standard SW. TAA Compliant.
EX4100-48T-CHAS	EX4100 48-Port switch chassis only. No Fans or PSUs
EX4100-48T-DC	EX4100 48-Port 10/100/1000BaseT, 4x 10G SFP+ Uplink ports, 4x 25G SFP28 Stacking/Uplink ports, 1 DC PSU JPSU-150-DC-AFO included (optics sold separately) with Standard SW. TAA Compliant.
EX4100-F-12P	EX4100-F 12-Port Fanless 10/100/1000BaseT PoE+, 2x 1G/2.5G/10GBaseT Uplink ports, 4x 10G SFP+ Stacking/Uplink ports (optics sold separately) with Standard SW. PoE++ Powered.
EX4100-F-12T	EX4100-F 12-Port Fanless 10/100/1000BaseT, 2x 1G/2.5G/10GBaseT Uplink ports, 4x 10G SFP+ Stacking/Uplink ports (optics sold separately) with Standard SW.
EX4100-F-24P	EX4100-F 24-Port 10/100/1000BaseT PoE+, 4x 10G SFP+ Uplink ports, 4x 10G SFP+ Stacking ports, (optics sold separately) with Standard SW.TAA Compliant.
EX4100-F-24T	EX4100-F 24-Port 10/100/1000BaseT, 4x 10G SFP+ Uplink ports, 4x 10G SFP+ Stacking ports (optics sold separately) with Standard SW.TAA Compliant.
EX4100-F-48P	EX4100-F 48-Port 10/100/1000BaseT PoE+, 4x 10G SFP+ Uplink ports, 4x 10G SFP+ Stacking ports (optics sold separately) with StandardSW.TAA Compliant.
EX4100-F-48T	EX4100-F 48-Port 10/100/1000BaseT, 4x 10G SFP+ Uplink ports, 4x 10G SFP+ Stacking ports (optics sold separately) with Standard SW.TAA Compliant.
