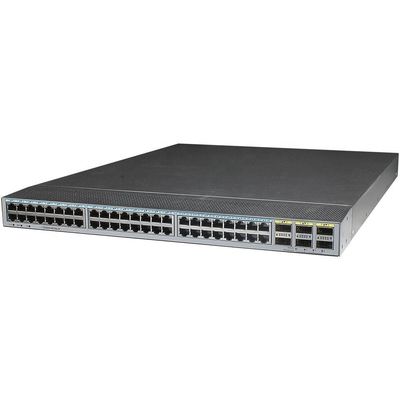

Private Mold Solutions Network Switch CE6856-48T6Q-HI Data Center Idc Switch with 48 Ports

General Information

• Product Model: CE6856-48T6Q-HI
• Product Series: CloudEngine 6800 Series1

Ports

• 10GBASE-T Ethernet Electrical Ports: 48 ports, RJ45 connector type, compliant with IEEE 802.3an and IEEE 802.3az standards, supporting straight-through and crossover cables, with a working mode of 100/1000 Mbit/s and 10 Gbit/s auto-sensing, full-duplex, and a maximum transmission distance of 100 m.
• 40GE QSFP+ Ethernet Optical Ports: 6 ports, LC/MPO connector type, optical port attributes depending on the module or cable in use, compliant with IEEE 802.3ba standard, working mode is full-duplex.
• ETH Management Interfaces: 2 ports, combo type, with the GE optical interface of the combo port supporting FE SFP_eSFP
• Console Interface: RJ45 connector type, compliant with RS232 standard, working mode is duplex universal asynchronous receiver/transmitter (UART), baud rate from 9600 bit/s to 115200 bit/s, default value is 9600 bit/s.

• Performance



  • Processor: 1.2 GHz, quad-core.
  • DRAM Memory: 4 GB.
  • NOR Flash: 16 MB.
  • NAND Flash: 1 GB.

  Power



  • Power Source Type: AC/DC/High-Voltage DC.
  • AC Power Input: Rated input voltage range is 100 V AC to 240 V AC, 50/60 Hz; maximum input voltage range is 90 V AC to 290 V AC, 47 Hz to 63 Hz.
  • DC Power Input: Rated voltage range is -48 V DC to -60 V DC; maximum voltage range is -38.4 V DC to -72 V DC.
  • High-Voltage DC Power Input: Rated voltage of 240 V high-voltage DC power input is 240 V DC, maximum voltage range is 188 V DC to 290 V DC; rated voltage range of 380 V high-voltage DC power input is 240 V DC to 380 V DC, maximum voltage range is 188 V DC to 400 V DC.
  • Rated Input Current: 600 W AC & 240 V DC power module (PAC-600WB series) is 8 A (100 V AC to 240 V AC) / 4 A (240 V DC); 600 W high-voltage DC power module (PHD-600WA series) is 4 A (240 V DC to 380 V DC); 1200 W DC power module (PDC-1K2WA series) is 38 A (-48 V DC to -60 V DC).
  • Chassis Power Consumption: Maximum power consumption is 346 W, typical power consumption is 219 W (100% throughput, 3 m Ethernet cables on 48 ports and QSFP+ cables on 6 ports, double power modules).
  • Chassis Heat Dissipation: Maximum heat dissipation is 1181 Btu/hr, typical heat dissipation is 747 Btu/hr (100% throughput, 3 m Ethernet cables on 48 ports and QSFP+ cables on 6 ports, double power modules).

  Environmental



  • Operating Temperature: 0 °C to 40 °C (32 °F to 104 °F) at altitude of 0 – 1800 m (0 – 5906 ft.).
  • Storage Temperature: -40 °C to +70 °C (-40 °F to +158 °F).
  • Relative Humidity: 5% rh to 95% rh, noncondensing.
  • Altitude: < 5000 m (16404 ft.).
  • Noise: < 53 dBA (back-to-front airflow or front-to-back airflow, at 27 °C).

  Mechanical



  • Dimensions: Not specified in the provided data.
  • Weight: Not specified in the provided data.

  Other



  • Surge Protection: Ethernet electrical ports have 2 kV in common mode; power module has 4 kV in common mode and 2.5 kV in differential mode for AC, and 4 kV in common mode and 2 kV in differential mode for DC.
  • Airflow: Front-to-back or back-to-front, depending on the fan modules and power modules1.
  • Reliability and Availability: Power module backup is 1+1 backup, fan module backup is 1+1 backup (Note: a CE6800 chassis uses two fan modules, with each fan module containing two fans. The four fans in the chassis work in 3 + 1 backup mode).
  • Hot Swap: All power modules and fan modules support hot swap.
  • Mean Time Between Failures (MTBF): 54.48.
  • Mean Time to Repair (MTTR): 1.81.
