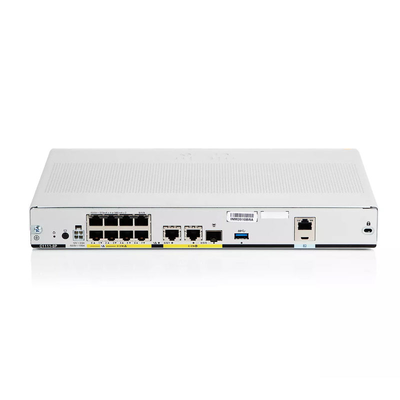

Original Cisco Enterprise Router C1111-8P 8-Port Gigabit Integrated Router Dual Ethernet Wireless Router

Description

ISR 1100 8 Ports Dual GE WAN Ethernet Router

Physical Properties

Dimensions (H x W x D)

Non-LTE models:

H x W X D = 1.75 x 12.7 x 9.03 in. (42 x 323 x 230mm) (includes rubber feet)

Weight with AC PS (w/o modules)

5.5 Lbs. (2.5 kg) maximum

AC Input Power

Input voltage

Universal 100 to 240 VAC

Frequency

50-60 Hz

Input current

PoE not enabled: 0.82A maximum

PoE enabled: 1.55A Maximum

Surge current

90 A peak and less than 8 Arms per half cycle

Ports

Micro USB Port

One RJ-45: Separate console port

USB port

USB 3.0 Type A host port

USB devices supported:

USB flash memory

Console port

One USB 5-pin micro Type B: Console management connectivity

10/100/1000 Gigabit Ethernet

Two GE ports allocated among RJ45 and SFP as:

One combo port with 10/100/1000RJ-45 Ethernet port or SFP Ethernet port (labeled GE0/0/0)

One dedicated 10/100/1000RJ-45 Ethernet port (labeled GE0/0/1)

Wireless VLANs

32 (encrypted and non-encrypted VLANs)

Wireless specifications

2x2 .11ac Wave 2

Default and maximum DRAM

4GB

Default and maximum flash

4GB

Inline PoE

4 ports for -8P PIDs, 2 ports for -4P PIDs

802.3af-compliant PoE or 802.3at-compliant PoE+

Acoustic for 1100 Series ISRs

Not Applicable - Fanless design

Approvals and compliance

Emission

47 CFR Part 15

CISPR 32 Edition 2

EN 300 386 V1.6.1

EN 55032:2012/ AC:2013

EN 55032:2015

EN61000-3-2 2014

EN61000-3-3: 2013

ICES-003 ISSUE 6:2016

KN 32: 2015

V-2/2015.04

V-3/2015.04

TCVN 7189: 2009

CNS13438: 2006

IEC 60950-1

EN 60950-1

UL 60950-1

CSA C22.2 No. 60950-1

Immunity

CISPR24: 2010 + A1: 2015

EN 300 386 V1.6.1

EN55024: 2010 + A1: 2015

KN35: 2015

TCVN 7317: 2003

Environmental

Operating humidity

5 to 85% relative humidity

Operating temperature

32 to 104°F (0 to 40°C) Sea Level;

32 to 77°F (0°C to 25°C) at 10,000 ft

1.5°C derating per 1000 ft

Altitude in China

0-6560 ft (0-2000 m)

Altitude in all other countries

0-10,000 ft (0-3050 m)

Transportation and Storage

Nonoperating temperature

-40 to 158°F (-40 to 70°C)

Nonoperating humidity

5 to 95% relative humidity (noncondensing)

Nonoperating altitude

0 to 15,000 ft (0 to 4570m)
