| Price: | CN¥13,005.72/pieces 1-1 pieces |

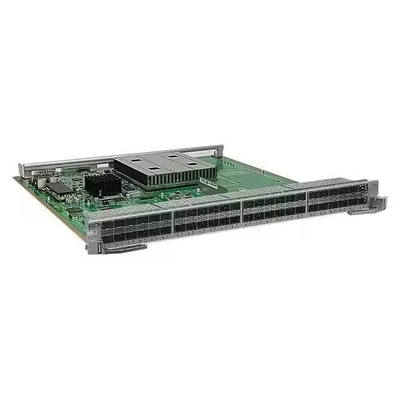

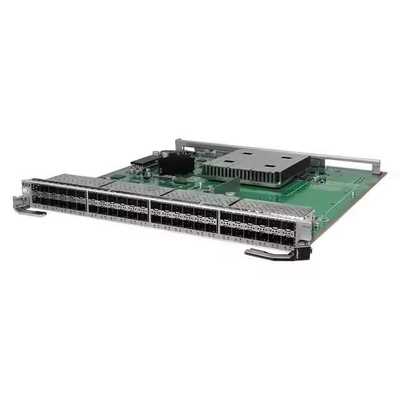

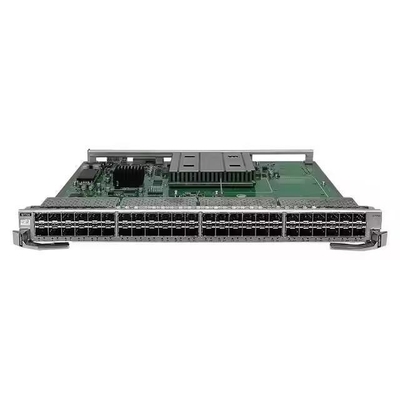

Model | LSS7X48SX6S0 |
Part Number | 03033ATA, 03033ATA-001, 03033ATA-002 |
Interface Type | 48-port 10GE SFP+ (X6S, SFP+) |
Supported Switch Models | S7703, S7703 PoE, S7706, S7706 PoE, S7710, S7712 |
Slots Compatibility | - Slots 01 to 03 in an S7703 or S7703 PoE chassis - Slots 01 to 06 in an S7706 or S7706 PoE chassis - Slots 01 to 12 in an S7712 chassis |
Physical Specifications | - Dimensions (H x W x D): 35.1 mm x 397.2 mm x 430.4 mm - Weight: 3.2 kg - Maximum power consumption: 192 W |
Functions | - Provides forty-eight 1000M/10G BASE-X ports for data transmission and switching - Distributed forwarding using a distributed data plane - Hot swappable |
Software Compatibility | - S7703 chassis: supported in V200R013C02 and later versions - S7703 PoE, S7706, S7706 PoE, and S7712 chassis: supported in V200R019C00 and later versions - 03033ATA-001: Supported in V200R021C10SPC500 and later versions |
Indicators | - ACT indicator (Yellow): Blinking when transmitting and receiving data - LINK indicator (Green): Steady on when a link is established - RUN/ALM: Green for powered on, slow blinking when software is running properly, fast blinking when starting |
Optical Port Attributes | - Connector type: SFP+ - Attributes depend on the SFP optical module used - Standards compliance: IEEE802.3z |
Network Protocol | IP |
