Customized TEG1005D 5 Port Gigabit Switch Metal Network Monitoring Deconcentrator 10/100/1000mbp Switch and Private Mold

MOQ:	2 pieces
Price:	CN¥83.10/pieces >=2 pieces

Detail Information

Private Mold:

Yes

Products Status:

Stock

Ports:

Transmission Rate:

10/100Mbps

Function:

LACP, POE, QoS, SNMP, Stackable, VLAN Support

Communication Mode:

Full-Duplex

Brand Name:

Model Number:

TEG1005D

Place Of Origin:

Shanghai, China

Product Name:

Network Switches

Size:

100.0mm*64.0mm*23.0mm

Color:

Customizable

Switch Capacity:

10Gbps

Packet Forwarding Rate:

7.44Mpps

Product Description

Network standards	IEEE802.3, IEEE802.3u,IEEE802.3x, IEEE802.3ab

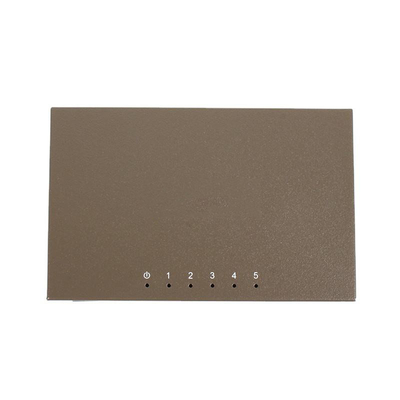

LED Indicator	1 * Power,5 * Link/Act

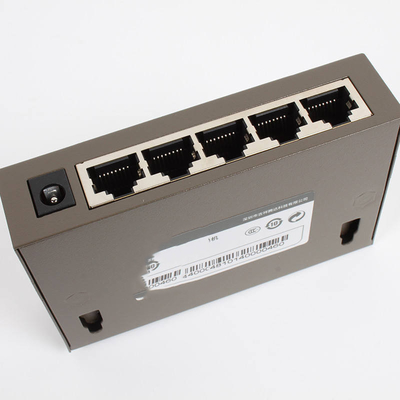

Interfaces	5*10/100/1000 Base-T Ethernet ports (Auto MDI/MDIX)
Transmission media	Recommended: CAT5/5e UTP or better
Dimension	100.0mmx64.0mmx23.0mm
Material	Metal
Level of protection	ESD: Air discharge: ±8kV Contact discharge: ±6kV
Forwarding mode	Store-and-forward
Switch capacity	10Gbps
Packet forwarding rate	7.44Mpps
Buffer	1Mb
MAC address table	2K
Jumbo frame	15K
Power	Input: 100-240V AC 50/60Hz Output: 5.0V 0.6A ( External Power Adapter )
Power consumption	Max:<2.5W

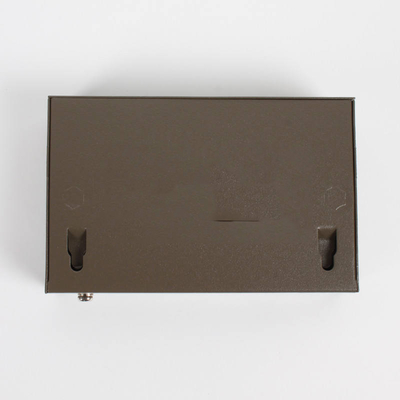

Mounting	Desktop mounting: support Wall mounting: support Rack mounting:non-support
Environment	Operating temperature: 0°C - 45℃ Storage temperature: -40°C - 70°C Operating humidity: (10% - 90%) RH, non-condensing Storage humidity: (5% - 90%) RH, non-condensing
Certification	CE, FCC, RoHS
Protocols	CDMA/CD
MAC address learning	Auto-Learning and Auto-Aging
Funtions	plug-and-play
