products details

Created with Pixso. Home Created with Pixso. Products Created with Pixso.
Networking Switch
Created with Pixso.

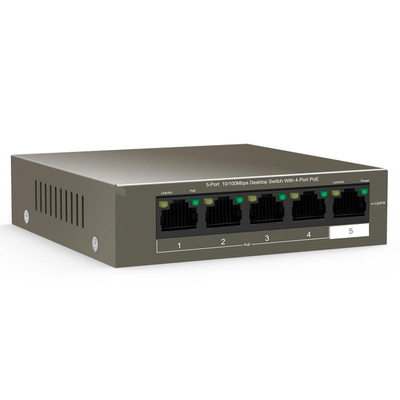

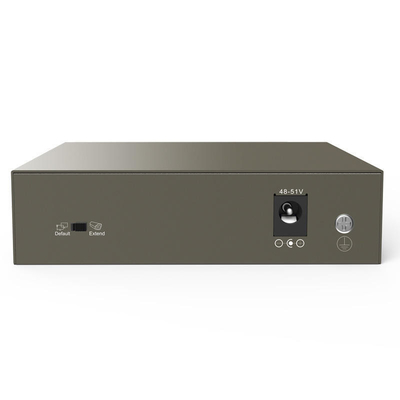

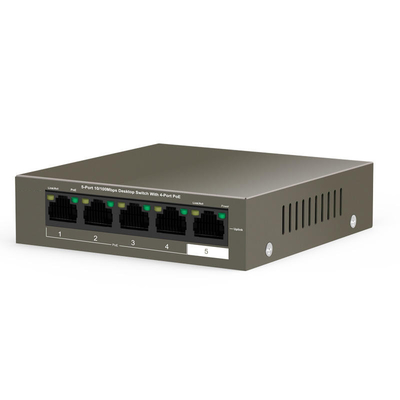

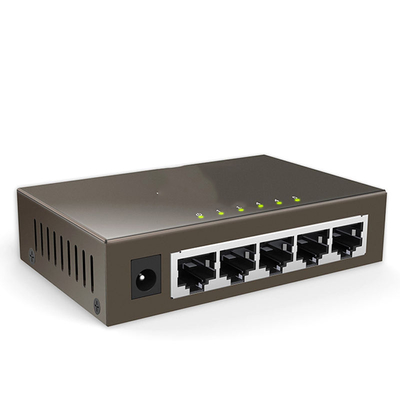

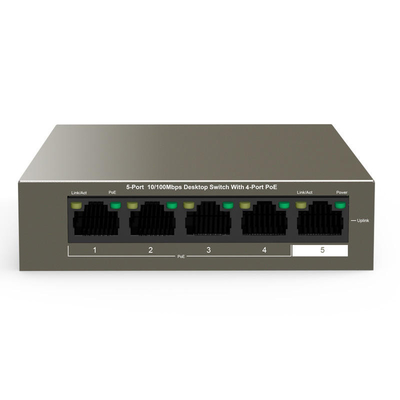

1Gbps Switch Capacity Customized Long Distance Transmission TEF1105P-4-63W 5-Port 10/100Mbps Desktop Switch with 4-Port PoE

1Gbps Switch Capacity Customized Long Distance Transmission TEF1105P-4-63W 5-Port 10/100Mbps Desktop Switch with 4-Port PoE

1Gbps Switch Capacity Customized Long Distance Transmission TEF1105P-4-63W 5-Port 10/100Mbps Desktop Switch with 4-Port PoE

MOQ: 2 pieces
Price: CN¥126.45/pieces >=2 pieces
Detail Information
Product Description
Detail Information
Private Mold:
Yes
Products Status:
Stock
Ports:
16
Transmission Rate:
10/100Mbps
Function:
LACP, POE, QoS, SNMP, Stackable, VLAN Support
Communication Mode:
Full-Duplex
Brand Name:
/
Model Number:
TEF1105P
Place Of Origin:
Shanghai, China
Product Name:
Network Switches
Size:
100.0mm*100.0mm*26.0mm
Color:
Customizable
Switch Capacity:
1Gbps
Product Description
Product Description



Network standards IEEE 802.3, IEEE 802.3u,IEEE 802.3x,IEEE 802.3af,IEEE 802.3at
LED Indicator 5* Link/Ack LED indicators
1 * Power LED indicator
Interfaces 4*10/100 Base-TX Ethernet Ports(Data/Power)
1*10/100 Base-TX Ethernet Port(Data)
Transmission media Recommended: CAT5/5e UTP or better
Dimension 100.0mmx100.0mmx26.0mm
Level of protection Lightning protection for ports: 6kV
Lightning protection for power: 6kV
ESD:
Air discharge: ±10kV
Contact discharge: ±8kV
Forwarding mode Store-and-forward
Switch capacity 1Gbps
Packet forwarding rate 0.74Mpps
Buffer 448K
MAC address table 1K
PoE budget Single port: AF: 15.4W, AT: 30W
Whole device: 58W





Our advantage

1Gbps Switch Capacity Customized Long Distance Transmission TEF1105P-4-63W 5-Port 10/100Mbps Desktop Switch with 4-Port PoE 01Gbps Switch Capacity Customized Long Distance Transmission TEF1105P-4-63W 5-Port 10/100Mbps Desktop Switch with 4-Port PoE 11Gbps Switch Capacity Customized Long Distance Transmission TEF1105P-4-63W 5-Port 10/100Mbps Desktop Switch with 4-Port PoE 21Gbps Switch Capacity Customized Long Distance Transmission TEF1105P-4-63W 5-Port 10/100Mbps Desktop Switch with 4-Port PoE 31Gbps Switch Capacity Customized Long Distance Transmission TEF1105P-4-63W 5-Port 10/100Mbps Desktop Switch with 4-Port PoE 41Gbps Switch Capacity Customized Long Distance Transmission TEF1105P-4-63W 5-Port 10/100Mbps Desktop Switch with 4-Port PoE 51Gbps Switch Capacity Customized Long Distance Transmission TEF1105P-4-63W 5-Port 10/100Mbps Desktop Switch with 4-Port PoE 6
