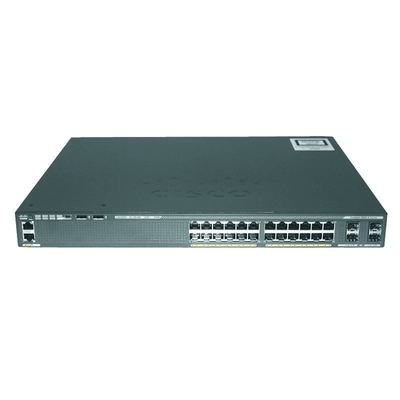

WS-C2960X-24PS-L Original 2960-X 24 Ports GigE PoE Switch Private Mold for Efficiency

Price:	CN¥7,225.40/pieces 1-9 pieces

Detail Information

Product Description

Detail Information

Place of Origin:

China

Private Mold:

Products Status:

Stock

Ports:

Transmission Rate:

10/100/1000Mbps

Function:

LACP, POE, QoS

Communication Mode:

Full-Duplex & Half-Duplex

Brand Name:

Model Number:

WS-C2960X-24PS-L

Place Of Origin:

Shanghai, China

Condition:

NIB Original

Warranty:

1 Year

Product Description

Specification

Product Description

WS-C2960X-24PS-L Specification
General
model info:	WS-C2960X-24PS-L
enclosure type	Rack-mountable - 1U
Ports	24 x 10/100/1000 + 4 x 1G SFP
Network management Interface	10/100 Mbps Ethernet (RJ-45)
Available PoE Power	370W
Forwarding bandwidth(Gbps)	108Gbps
Maximum stacking number	8
Stack Bandwidth	80G
Forwarding Performance	71.4Mpps
Switching bandwidth	216Gbps
Maximum active VLANs	1023
MAC Address Table Size	16K (default)
CPU	APM86392 600MHz dual core
RAM	512 MB
Flash Memory	128 MB
Status Indicators	Per-port status: Link integrity, disabled, activity, speed, and full duplex System status: System, RPS, Stack link status, link duplex, PoE, and link speed
Expansion / Connectivity
Console ports	USB (Type-B), Ethernet (RJ-45)
Stacking cable	Optional
Power Redundancy	Option (PWR-RPS2300)
Voltage range (Auto)	110V-240V
Power Consumption Operational	0.49KVA
Miscellaneous
Width	17.5 Inches (44.5 cm)
Depth	14.5 Inches (36.8 cm)
Height	1.75 Inches (4.5 cm)
Package Weight	23.48 Pounds (10.65Kg)
Weight	12.8 Pounds (5.8 Kg)
Rack Mounting Kit	optional
MTBF in hours	324,280
Compliant Standards	IEEE 802.1D Spanning Tree Protocol IEEE 802.1p CoS Prioritization IEEE 802.1Q VLAN IEEE 802.1s IEEE 802.1w IEEE 802.1X IEEE 802.1ab (LLDP) IEEE 802.3ad IEEE 802.3af and IEEE 802.3at IEEE 802.3ah (100BASE-X single/multimode fiber only) IEEE 802.3x full duplex on 10BASE-T, 100BASE-TX, and 1000BASE-T ports IEEE 802.3 10BASE-T IEEE 802.3u 100BASE-TX IEEE 802.3ab 1000BASE-T IEEE 802.3z 1000BASE-X RMON I and II standards SNMP v1, v2c, and v3 IEEE 802.3az IEEE 802.3ae 10Gigabit Ethernet
System software / license
System software	IOS LAN BASE
license	NERGY-MGT-100-K9, EW-DO-100-DE
features	RPS Support Jumbo Frames VLANS Voice Vlan VTPv2 CDPv2 LLDP 802.3ad LACP PVST/PVST+ 802.1W/802.1S Port Fast/Uplink Fast port CoS Trust and Override Scheduling Priority Queuing Configure CoS Priority Queues Weighted Tail Drop DSCP transparency
Network security	SSH, SSL and SCP RADIUS and TACACS+ SNMPv3 crypto 802.1x 802.1x Accounting / MIB 802.1x w/ port security 802.1x w/Voice VLAN 802.1x Guest VLAN 802.1x VLAN assignment 802.1x MAC-Auth Bypass BPDU/Root Guard Port Security Private VALN Edge Storm Control Block unknown unicast and multicast IGMP Snooping IGMP Filter/Throttle
Management and Troubleshooting	Auto-MDOX TDR UDLD IP SLA Responder layer 2 / IP Traceroute SPAN RSPAN Express Setup Device Manager Network Assistant Smartports + Advisor Troubleshooting Advisor Drag-and-drop IOS Upgrade IP Address DHCP Autoinstall with saved configuration Configuration Replace DHCP Auto Image Upgrade DHCP Port Based Allocation Error Disable MIB
Environmental Ranges
Operating temperature up to 5000 ft (1500 m)	23ºF to 113ºF
Operating temperature up to 10,000 ft (3000 m)	23ºF to 104ºF
Short-term exception at sea level*	23ºF to 131ºF
Short-term exception up to 5000 feet (1500 m)*	23ºF to 122ºF
Short-term exception up to 10,000 feet (3000 m)*	23ºF to 113ºF
Short-term exception up to 13,000 feet (4000 m)*	23º to 104ºF
Storage temperature up to 15,000 feet (4573 m)	-13º to 158ºF
Operating altitude	Up to 10,000 feet
Storage altitude	Up to 13,000 feet
Operating relative humidity	10% to 95% noncondensing
Storage relative humidity	10% to 95% noncondensing
