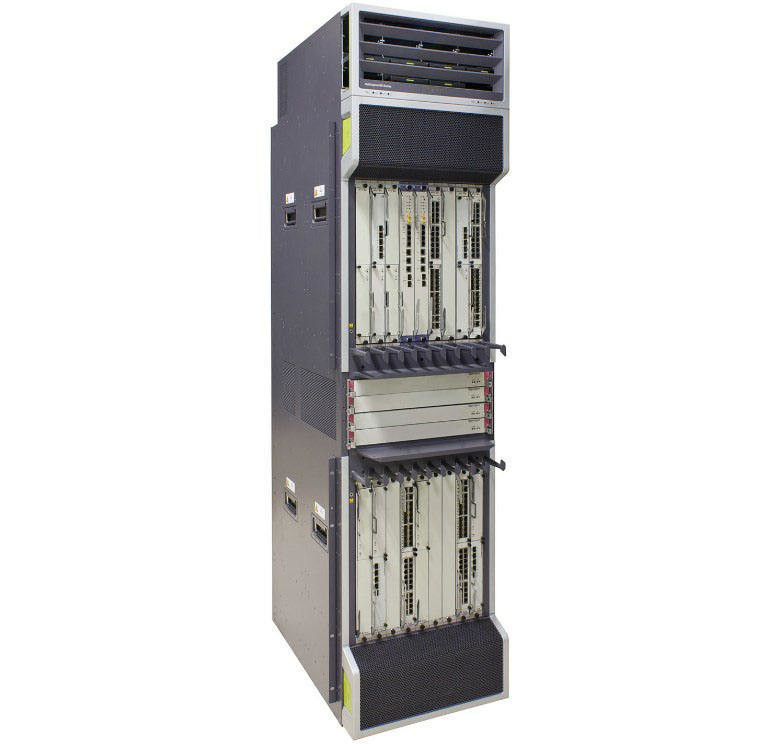

Customizable NE40E-X16A Integrated DC Chassis Components 2T Including 6 Fan Tray for HuaWei Enterprise Router CR5B0BKP1676

Brand Name:	/
Model Number:	CR5B0BKP0873
Price:	CN¥722.02/pieces 1-1 pieces

Detail Information

Product Description

Detail Information

Place of Origin:

Shanghai, China

Type:

Enterprise Router

Use:

Enterprise

Network:

Bluetooth, Wireless Lan, Wired LAN, ONVIF, SDK

Size:

Customized Size

Color:

Customizable

Suitable For:

Workstation, Laptop, Desktop

Product Description

Specification

Part Number	02351PJP
Model	CR5B0BKP1676
Description	NE40E-X16A Integrated DC Chassis Components (2T,Including 6 Fan Tray)
First supported version	V800R010C00SPC200
Technical Specifications
Height [mm]	1778 mm
Depth [mm]	946 mm
Wide [mm]	442 mm
Chassis height [U]	40U
Weight without packaging (full configuration) [kg(lb)]	[2T bundle] 461.3kg (1045.66lb)
Weight without packaging [kg(lb)]	184.1 kg (410.06 lb)
Typical power consumption (with configuration) [W]	9040 W (fully config with LPUF-480s) 12390 W (fully config with LPUI-1Ts) 22450 W (fully config with LPUI-2Ts)
Maximum power consumption (with configuration) [W]	13720 W (fully loaded with LPUF-480s) 18650 W (fully loaded with LPUI-1Ts) 28200 W (fully loaded with LPUI-2Ts)
Typical heat dissipation (with configuration) [BTU/hour]	29329.6 BTU/hour (fully config with LPUF-480s) 40198.4 BTU/hour (fully config with LPUI-1Ts) 72837.2 BTU/hour (fully config with LPUI-2Ts)
Power supply mode	DC
Input voltage range [V]	–40 V to –72 V
Rated input voltage [V]	–48 V/–60 V
Maximum input current [A]	63 A/single-module
Number of slots	22
Number of service board slots	16
Switching capacity [bps,bit/s]	81.92 Tbit/s(LPUI-2T)
Redundant Switch fabrics	3+1
Redundant fans	[2T bundle] 2 partitions; 3 assemblies/partition; each partition in support for proper fan operation in case of a single fan failure for a short period at 40°C (104°F)
Redundant MPUs	1:1
Redundant power supply	[2T bundle] 12+1
Noise at normal temperature (acoustic power) [dB(A)]	NEBS-compliance (< 78 dBA @ 27°C (80.6°F))
Maximum number of power chassis inputs	(8 channels/PEM)4 PEM=(2 channels/PM)4 PM*4 PEM=32 channels
Maximum input cable size	35 mm²/channel
Front-end circuit breaker/fuse	2 channels of 63 A/single-module [2T bundle] DC device: 13 PMs, with a total of 26 channels of 63 A
Long-term operating temperature [°C(°F)]	0°C to 45°C (32°F to 113°F)
Storage temperature [°C(°F)]	–40°C to +70°C (–40°F to +158 °F)
Short-term operating temperature [°C(°F)]	–5°C to +55°C (23°F to 131°F)
Restriction on the operating temperature variation rate [°C(°F)]	≤ 0.5°C/min (32.9°F/min), non-condensing
Long-term operating relative humidity [RH]	5% RH to 85% RH, non-condensing
Storage relative humidity [RH]	5% RH to 95% RH, non-condensing
Short-term operating relative humidity [RH]	5% RH to 95% RH, non-condensing
Storage altitude [m(ft.)]	< 5000 m (16404.2 ft.)
Long-term operating altitude [m(ft.)]	≤ 4000 m (13123.36 ft.) (From 1800 m to 4000 m [5905.51 ft. to 13123.36 ft.], the operating temperature of the device decreases by 1°C [1.8°F] for every 220 m [721.78 ft.] increase in altitude.)
MTBF [year]	22.33
MTTR [hour]	0.5
Availability	0.9999974444
