USR-G816 5G Multi Port Industrial Router Simply Ultrafast Speed Network Router

Cellular

Interface

Frequency

5G NR sub-6 GHz (3GPP Rel-16)

Band(NA/NSA):

n1/2/3/5/7/8/12/13/14/18/20/25/26/28/29/30/38/40/41/48/66/70/71/75/76/77/78/ 79;

4G LTE (CAT19 DL / CAT 18 UL)

LTE-FDD: B1/2/3/4/5/7/8/12/13/14/17/18/19/20/25/26/28/29/30/32/66/71;

LTE-TDD: B34/38/39/40/41/42/43/48;

LAA: B46;

3GWCDMA: B1/2/4/5/8/19

Maximum Transmission Data Rate

5G SA Sub-6: Max. 2.4Gbps (DL)/Max. 900Mbps (UL);

5G NSA Sub-6: Max. 3.4Gbps (DL)/Max. 550Mbps (UL)

LTE-FDD: Max. 1.6Gbps (DL)/Max. 200Mbps (UL)

WCDMA: Max. 42 (DL)/Max. 5.76 (UL)

Antennas

4 × SMA-K Connectors (Center PIN: SMA Female)

SIM Slot

2 x (3 V/1.8 V) mini-SIM(2FF) Push-push type slot (SIM Card 2 can be configured with built-in eSIM)

Ethernet Interface

WAN

1 x WAN port (can be configured as LAN) 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, supports auto MDI/MDIX crossover, Ethernet Isolation 1.5KV RMS

LAN

3 x RJ45 port, 10/100/1000 Mbps, supports auto MDI/MDIX crossover, Ethernet Isolation 1.5KV RMS

Indicators

PWR

red, always on after powered on

WORK

green, blinking every 1second when the router is ready and working properly

NET

Mobile network type LEDs

NET lights on after device is connected to the network. Green stands for 5G, green and red for 4G, and red for 3G

SIG

Mobile signal strength indication LED

Green represents excellent signal, two-color light represents good signal, red represents poor signal

WLAN

always solid on when WiFi is enabled and working properly

WAN

LED blinking When Connection established and data is being transferred over this port.

LAN

LED blinking When Connection established and data is being transferred over this port.

Wi-Fi Interface

Antennas

2 × SMA-K Connectors (Center PIN: SMA Female)

MIMO

2×2

Standards

Concurrent dual-band 802.11a/n/ac (5.8GHz) and 802.11b/g/n (2.4GHz)

Modes

AP/AP+STA/AP+WDS repeater

Data speed

Up to 1733Mbps wireless operation rate at 5.8GHz

Security

Wi-Fi security with WPA-PSK, WPA2-PSK, Mixed WPA/WPA2-PSK, WPA2-PSK+CCMP

Transmission distance

200 meters by line of sight. Actual transmission distance depends on environment of the site.

GNSS(Optional)

Antenna

1 × SMA-K Connector (Center PIN: SMA Female)

Technology

GPS, GLONASS, BeiDou, Galileo

Protocol

NMEA 0183

Power Supply

Adapter

DC 12V/2A

Connector

DC Power Jack Barrel Type Female 5.5*2.1mm Round socket or industrial terminal block(V+,V-),reverse polarity protection

Input voltage range

DC9-36V

Power consumption

Average current 630mA@12V and the maximum current 1.6A@12V

Serial Interface

Numbers

1 × RS485/RS232

Connector

Terminal block

Baud Rate(bps)

1200,2400,4800,9600,19200,38400,57600,115200,230400,460800(only 485)

Signal definition

RS232: TXD, RXD, GND RS485: A, B, GND

Data bits

7,8

Stop bits

1,2

Parity

NONE, ODD, EVEN

Physical Characteristics

Casing material

Metal shell, ingressprotection IP30

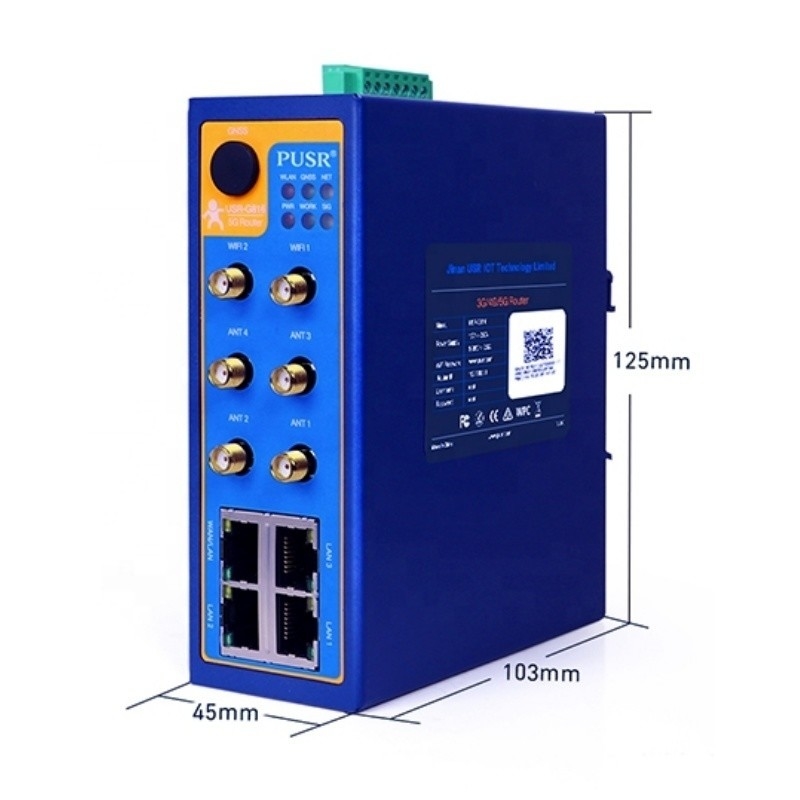

Dimensions

125.0*103.0*45.0mm (L*W*H, antenna pedestal, terminal block and DIN Rail are not included)

Installation

Desktop, wall mounting and DIN-rail mounting

EMC

Static IEC61000-4-2, level 3

Pulsed Electric Field IEC61000-4-4, level 3

Surge IEC61000-4-5, level 3

Operating Temperature

-35℃ ~ +75℃

Storage Temperature

-40℃~+125℃ (Non-condensing)

Relative Humidity 0

5%~95% (Non-condensing)

Others

Reload button

1 × Reload

TBD

Debug interface (TTL Level)

Ground protection

Screw

Built-in

Watchdog

Software

Network Protocols

PPP, PPPoE, TCP, UDP, DHCP, ICMP, NAT, HTTP, DNS, ARP, NTP, Telnet, SSH, DDNS, etc.

VPN

LT2P, PPTP

Security

Access Control, DMZ, Port Forwarding, SYN-Flood Protection, Filtering (IP& MAC & Domain)

Management

Web UI, PUSR cloud

Reliability

WAN Failover, Dual SIM Backup

Serial port

Transparent (TCP Client/Server, UDP), Modbus Gateway (Modbus RTU to Modbus TCP)
