USR-G806w Network Router 1000Mbps 4G Cellular Router WiFi 802.11g

MOQ:	2 pieces
Price:	CN¥1,032.73/pieces >=2 pieces

Detail Information

Product Description

Detail Information

Max. Lan Data Rate:

1000Mbps

With Modem Function:

Yes

Standards And Protocols:

Wi-Fi 802.11g

Wi-fi Supported Frequency:

2.4G & 5G

Supports Wds:

Yes

Supports Wps:

Yes

Wi-fi Transmission Standard:

802.11b

Wired Transfer Rate:

10/100/1000Mbps

2.4g Wi-fi Transmission Rate:

600Mbps

Encryption Type:

WPA2-PSK, WPA2, WPA3, WPA2-Enterprise, WPA-PSK, WPA, WEP, WPA-Enterprise, WPA2-Personal, WPA-Personal, WPA3-Personal

Private Mold:

Products Status:

New

Type:

Wireless

Application:

Home

Function:

Voip, SDK Available, FireWall, VPN

Lan Ports:

Wan Ports:

1 X10/100/1000Mbps

Brand Name:

Place Of Origin:

Shanghai, China

5g Wi-fi Transmission Rate:

1000Mbps

Product Name:

Routers

MOQ:

1PCS

Warranty:

1year

Lead Time:

1-3 Working Days

Package:

Original Packaging

Highlight:

USR-G806w Network Router

1000Mbps 4G Cellular Router

USR-G806w 4G Cellular Router

Product Description

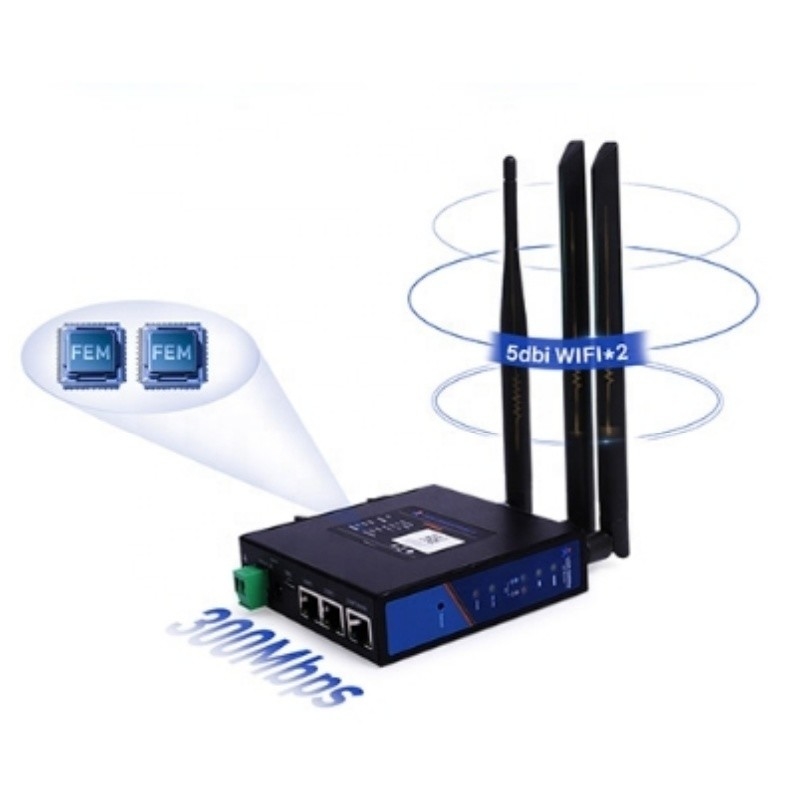

New Original USR-G806w Better Wi-Fi Performance 4G Cellular Router

Product Description

Cellular Interface	Frequency	-E	-AU	-G
		TDD-LTE:B38/40/41	TDD-LTE:B40	TDD-LTE:B34/38/39/40/41
		FDD-LTE:B1/3/7/8/20/28A	FDD-LTE:B1/2/3/5/7/8/28	FDD-LTE: B1/2/3/4/5/7/8/12/13/18/19/20/25/26/28/66
		WCDMA:B1/8	WCDMA:B1/2/4/5/8	WCDMA:B1/2/4/5/6/8/19
		GSM/EDGE:B3/8	GSM/EDGE:B2/3/5/8	GSM/EDGE:B2/3/5/8
	Antenna	1 x SMA-K
	SIM card	1 x (3 V & 1.8 V) Standard 4FF SIM
Ethernet	WAN	1 x WAN port (can be configured to LAN) 10/100 Mbps, compliance with IEEE 802.3, supports auto MDI/MDIX,1.5KV network isolation transformer protection
	LAN	1 x LAN port, 10/100 Mbps, compliance with IEEE 802.3, IEEE 802.3u standards, supports auto MDI/MDIX,1.5KV network isolation transformer protection
Indicators	PWR	red,always on after powered on
	WIFI	green,always solid on when WiFi is enabled and working properly
	2/3/4G mode indicator	2G led is on after connected to 2G network
		3G led is on after connected to 3G network
		Both leds is on after connected to 4G network
	SIG	Signal strength:2 LED is solid on,strongest signal
Wi-Fi	Standards & Frequency	IEEE 802.11b/g/n, 2.4GHz, AP/STA/Repeater mode
	Data speed	300Mbps
	Antenna	2 x RP-SMA-K
	MIMO	2×2
	Transmission distance	500 meters by line of sight.Actual transmission distance depends on environment of the site.
	WiFi users	Up to 20 simultaneous connections
Power Supply	Adaptor	DC 12V/1A
	Connector	DC Power Jack Barrel Type Female 5.5*2.1mm Round socket or 2 PIN industrial terminal block,reverse polarity protection
	Input voltage	DC 9-36V
	Power consumption	Average 260mA/12V
Physical Characteristics	Casing material	Metal shell,IP30
	Dimensions	104.0102.028.0 (LWH, antenna pedestal, terminal block and DIN Rail are not included)
	Installation	Panel mounting, DIN-Rail mounting
	EMC	Static IEC61000-4-2, level 3
		Pulsed Electric Field IEC61000-4-4, level 3
		Surge IEC61000-4-5, level 3
	Operating temperature	-20℃~+70℃
	Storage temperature	-40℃~+125℃(non-condensing)
	Operating humidity	5%~95%(non-condensing)
Others	Reload	Pinhole reset button
	TBD	Debug interface (TTL Level)
	Ground protection	Screw
	Approvals	CE, WPC, RCM,ROHS, WEEE
