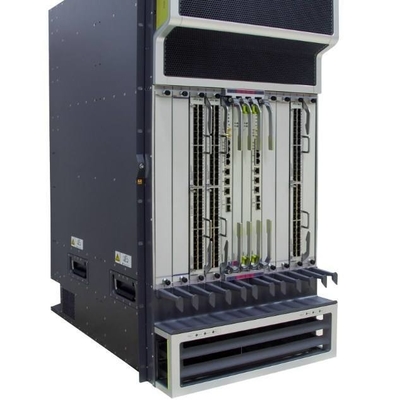

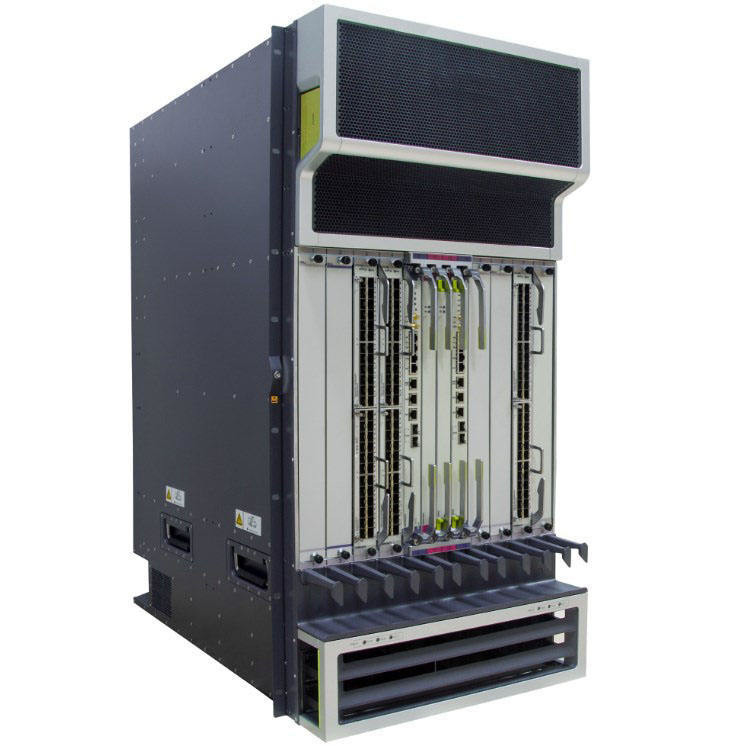

02351TWY Customized Size NE40E-X8A CR5B0BKP0875 Integrated Chassis HVDC Components 2T Including 3 Fan Tray Enterprise Router

Name: 02351TWY Customized Size NE40E-X8A CR5B0BKP0875 Integrated Chassis HVDC Components 2T Including 3 Fan Tray Enterprise Router
Brand: Shanghai Apying Technology Co., Ltd.
SKU: CR5B0BKP0875
Price: 1.00 USD
Availability: InStock

Brand Name:	/
Model Number:	CR5B0BKP0875
Price:	CN¥722.02/pieces 1-1 pieces

Detail Information

Product Description

Detail Information

Place of Origin:

Shanghai, China

Type:

Enterprise Router

Use:

Enterprise

Network:

Bluetooth, Wireless Lan, Wired LAN, ONVIF, SDK

Size:

Customized Size

Color:

Customizable

Suitable For:

Workstation, Laptop, Desktop

Product Description

Specification

Part Number	02351TWY
Model	CR5B0BKP0875
Description	NE40E-X8A Integrated Chassis HVDC Components(2T, Including 3 Fan Tray)
First supported version	V800R010C10SPC500
Technical Specifications
Height [mm]	930 mm
Depth [mm]	941 mm
Wide [mm]	442 mm
Chassis height [U]	21U
Weight without packaging (full configuration) [kg(lb)]	[400G bundle] 184.3 kg (406.31 lb) [1T bundle] 206.5 kg (455.25 lb) [2T bundle] 234.4 kg (516.76 lb)
Weight without packaging [kg(lb)]	79.9 kg (176.15 lb)
Typical power consumption (with configuration) [W]	4110 W (fully configured with LPUF-240s) 4770 W (fully configured with LPUF-480s) 6520 W (fully configured with LPUI-1Ts) 11100 W (fully configured with LPUI-2Ts)
Maximum power consumption (with configuration) [W]	6080 W (fully loaded with LPUF-240s) 7110 W (fully loaded with LPUF-480s) 9500 W (fully loaded with LPUI-1Ts) 14000 W (fully loaded with LPUI-2Ts)
Typical heat dissipation (with configuration) [BTU/hour]	13334.6 BTU/hour (fully configured with LPUF-240s) 15475.9 BTU/hour (fully configured with LPUF-480s) 21153.6 BTU/hour (fully configured with LPUI-1Ts) 36013.1 BTU/hour (fully configured with LPUI-2Ts)
Power supply mode	HVDC
Input voltage range [V]	192 to 288V,264 to 400V
Rated input voltage [V]	240V/380V
Maximum input current [A]	14 A/single-module
Number of slots	12
Number of service board slots	8
Switching capacity [bps,bit/s]	51.2 Tbit/s (LPUI-2T)
Redundant Switch fabrics	3+1
Redundant fans	[400G bundle] 2 assemblies in support for proper fan operation in case of a single fan failure for a short period at 40°C (104°F) [1T bundle] 3 assemblies in support for proper fan operation in case of a single fan failure for a short period at 40°C (104°F) [2T bundle] 3 assemblies in support for proper fan operation in case of a single fan failure for a short period at 40°C (104°F)
Redundant MPUs	1:1
Redundant power supply	[400G bundle] 3+3 [1T bundle] 4+1 [2T bundle] 5+1
Noise at normal temperature (acoustic power) [dB(A)]	NEBS-compliance (< 78 dBA @ 27°C (80.6°F))
Maximum number of power chassis inputs	(4 channels/PEM)2 PEMs = (1 channel/PM)4 PMs*2 PEMs = 8 channels
Maximum input cable size	2.5 mm²
Front-end circuit breaker/fuse	14 A/single-module [400G bundle] HVDC device: 6 PMs, with a total of 6 channels of 14 A [1T bundle] HVDC device: 8 PMs, with a total of 8 channels of 14 A [2T bundle] HVDC device: 8 PMs, with a total of 8 channels of 14 A
Long-term operating temperature [°C(°F)]	0°C to 45°C (32°F to 113°F)
Storage temperature [°C(°F)]	–40°C to +70°C (–40°F to +158 °F)
Short-term operating temperature [°C(°F)]	–5°C to +55°C (23°F to 131°F)
Restriction on the operating temperature variation rate [°C(°F)]	≤ 0.5°C/min (32.9°F/min), non-condensing
Long-term operating relative humidity [RH]	5% RH to 85% RH, non-condensing
Storage relative humidity [RH]	5% RH to 95% RH, non-condensing
Short-term operating relative humidity [RH]	5% RH to 95% RH, non-condensing
Storage altitude [m(ft.)]	< 5000 m (16404.2 ft.)
Long-term operating altitude [m(ft.)]	≤ 4000 m (13123.36 ft.) (From 1800 m to 4000 m [5905.51 ft. to 13123.36 ft.], the operating temperature of the device decreases by 1°C [1.8°F] for every 220 m [721.78 ft.] increase in altitude.)
MTBF [year]	22.32
MTTR [hour]	0.5
Availability	0.999997443
