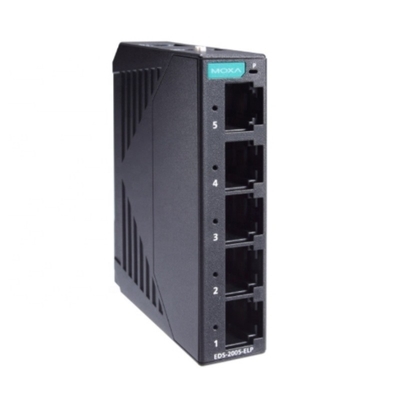

Metal Housing 5-port Entry-level Unmanaged Ethernet Switches EDS-2005-EL Series Durable Design NO Private Mold

Price:	CN¥1,790.61/pieces >=1 pieces

Detail Information

Private Mold:

Products Status:

Stock

Ports:

≤ 8

Transmission Rate:

10/100/1000Mbps

Function:

LACP, POE, QoS, SNMP

Communication Mode:

Full-Duplex & Half-Duplex

Switch Capacity:

Brand Name:

Model Number:

EDS-2005-EL Series

Place Of Origin:

Shanghai, China

Suitable For:

Workstation, Laptop, Desktop

Condition:

Original 100%

Warranty:

1year

MOQ:

1 Piece

Lead Time:

1-2 Days

Product Description

Features and Benefits 10/100BaseT(X) (RJ45 connector) Compact size for easy installation QoS supported to process critical data in heavy traffic IP40-rated metal housing -40 to 75°C wide operating temperature range (-T models) Compliant with PROFINET Conformance Class A
Ethernet interface
10/100BaseT(X) Ports (RJ45 connector)	5 Full/Half duplex mode Auto MDI/MDI-X connection Auto negotiation speed
Standards	IEEE 802.3 for 10BaseT IEEE 802.1p for Class of Service IEEE 802.3u for 100BaseT(X) IEEE 802.3x for flow control
Switch properties
Processing Type	Store and Forward
MAC Table Size	2 K
Packet Buffer Size	768 kbits
power parameters
Connection	1 removable 2-contact terminal block(s)
Input Current	0.039 A 24 VDC
Input Voltage	12/24/48 VDC
Operating Voltage	9.6 to 60 VDC
Overload Current Protection	Supported
Reverse Polarity Protection	Supported
physical characteristics
Dimensions	18 x 81 x 65 mm (0.7 x 3.19 x 2.56 in)
Installation	DIN-rail mounting Wall mounting (with optional kit)
Weight	113.5 g (0.25 lb)
Housing	Metal
