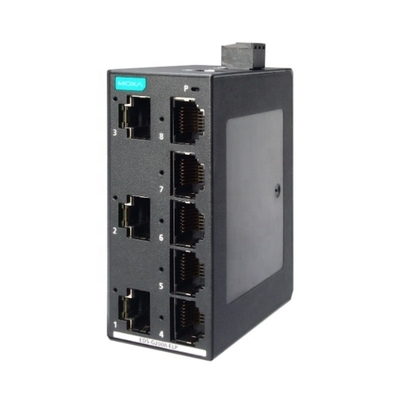

EDS-G2008-ELP Series 8-port Entry-level Unmanaged Full Gigabit Ethernet Switches with Plastic Housing

MOQ:	2 pieces
Price:	CN¥924.19/pieces >=2 pieces

Detail Information

Private Mold:

Products Status:

Stock

Ports:

≤ 8

Transmission Rate:

10/100/1000Mbps

Function:

POE

Communication Mode:

Full-Duplex

Switch Capacity:

Brand Name:

Place Of Origin:

Shanghai, China

Product Name:

Switch

Condition:

Brand-new

Warranty:

5 Years

MOQ:

1 Piece

Product Description

Features and Benefits Full Gigabit Ethernet ports Compact size for easy installation QoS supported to process critical data in heavy traffic IP40-rated plastic housing
Ethernet interface
10/100/1000BaseT(X) Ports (RJ45 connector)	8 Full/Half duplex mode Auto MDI/MDI-X connection Auto negotiation speed
Standards	IEEE 802.3 for 10BaseT IEEE 802.3u for 100BaseT(X) IEEE 802.3ab for 1000BaseT(X) IEEE 802.3x for flow control IEEE 802.1p for Class of Service
Switch Properties
Processing Type	Store and Forward
MAC Table Size	4 K
Packet Buffer Size	1.5 Mbits
DIP Switch Configuration
Ethernet Interface	Quality of Service (QoS), Broadcast Storm Protection (BSP)
Power parameters
Connection	1 removable 3-contact terminal block(s)
Input Current	0.33 A (max.)
Input Voltage	12/24/48 VDC
Operating Voltage	9.6 to 60 VDC
Overload Current Protection	Supported
Reverse Polarity Protection	Supported
Physical Characteristics
Dimensions	36 x 81 x 65 mm (1.42 x 3.19 x 2.56 in)
Installation	DIN-rail mounting Wall mounting (with optional kit)
Housing	Plastic
Weight	140 g (0.31 lb)
