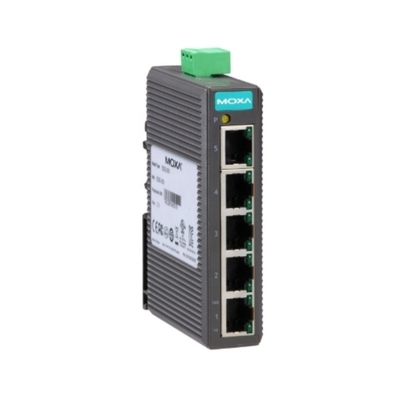

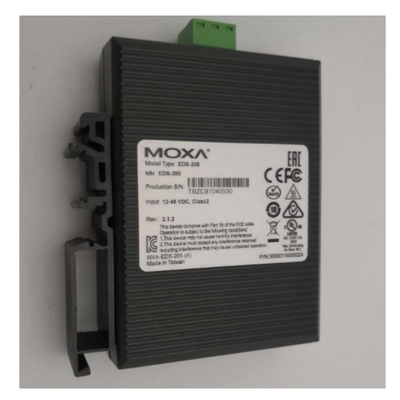

Stock 10/100/1000Mbps Entry-level Unmanaged Ethernet Switches EDS-205 5-port with speed and Fast Transmission Rate

MOQ:	2 pieces
Price:	CN¥851.99/pieces >=2 pieces

Detail Information

Private Mold:

Products Status:

Stock

Ports:

≤ 8

Transmission Rate:

10/100/1000Mbps

Function:

POE

Communication Mode:

Full-Duplex & Half-Duplex

Switch Capacity:

Brand Name:

Place Of Origin:

Shanghai, China

Product Name:

Switch

Condition:

100% Orginal

MOQ:

1pc

Warranty:

5 Years

Highlight:

Product Description

Features and Benefits
10/100BaseT(X) (RJ45 connector) IEEE802.3/802.3u/802.3x support Broadcast storm protection DIN-rail mounting ability -10 to 60°C operating temperature range
Ethernet Interface
Standards	IEEE 802.3 for 10BaseT IEEE 802.3u for 100BaseT(X) IEEE 802.3x for flow control
10/100BaseT(X) Ports (RJ45 connector)	Full/Half duplex mode Auto MDI/MDI-X connection Auto negotiation speed
Switch properties
Processing Type	Store and Forward
MAC Table Size	2 K
Packet Buffer Size	512 kbits
Power Parameters
Input Voltage	12 to 48 VDC
Input Current	0.12 A @ 24 VDC
Connection	1 removable 3-contact terminal block(s)
Overload Current Protection	1.1 A @ 24 VDC
Reverse Polarity Protection	Supported
Physical Characteristics
Housing	Plastic
IP Rating	IP30
Dimensions	24.9 x 100 x 86.5 mm (0.98 x 3.94 x 3.41 in)
Weight	135 g (0.30 lb)
Installation	DIN-rail mounting
