Original WiFi 6E Mesh MX21 Pro AXE5700 Whole Home Mesh Network Router

Price:	CN¥1,898.18/pieces >=1 pieces

Detail Information

Product Description

Detail Information

Max. Lan Data Rate:

1000Mbps

With Modem Function:

Standards And Protocols:

WiFi 802.11 Ax

Wi-fi Supported Frequency:

2.4G & 5G

Supports Wds:

Supports Wps:

Yes

Wi-fi Transmission Standard:

WiFi 802.11 Ax

Wired Transfer Rate:

1000Mbps

2.4g Wi-fi Transmission Rate:

300 Mbps

Encryption Type:

WPA-PSK

Products Status:

New

Type:

Wireless

Application:

MINI WIFI

Function:

Voip, FireWall, QoS, VPN, SDK Available

Lan Ports:

Brand Name:

Place Of Origin:

Shanghai, China

5g Wi-fi Transmission Rate:

1000Mbps

Product Name:

Routers

Condition:

100% Original Brand

Warranty:

1 Year

Highlight:

WiFi 6E Mesh MX21 Pro

AXE5700 Whole Home Mesh

MX21 Pro AXE5700

Product Description

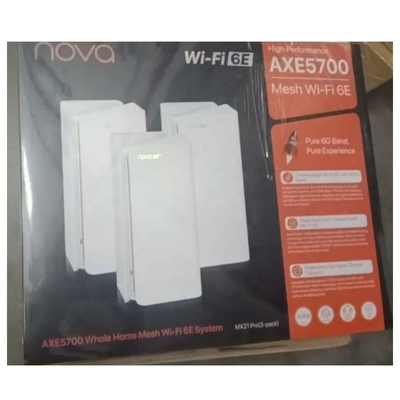

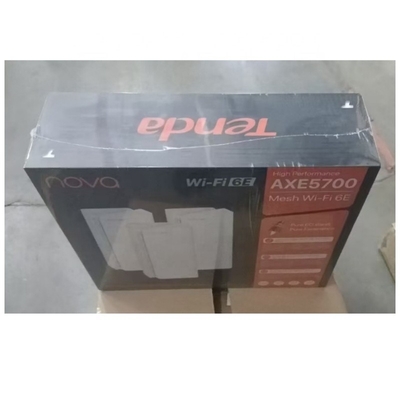

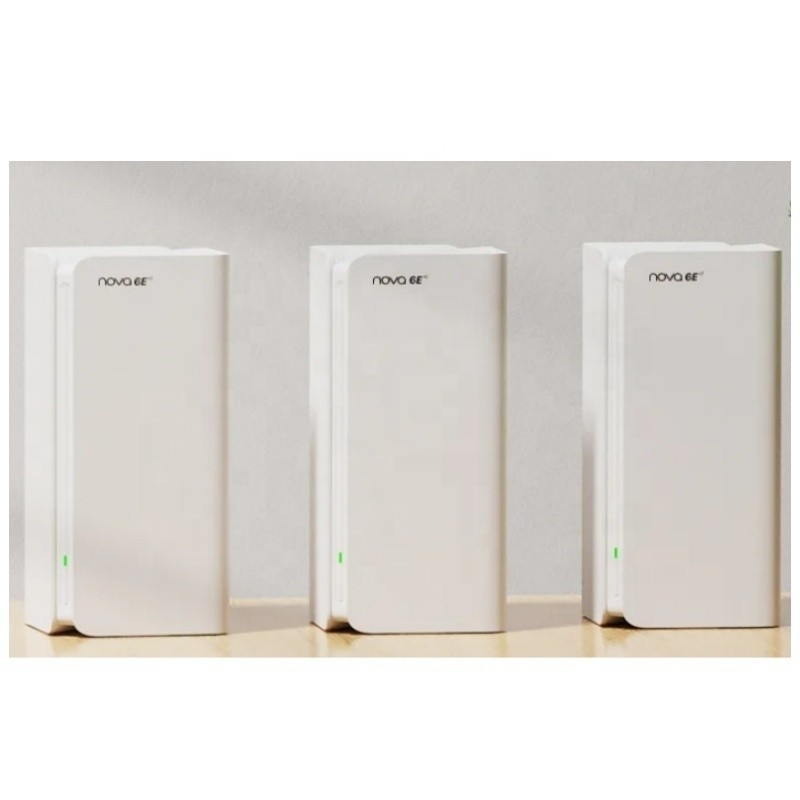

New Original MX21 Pro AXE5700 Whole Home Mesh Wi-Fi 6E System router a pack of three pieces

Product Description

Specification

Hardware
Standard&Protocol	IEEE802.11a/b/g/n/ac/ax
Standard&Protocol		IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
Ethernet Interface	3 x 10/100/1000Mbps RJ45 ports per node
Antenna	7 x Built-in Antennas
Button	1 x Reset Button,1 x MESH Button
Power	Input: AC 100-240V~50/60Hz
Power		Output:DC 12V=2.5A
Dimension	105x105x220mm (4.13 x4.13 x 8.66 in)
LED Indicator	1 x LED
Wireless
Wireless Standard	6GHz: IEEE 802.11ax
		5GHz: IEEE 802.11ax/ac/n/a
		2.4GHz: IEEE 802.11ax/n/b/g
Wireless roaming	Comply with IEEE802.11k/v/r
Mesh network Standard	Easymesh
Rate	6GHz: 2402Mbps (802.11ax, HE160)
		5GHz: 2402Mbps (802.11ax, HE160)
		2.4GHz: 861Mbps (802.11ax)
Frequency	2.4GHz & 5GHz & 6GHz
Transmission Power	CE:
		<20dBm(2.4G)
		<23dBm(5G)
		<23dBm(6G)
Basic Features	MU-MIMO
		OFDMA
		1024-QAM
		Beamforming
		AP Steering
		Band Steering
Wireless Security	WPA2-PSK
Wireless Security		WPA3-SAE/WAP2-PSK
Software
Operating Mode	Wireless Router Mode
Operating Mode		AP Mode
Internet Connection Type	PPPoE, Dynamic IP, Static IP,PPPoE(Russia), PPTP(Russia), L2TP(Russia)
DHCP Server	DHCP Server
DHCP Server		DHCP Client List
Virtual Server	Port Forwarding, UPnP
Parental Control	Client Filter
Firewall	CMP Flood Attack Defense
		TCP Flood Attack Defense
		UDP Flood Attack Defense
		Ignore Ping Packet From WAN Port
VPN	PPTP/L2TP/IPsec Pass Through
DNS	Support DynDNS, No-ip
Special Features	Speed Test
Special Features		Monthly Report
Others	IPTV
		IPv6
		Tri Frequency In One
		Bandwidth Control
		Guest Network
		Static Routing
		System Log
		Remote Web Management
		MAC Clone
		Backup & Restore Configurations
		Support Automatic Access Detection
		Firmware Upgrade Online
Others
Operation Temperature	0 ~ 40 ℃
Storage Temperature	-40 ~ 70 ℃
Operating Humidity	10%~90% RH non-condensing
Storage Humidity	5%~90% RH non-condensing
APP installation	Available in iOS 8.0 or later, Android 4.0 or later
Certification	CE
		RoHS
		FCC
Package Contents	Mesh21XEP x 3, 12/2.5A Power adapter x 3, QIG x 1, RJ45 Gigabit Ethernet cable x 1
