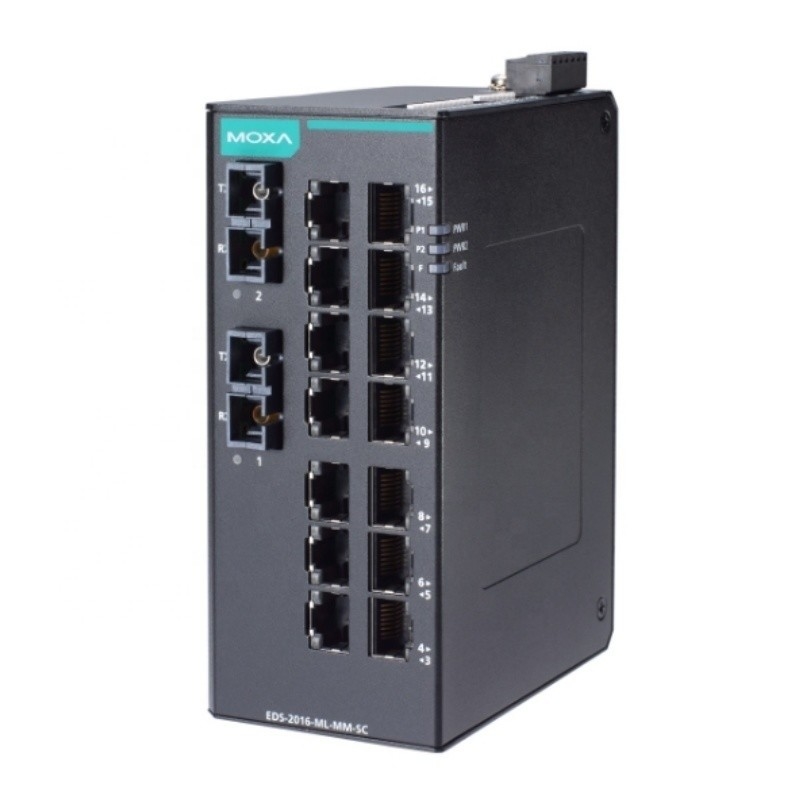

New Original EDS-2016-ML Series 16-port unmanaged Ethernet switches
Product Description
Features and Benefits
10/100BaseT(X) (RJ45 connector), 100BaseFX (multi/single-mode, SC or ST connector)
QoS supported to process critical data in heavy traffic
Relay output warning for power failure and port break alarm
IP30-rated metal housing
Redundant dual 12/24/48 VDC power inputs
-40 to 75°C operating temperature range (-T model)
Ethernet Interface
10/100BaseT(X) Ports (RJ45 connector)
EDS-2016-ML(-T): 16
EDS-2016-ML-MM-SC(-T): 14
EDS-2016-ML-MM-ST(-T): 14
EDS-2016-ML-SS-SC(-T): 14
Auto negotiation speed
Full/Half duplex mode
Auto MDI/MDI-X connection
100BaseFX Ports (multi-mode SC connector)
EDS-2016-ML-MM-SC(-T): 2
100BaseFX Ports (multi-mode ST connector)
EDS-2016-ML-MM-ST(-T): 2
100BaseFX Ports (single-mode SC connector)
EDS-2016-ML-SS-SC(-T): 2
Standards
IEEE 802.3 for 10BaseT
IEEE 802.3u for 100BaseT(X)
IEEE 802.3x for flow control
IEEE 802.1p for Class of Service
Switch properties
MAC Table Size
8 K
Packet Buffer Size
2 Mbits
Processing Type
Store and Forward
Power Parameters
Connection
1 removable 6-contact terminal block(s)
Input Current
EDS-2016-ML: 0.088 A @ 24 VDC
EDS-2016-ML-MM-SC: 0.149 A @ 24 VDC
EDS-2016-ML-MM-ST: 0.152 A @ 24 VDC
EDS-2016-ML-SS-SC: 0.163 A @ 24 VDC
Input Voltage
12/24/48 VDC
Redundant dual inputs
Operating Voltage
9.6 to 60 VDC
Overload Current Protection
Supported
Reverse Polarity Protection
Supported
Physical Characteristics
Housing
Metal
IP Rating
IP30
Dimensions
Non-fiber models: 36 x 135 x 95 mm (1.41 x 5.31 x 3.74 in)
Fiber models: 58 x 135 x 95 mm (2.28 x 5.31 x 3.74 in)
Weight
Non-fiber models: 486 g (1.07 lb)
Fiber models: 648 g (1.43 lb)
