Original USR-G805 Network Router Small And Economical Industrial 4G Cellular Router

MOQ:	2 pieces
Price:	CN¥1,032.73/pieces >=2 pieces

Detail Information

Product Description

Detail Information

Max. Lan Data Rate:

1000Mbps

With Modem Function:

Yes

Standards And Protocols:

Wi-Fi 802.11g

Wi-fi Supported Frequency:

2.4G & 5G

Supports Wds:

Yes

Supports Wps:

Yes

Wi-fi Transmission Standard:

802.11b

Wired Transfer Rate:

10/100/1000Mbps

2.4g Wi-fi Transmission Rate:

600Mbps

Encryption Type:

WPA2-PSK, WPA2, WPA3, WPA2-Enterprise, WPA-PSK, WPA, WEP, WPA-Enterprise, WPA2-Personal, WPA-Personal, WPA3-Personal

Private Mold:

Products Status:

New

Type:

Wireless

Application:

Home

Function:

Voip, SDK Available, FireWall, VPN

Lan Ports:

Wan Ports:

1 X10/100/1000Mbps

Brand Name:

Place Of Origin:

Shanghai, China

5g Wi-fi Transmission Rate:

1000Mbps

Product Name:

Routers

MOQ:

1PCS

Warranty:

1year

Lead Time:

1-3 Working Days

Package:

Original Packaging

Highlight:

USR-G805 Network Router

Economical Industrial 4G Cellular Router

USR-G805 Industrial 4G Cellular Router

Product Description

New Original USR-G805 small and economical 4G industrial cellular router

Product Description

Cellular interface	Antenna	1 × SMA-K
Cellular interface	SIM card	1 x(3 V/1.8 V)Standard 2FF SIM, drawer-type sim card slots
Ethernet	NO.	1 × LAN
Ethernet	Spec.	RJ45 connector:10/100 Mbps, compliance with IEEE 802.3, IEEE 802.3u standards, supports auto MDI/MDIX
Indicators	POWER	always on after powered on
	WORK	blinking when the router is ready and working properly
	NET	2/3/4G mode indicator:2G-red,3G-blue,4G-purple
	SIG	Signal strength:weak-red,medium-blue,strong-purple
Power supply	Adaptor	DC 12V/1A
	Connector	DC Power Jack Barrel Type Female 5.5*2.1mm Round socket or 2 PIN industrial terminal block,reverse polarity protection
	Input voltage	DC 9-36V
	Rated power consumption	3.5W
Physical	Housing	Metal shell,IP30

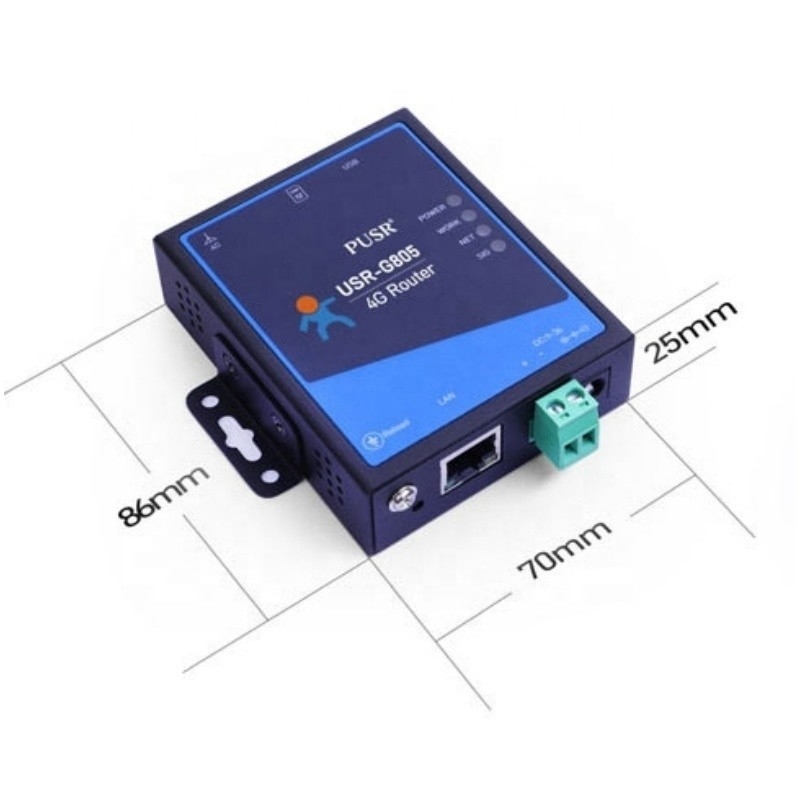

	Dimensions	86.0mm * 70.0mm* 25.0mm

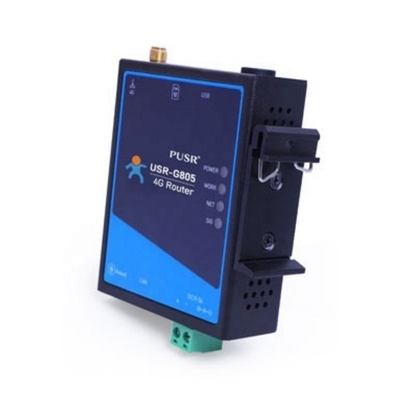

	Installation method	Panel mounting, DIN-Rail mounting,desktop
	Operating temperature	-20℃~70℃
	Storage temperature	-40℃~+125℃
	Operating humidity	5%~95%RH(non-condensing)
Others	Reload	Pinhole reset button
Others	USB	Firmware upgrading
