Original C9300-24U-A Cisco Catalyst 9300 Series 24 Port UPOE Network Switch with 830W PoE Power and 208 Gbps Switching Capacity

Original C9300-24U-A Cisco Catalyst 9300 Series 24 Port UPOE Network Switch with 830W PoE Power and 208 Gbps Switching Capacity

Brand Name: /
Model Number: C9300-24U-A
MOQ: 2
Price: CN¥9,533.05-10,648.03
Detail Information
Place of Origin:
Shanghai, China
Communication Mode:
Full-Duplex
Transmission Rate:
Other
Ports:
24
Total Copper Ports:
24 UPOE
AC Power Supply:
1100W AC
PoE Power:
830W
Switching Capacity:
208 Gbps
Stacking Bandwidth:
480 Gbps
MAC Addresses:
32,000
IPv4 Routes:
32,000
IPv6 Routes:
16,000
Packet Buffer:
16 MB
DRAM:
8 GB
Flash:
16 GB
Forwarding Rate:
154.76 Mpps
Dimensions:
1.73 X 17.5 X 17.5 Inches
Weight:
16.33 Pounds
Highlight:

Cisco Catalyst 9300 24-port switch

,

managed network switch with warranty

,

C9300-24U-A networking switch

Product Description
Product Description
Part Number
C9300-24U-A
Product Description
Catalyst 9300 24-port UPOE, Network Advantage
Total 10/100/1000 or Multigigabit copper ports
24 UPOE
Default AC power supply
1100W AC
Available PoE power
830W
StackWise-480
Yes
StackPower
Yes
Default power supply
PWR-C1-1100WAC
Switching capacity
208 Gbps on 24-port Gigabit Ethernet model
Stacking bandwidth
480 Gbps
Total number of MAC addresses
32,000
Total number of IPv4 routes (ARP plus learned routes)
32,000 (24,000 direct routes and 8000 indirect routes)
IPv4 routing entries
32,000
IPv6 routing entries
16,000
Multicast routing scale
8000
QoS scale entries
5120
ACL scale entries
5120
Packet buffer per SKU
16 MB buffer for 24- or 48-port Gigabit Ethernet models
FNF entries
64,000 flow on 24- and 48-port Gigabit Ethernet models
DRAM
8 GB
Flash
16 GB
VLAN IDs
4000
Total Switched Virtual Interfaces (SVIs)
2000
Jumbo frames
9198 bytes
Total routed ports per 9300 Series stack
208
Wireless bandwidth per switch
Up to 48 Gbps on 24-port Gigabit Ethernet model
Forwarding rate
154.76 Mpps
Dimensions (H x W x D)
1.73 x 17.5 x 17.5 Inches
Weight
16.33 Pounds
Mean time between failures (hours)
299,000
Contact Me

Don't hesitate to contact us for best prices !

Sincerely hope to start a good cooperation with you soon !



Name

Jack Long
WhatsApp 008613310122788
Wechat/Tel 008613310122788

Original C9300-24U-A Cisco Catalyst 9300 Series 24 Port UPOE Network Switch with 830W PoE Power and 208 Gbps Switching Capacity 0      Original C9300-24U-A Cisco Catalyst 9300 Series 24 Port UPOE Network Switch with 830W PoE Power and 208 Gbps Switching Capacity 2

Packaging & Shipping

Fast delivery

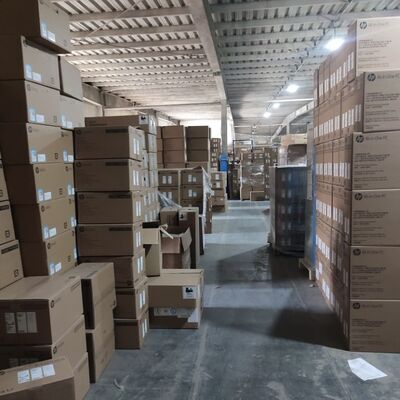

Two large warehouses place products in stock for sale
