S5735-L48PN4XE-A-V2 48 Ports 10GE SFP+ 828W PoE Network Switch for Enterprise Data Centers

Name: S5735-L48PN4XE-A-V2 48 Ports 10GE SFP+ 828W PoE Network Switch for Enterprise Data Centers
Brand: Beijing Hui Tong High Tech Limited.
SKU: S5735-L48PN4XE-A-V2
Price: 1.00 USD
Availability: InStock

Brand Name:	/
Model Number:	S5735-L48PN4XE-A-V2
MOQ:	2
Price:	$1,736-1,826

Detail Information

Product Description

Detail Information

Place of Origin:

Shanghai, China

Communication Mode:

Full-Duplex & Half-Duplex

Switch Capacity:

Transmission Rate:

10/100/1000Mbps

Function:

LACP, POE, QoS, SNMP

Ports:

≥ 48

Private Mold:

Products Status:

Stock

Size:

Customized Size

Color:

Customizable

Suitable For:

Workstation, Laptop, Desktop

Highlight:

48 Ports Network Switch

10GE SFP+ Ethernet Switch

828W PoE PoE Switch

Product Description

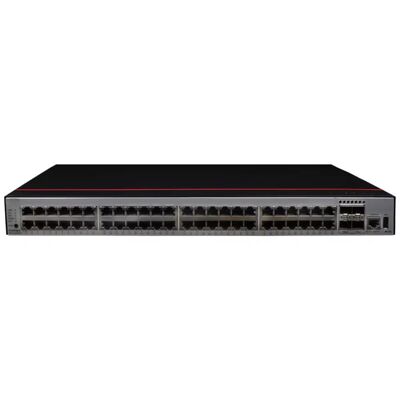

S5735-L48PN4XE-A-V2 Network Switch

The S5735-L48PN4XE-A-V2 is a high-performance enterprise networking switch featuring 48 multi-speed Ethernet ports (10M/100M/1G/2.5G BASE-T) with PoE+ support, 4×10GE SFP+ uplink ports, and 2×12GE stack ports. Designed for modern enterprise environments and data centers, this switch delivers reliable, scalable connectivity with 828W PoE budget and dual AC power supply capability.

Technical Specifications

Product Code	S5735-L48PN4XE-A-V2
Dimensions without packaging (H × W × D)	Basic: 43.6 mm × 442.0 mm × 420.0 mm (1.72 in. × 17.40 in. × 16.54 in.) Maximum: 43.6 mm × 442.0 mm × 446.0 mm (1.72 in. × 17.40 in. × 17.56 in.)
Dimensions with packaging (H × W × D)	185.0 mm × 650.0 mm × 550.0 mm (7.28 in. × 25.59 in. × 21.65 in.)
Chassis height	1 U
Chassis material	Metal
Weight without packaging	6.51 kg (14.35 lb)
Weight with packaging	8.29 kg (18.28 lb)
Typical power consumption	82.19 W
Typical heat dissipation	280.44 BTU/hour
Maximum power consumption	Without PoE: 110.81 W Full PoE load: 978.5 W (PoE: 828 W)
Maximum heat dissipation	Without PoE: 378.10 BTU/hour Full PoE load: 3338.74 BTU/hour
Static power consumption	55.57 W
MTBF	32.22 years
Availability	> 0.99999
Noise at normal temperature	Acoustic power: 67 dB(A) Acoustic pressure: 55 dB(A)
Number of power slots	1
Number of fan modules	2
Long-term operating temperature	-5°C to +50°C (23°F to 122°F) at 0-1800 m altitude
Storage temperature	-40°C to +70°C (-40°F to +158°F)
Long-term operating relative humidity	5% RH to 95% RH, non-condensing
Long-term operating altitude	0-5000 m (0-16404 ft.)
Storage altitude	0-5000 m (0-16404 ft.)
Power supply mode	Pluggable power supply
Rated input voltage	AC input: 100 V AC to 240 V AC, 50/60 Hz High-voltage DC input: 240 V DC
Input voltage range	AC input: 90 V AC to 290 V AC; 45 Hz to 65 Hz High-voltage DC input: 190 V DC to 290 V DC
Memory	2 GB
Flash memory	Physical space: 1 GB
Console port	RJ45
USB	Supported
Power supply surge protection	Differential mode: ±6 kV; common mode: ±6 kV
Ingress protection level	IP20
Heat dissipation mode	Air cooling with intelligent fan speed adjustment
Airflow direction	Air intake from left, front, and right; air exhaust from rear
PoE	Supported
Certification	EMC certification, Safety certification, Manufacturing certification

Key Features

48 multi-speed Ethernet ports (10M/100M/1G/2.5G BASE-T) with PoE+ support
4×10GE SFP+ uplink ports for high-speed connectivity
2×12GE stack ports for scalable network expansion
828W total PoE budget for powering connected devices
Dual AC power supply capability for redundancy
Front side airflow design for efficient cooling
1U rack-mountable metal chassis
Intelligent fan speed adjustment for optimal thermal management

Frequently Asked Questions

Q: What's your advantages?

A: We are a premium selected partner and professional supplier in the network equipment field for more than seven years. We supply original products with competitive pricing, professional sales team providing 24-hour free consulting, and dedicated technical and after-sales departments.

Q: What's the warranty of your products?

A: One year warranty (except for used products).

Q: What's the MOQ for your products?

A: 1 piece minimum order quantity.

Q: What's the payment terms?

A: Pre T/T, PayPal, Western Union, or Alibaba Trade Assurance order.

Q: What's the package?

A: Original packing. For external protection, we pack it in an additional box to prevent damage during transportation, ensuring you receive goods in good condition.
