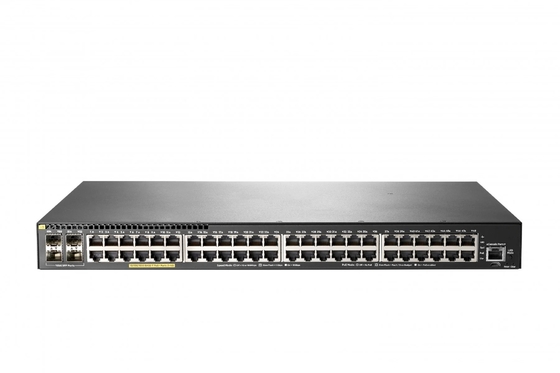

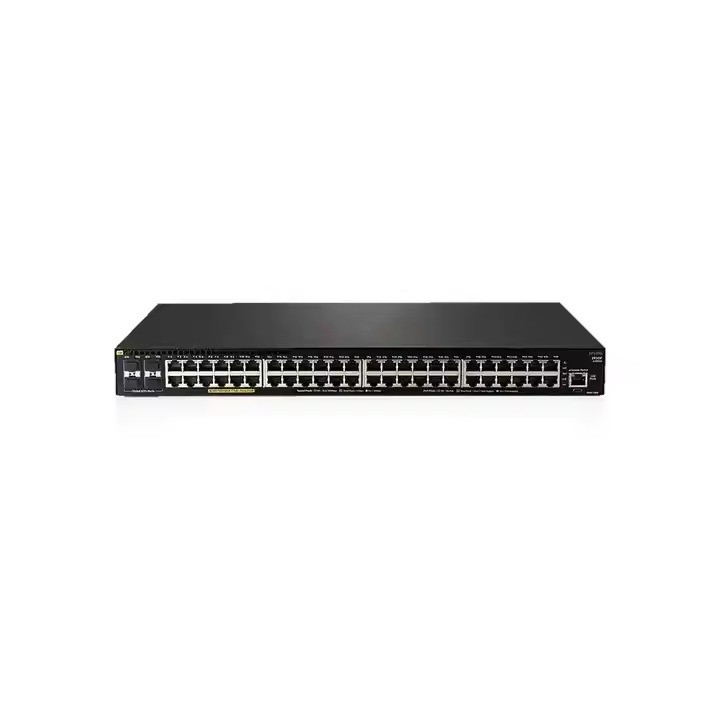

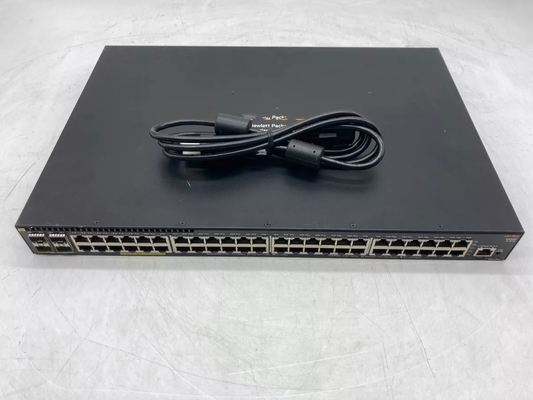

Customized JL262A 48 Port Gigabit PoE+ Network Switch with 4 SFP Uplink Ports for Enterprise Networking

Name: Customized JL262A 48 Port Gigabit PoE+ Network Switch with 4 SFP Uplink Ports for Enterprise Networking
Brand: Beijing Hui Tong High Tech Limited.
SKU: JL262A
Price: 1,341.00 USD
Availability: InStock

Model Number:	JL262A
MOQ:	2
Price:	$1326-$1356
Payment Terms:	T/T,D/P,D/A

Detail Information

Product Description

Detail Information

Place of Origin:

China

Private Mold:

Products Status:

Stock

Ports:

≥ 48

Transmission Rate:

10/100/1000Mbps

Function:

LACP, POE, QoS, SNMP

Communication Mode:

Full-Duplex & Half-Duplex

Switch Capacity:

Brand Name:

Model Number:

JL262A

Place Of Origin:

Shanghai, China

Size:

Customized Size

Color:

Customizable

Suitable For:

Workstation, Laptop, Desktop

Highlight:

48G PoE JL262A 2930F Switch

Customized JL262A 2930F Switch

4SFP JL262A 2930F Switch

Product Description

Customized JL262A 2930F Switch 48G PoE 4SFP Gigabit Network Switch Ultimate Networking Solution With Customized Size

Aruba 2930F 48G PoE+ 4SFP Network Switch - High-performance 48-port Gigabit PoE+ switch with 4 SFP uplink ports, designed for enterprise networking applications requiring reliable power over Ethernet capabilities.

Key Specifications

Model	JL262A Aruba 2930F 48G PoE+ 4SFP Switch
Transmission Rate	10/100/1000Mbps
Communication Mode	Full-Duplex / Half-Duplex

Port Configuration

I/O Ports	48 RJ-45 autosensing 10/100/1000 PoE+ ports Standards: IEEE 802.3 10BASE-T, IEEE 802.3u 100BASE-TX, IEEE 802.3ab 1000BASE-T, IEEE 802.3at PoE+ Duplex: 10BASE-T/100BASE-TX: half or full, 1000BASE-T: full only

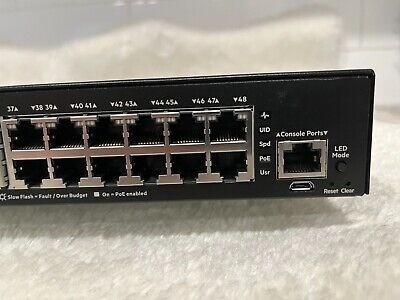

Additional Ports	1 dual-personality (RJ-45 or USB micro-B) serial console port

Hardware Specifications

Memory & Processor	Dual Core ARM Cortex @ 1016 MHz 1 GB DDR3 SDRAM Packet Buffer: 12.38 MB (4.5MB Ingress/7.875MB Egress) 4 GB eMMC storage
Switching Capacity	104 Gb/s
Throughput	Up to 77.4 Mp/s
Latency	< 3.8 μs (64-byte packets)

Management & Control

Aruba AirWave Network Management
IMC - Intelligent Management Center
Command-line interface
Web browser configuration
SNMP manager
Telnet
RMON1
FTP
Out-of-band management (serial RS-232C or micro USB)

Physical Specifications

Dimensions	4.39 x 44.25 x 30.42 cm (1.73 x 17.42 x 11.98 in)
Form Factor	1U rack height

Electrical Specifications

Power Certification	80plus.org Silver
Maximum Power Rating	459 W
Idle Power	48.6 W
PoE Power	370 W PoE+
Voltage	100-127 / 200-240 V AC
Current	5.1/2.5 A
Frequency	50/60 Hz
Heat Dissipation	1652.13 kJ/hr (1566 BTU/hr)

Network Capacity

MAC Address Table	32,768 entries
Routing Table	10,000 entries (IPv4), 5,000 entries (IPv6)
