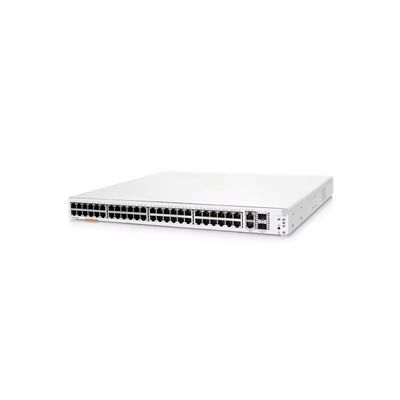

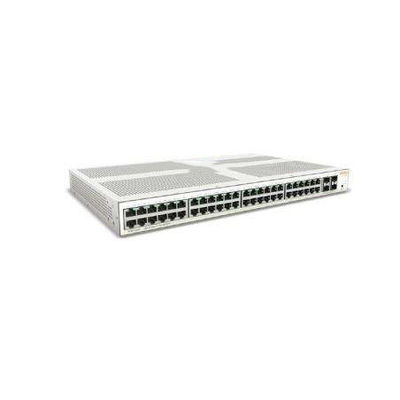

High Capacity 48 Port 10GBase JL808A Enterprise Network Switch with Customizable Size

Name: High Capacity 48 Port 10GBase JL808A Enterprise Network Switch with Customizable Size
Brand: Beijing Hui Tong High Tech Limited.
SKU: JL808A
Price: 1,198.00 USD
Availability: InStock

Model Number:	JL808A
MOQ:	2
Price:	$1168-$1228
Payment Terms:	T/T,D/P,D/A

Detail Information

Product Description

Detail Information

Place of Origin:

China

Private Mold:

Products Status:

Stock

Ports:

≥ 48

Transmission Rate:

10/100/1000Mbps

Function:

LACP, POE, QoS, SNMP

Communication Mode:

Full-Duplex & Half-Duplex

Switch Capacity:

Brand Name:

Model Number:

JL808A

Place Of Origin:

Shanghai, China

Size:

Customized Size

Color:

Customizable

Suitable For:

Workstation, Laptop, Desktop

Highlight:

48 port enterprise network switch

10GBase high capacity switch

JL808A 1960 series switch

Product Description

High Capacity Customized 48 Port 1Gb 10GBase Enterprise JL808A 1960 Series Network Switch

HPE Networking Instant On 1960 48G 2XGT 2SFP+ Switch - 48-port smart switch with advanced enterprise features and lifetime warranty

Product Specifications

Product Name	JL808A
Device Type	Switch - 48 ports - L3 Lite - smart - stackable
Enclosure Type	Rack-mountable
Network Subtype	Gigabit Ethernet
Port Configuration	48 x 10/100/1000 + 2 x 10 Gigabit SFP+ + 2 x 10 Gigabit Ethernet
MAC Address Table	16,000 entries
Jumbo Frame Support	9216 bytes
Power Requirements	AC 100-240 V (50/60 Hz)
Warranty	Limited lifetime warranty

Performance Metrics

Switching Capacity	176 Gbps
Throughput	131 Mpps
Latency (100 Mbps)	4.4 µs
Latency (1 Gbps)	2.2 µs
Latency (10 Gbps)	1.1 µs
Routing Table Capacity	32 IPv4 entries / 32 IPv6 entries

Protocols & Standards

Routing Protocol: IGMP, IGMPv2, IGMPv3, MLD, MLDv2, static IPv4 routing

Remote Management: HTTP, HTTPS, SNMP 1, SNMP 2c, SNMP 3, RADIUS, SCP, TFTP, RMON

Compliant Standards: IEEE 802.1x, IEEE 802.1p, IEEE 802.1D, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ad (LACP), IEEE 802.1ab (LLDP), IEEE 802.3az, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3an, IEEE 802.3i, IEEE 802.3z, IEEE 802.3ae, IEEE 802.3x, IEEE 802.1Q, IEEE 802.1t, IEEE 802.3ac

Advanced Features

• Cloud managed

• ACL support

• VLAN support

• DoS attack prevention

• DHCP client/server

• Firmware upgradable

• SNTP support

• QoS, DSCP prioritisation

• CoS, WRR

• Auto-uplink (auto MDI/MDI-X)

• Auto-negotiation

• Flow control

• MSTP/RSTP/STP support

• Auto voice VLAN

• Port mirroring

• BPDU Filter

• Loop protection

• IGMP/MLD snooping

• TPM security

• LLDP-MED

• Port based access control

• Port Security

• DHCP snooping

• IP source guard

• ARP filtering

• Storm Control (Unicast/Broadcast/Multicast)

• Energy Efficient Ethernet

• DHCP relay

• IPv6 support

• Ingress rate limiting

• DNS client

• Protected ports

• Dual image support

• ICMP support

• Cable Diagnostics Function
