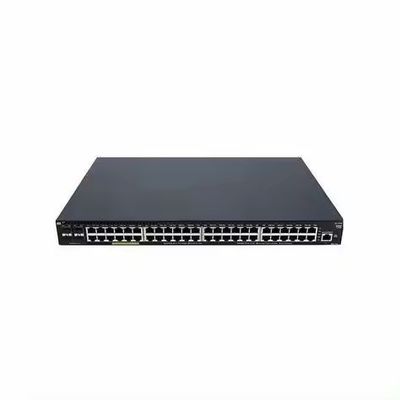

Customized JL262A 48G PoE Layer 3 Network Switch with 10/100/1000Mbps Transmission Rate

Name: Customized JL262A 48G PoE Layer 3 Network Switch with 10/100/1000Mbps Transmission Rate
Brand: Beijing Hui Tong High Tech Limited.
SKU: JL262A
Price: 1,286.00 USD
Availability: InStock

Model Number:	JL262A
MOQ:	2
Price:	$1276-$1296
Payment Terms:	T/T,D/P,D/A

Detail Information

Product Description

Detail Information

Place of Origin:

China

Private Mold:

Products Status:

Stock

Ports:

≥ 48

Transmission Rate:

10/100/1000Mbps

Function:

LACP, POE, QoS, SNMP

Communication Mode:

Full-Duplex & Half-Duplex

Switch Capacity:

Brand Name:

Model Number:

JL262A

Place Of Origin:

Shanghai, China

Size:

Customized Size

Color:

Customizable

Suitable For:

Workstation, Laptop, Desktop

Highlight:

JL262A 48G PoE network switch

2930F Layer 3 access switch

10/100/1000Mbps transmission switch

Product Description

Aruba 2930F 48G PoE+ 4SFP Layer 3 Access Switch

High-performance network switch with 48 PoE+ ports and advanced Layer 3 capabilities, designed for enterprise access layer deployments.

Port Configuration

Interface Type	Specifications
I/O Ports	48 RJ-45 autosensing 10/100/1000 PoE+ ports Standards: IEEE 802.3 10BASE-T, IEEE 802.3u 100BASE-TX, IEEE 802.3ab 1000BASE-T, IEEE 802.3at PoE+ Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only
Additional Ports	1 dual-personality (RJ-45 or USB micro-B) serial console port

Hardware Specifications

Processor

Dual Core ARM Cortex @ 1016 MHz

Memory

1 GB DDR3 SDRAM

Storage

4 GB eMMC

Packet Buffer

12.38 MB (4.5MB Ingress/7.875MB Egress)

Management & Control

Aruba AirWave Network Management
IMC - Intelligent Management Center
Command-line interface
Web browser configuration
SNMP manager
Telnet
RMON1
FTP
Out-of-band management (serial RS-232C or micro USB)

Performance Specifications

1000 Mb Latency

< 3.8 μs (64-byte packets)

Throughput

Up to 77.4 Mp/s

Switching Capacity

104 Gb/s

Routing Table Size

10,000 entries (IPv4), 5,000 entries (IPv6)

MAC Address Table

32,768 entries

Physical Specifications

Dimensions

4.39 x 44.25 x 30.42 cm (1.73 x 17.42 x 11.98 in)

Height

Electrical Specifications

80plus Certification

Silver

Maximum Heat Dissipation

1652.13 kJ/hr (1566 BTU/hr)

Voltage

100-127 / 200-240 V AC

Current

5.1/2.5 A

Maximum Power Rating

459 W

Idle Power

48.6 W

Frequency

50/60 Hz

PoE Power

370 W PoE+
