Customized 24-Port 370W POE Network Switch with 10/100/1000Mbps Gigabit Ethernet and 4SFP Ports

Name: Customized 24-Port 370W POE Network Switch with 10/100/1000Mbps Gigabit Ethernet and 4SFP Ports
Brand: Beijing Hui Tong High Tech Limited.
SKU: R8N87A
Price: 703.00 USD
Availability: InStock

Model Number:	R8N87A
MOQ:	2
Price:	$688-$718
Payment Terms:	T/T,D/P,D/A

Detail Information

Product Description

Detail Information

Place of Origin:

China

Private Mold:

Products Status:

Stock

Ports:

≥ 48

Transmission Rate:

10/100/1000Mbps

Function:

LACP, POE, QoS, SNMP

Communication Mode:

Full-Duplex & Half-Duplex

Switch Capacity:

Brand Name:

Model Number:

R8N87A

Place Of Origin:

Shanghai, China

Size:

Customized Size

Color:

Customizable

Suitable For:

Workstation, Laptop, Desktop

Highlight:

24-port PoE network switch

6000 series R8N87A switch

370W PoE switch with SFP

Product Description

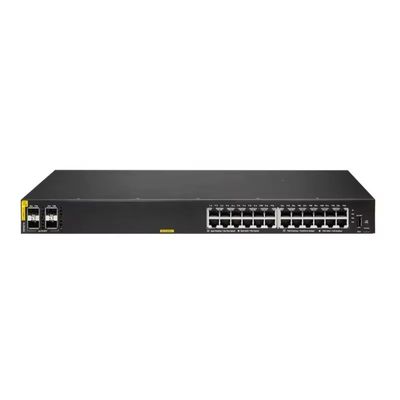

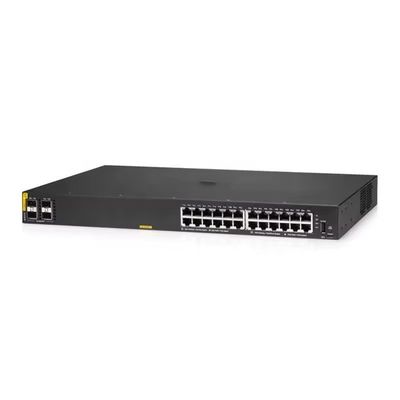

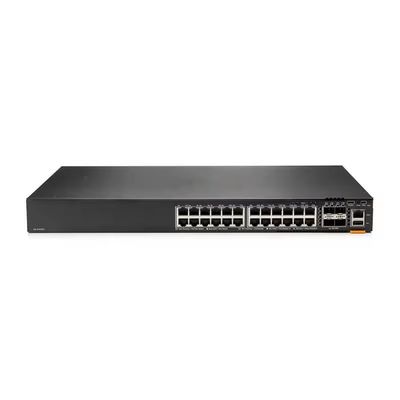

CX6000 Series 24-Port Gigabit PoE+ Network Switch

Customized R8N87A 24-port managed network switch with Power over Ethernet+ support, designed for industrial and enterprise networking applications requiring high-performance connectivity.

Product Code: R8N87A
Key Feature: 24 PoE+ ports with 370W total budget and 4 SFP uplink ports

Port Configuration & Performance

Ethernet Ports	24 x 10/100/1000 Base-T RJ-45 PoE+ ports (370W total budget)
SFP Ports	4 x Gigabit SFP fiber uplink ports
Additional Interfaces	1 x USB Type A port, 1 x USB-C console port
Switching Capacity	56 Gbps
Forwarding Rate	41.6 Mpps
Latency	1.5 μs (1 Gbps)

Technical Specifications

Management Type	Managed, Stackable
MAC Address Table	8,192 entries
Jumbo Frames	9,198 bytes
Packet Buffer Size	12.38 MB
Switched Virtual Interfaces	16
ARP Entries	1,024
IPv4/IPv6 Routes	512 each
IGMP/MLD Groups	512 each

Power Specifications

Power Supply	Internal
Input Voltage	AC 100-240 V (50/60 Hz)
Operational Power Consumption	32.7 Watt
PoE Budget	370 W
Operation	Fanless design

Management & Security Features

Remote Management: SNMP 1/2c/3, HTTP, HTTPS, RADIUS
Authentication: SSH, RADIUS, TACACS+, SSH2
Encryption: SSL security
Routing Protocol: IGMPv2, IGMPv3
VLAN support and Multiple Spanning Tree Protocol (MSTP)
Access Control List (ACL) support
IPv6 support with Neighbor Discovery Protocol
Flow control and Quality of Service (DiffServ)
LLDP and LLDP-MED support
Trusted Platform Module (TPM) security

Physical Dimensions

Width	17.4 inches
Depth	10.6 inches
Height	1.7 inches (1U rack-mountable)

Environmental Specifications

Operating Temperature	32°F to 113°F (0°C to 45°C)
Operating Humidity	15% to 95% (non-condensing)
Storage Humidity	15% to 90% (non-condensing)

Warranty & Compliance

Warranty	Limited lifetime warranty
Standards Compliance	IEEE 802.3 series, UL, IEC, FCC, CE, and other international standards
