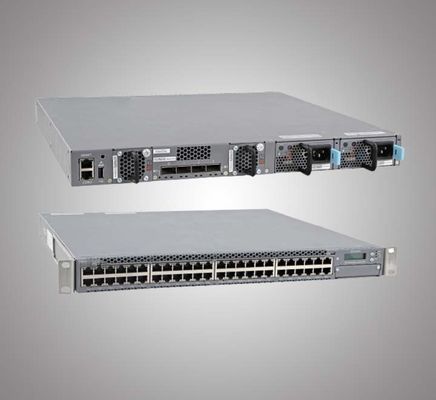

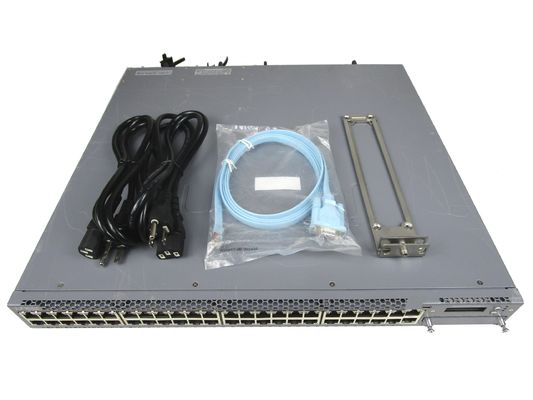

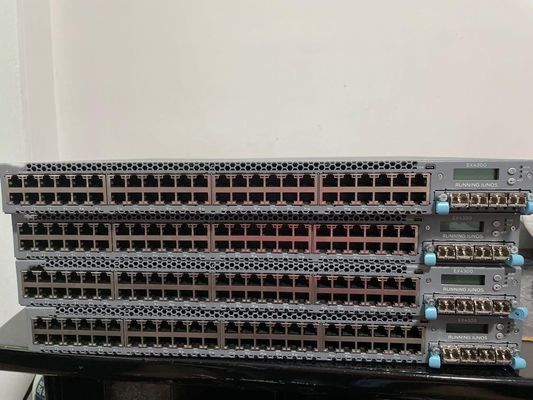

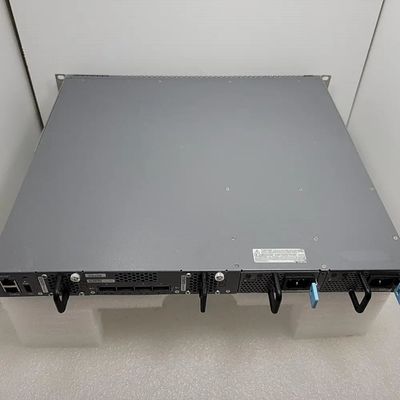

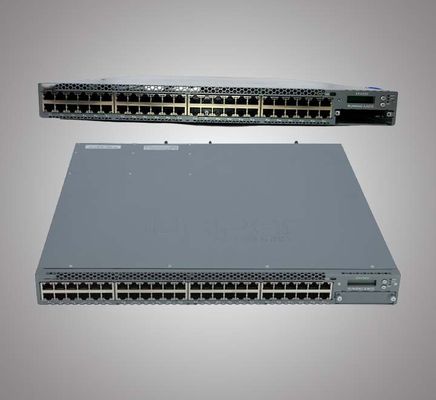

Customized EX4300-48P EX4300 Series 48 Ports 10/100/1000BASE-T PoE Ethernet Network Switch Stock Status for Communication

Price:	CN¥20,231.12/pieces 1-1 pieces

Detail Information

Private Mold:

Products Status:

Stock

Ports:

≥ 48

Transmission Rate:

10/100/1000Mbps

Function:

LACP, POE, QoS, SNMP

Communication Mode:

Full-Duplex & Half-Duplex

Switch Capacity:

Brand Name:

Model Number:

Ex4300-48t

Place Of Origin:

Shanghai, China

Size:

Customized Size

Color:

Customizable

Suitable For:

Workstation, Laptop, Desktop

Product Description

Form factor	Fixed platform Virtual Chassis configuration consisting of 10 switches
Dimensions (W x H x D)	17.4 x 1.7 x 16.4 in (44.2 x 4.3 x 41.7 cm) 1 rack unit
Backplane speed	320 Gbps (Virtual Chassis)
Data rate	496 Gbps
Throughput	369 Mpps (wire speed)
40GBASE quad small form-factor pluggable plus transceiver (QSFP+) port densities	4 per switch Up to 20 in Virtual Chassis configuration (assuming 2 ports per switch are used for forming Virtual Chassis)
100GBASE C form-factor pluggable transceiver (CFP) port densities	N/A
Resiliency	Internal, hot-swappable redundant power supply; field-replaceable fans; graceful Routing Engine switchover (GRES) in Virtual Chassis configuration
Traffic monitoring	sFlow
Quality-of-service (QoS) queues/port	12
MAC addresses	64,000
Jumbo frames	9216 bytes
IPv4 unicast/multicast routes	32,000/8000
IPv6 unicast/multicast routes	18,000/4000
Number of VLANs	4093
ARP entries	64,000
Number of VLANs	4093
ARP entries	1500
