EX4300 Series 48 Port Ethernet Network Switch with 10/100/1000Mbps Speed and Customized Size

Name: EX4300 Series 48 Port Ethernet Network Switch with 10/100/1000Mbps Speed and Customized Size
Brand: Beijing Hui Tong High Tech Limited.
SKU: Ex4300-48p
Price: 1,893.00 USD
Availability: InStock

Model Number:	Ex4300-48p
MOQ:	2
Price:	$1858-$1928
Payment Terms:	T/T,D/P,D/A

Detail Information

Product Description

Detail Information

Place of Origin:

China

Private Mold:

Products Status:

Stock

Ports:

≥ 48

Transmission Rate:

10/100/1000Mbps

Function:

LACP, POE, QoS, SNMP

Communication Mode:

Full-Duplex & Half-Duplex

Switch Capacity:

Brand Name:

Model Number:

Ex4300-48p

Place Of Origin:

Shanghai, China

Size:

Customized Size

Color:

Customizable

Suitable For:

Workstation, Laptop, Desktop

Highlight:

EX4300 Ethernet network switch

customized size network switch

10 Ethernet port switch

Product Description

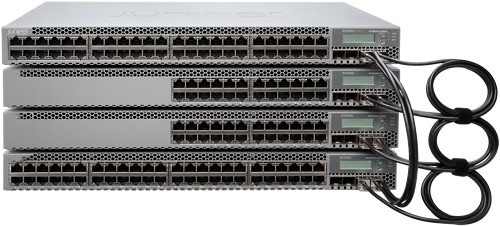

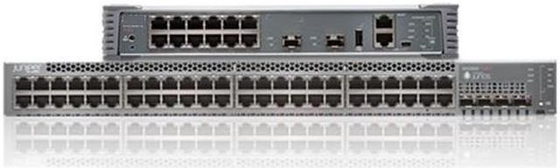

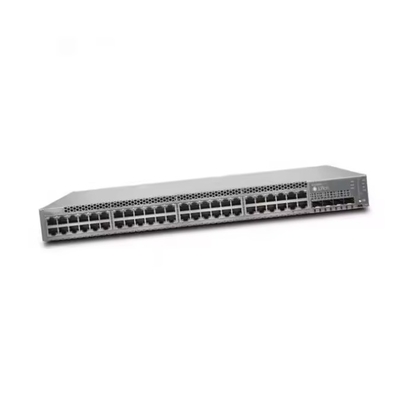

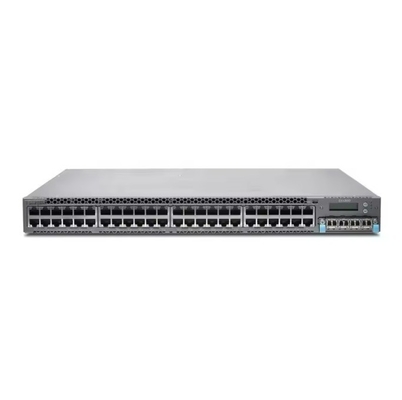

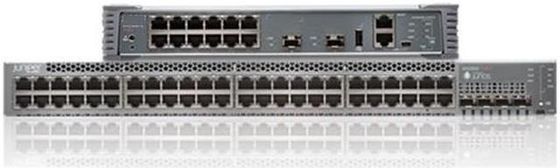

Customized EX4300 Series EX4300-48P 10 Ethernet Network Switch

Juniper switches deliver cloud-grade, high-density Ethernet switching solutions for data center, campus, and branch environments, improving networking economics across your infrastructure.

Available Switch Series

EX4300 Series
EX2300 Series
EX4600 Series
EX3400 Series
QFX5100 Series

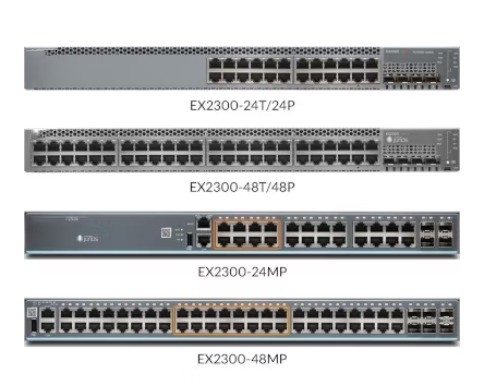

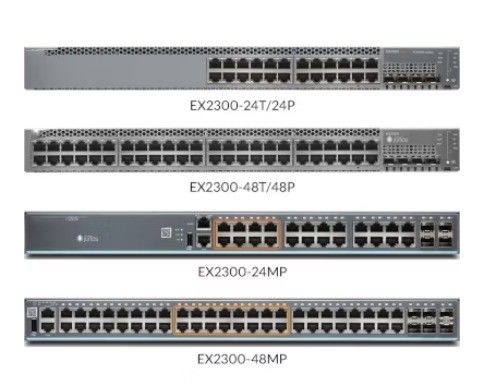

EX2300 Series Specifications

Model	EX2300-24T	EX2300-24P	EX2300-48P
Backplane Speed	80 Gbps	80 Gbps	80 Gbps
Data Rate	128 Gbps	128 Gbps	176 Gbps
Throughput	95 Mpps (wire speed)	95 Mpps (wire speed)	130 Mpps (wire speed)
Ports	24-port 10/100/1000BASE-T, 4 x 1/10GbE SFP/SFP+	24-port 10/100/1000BASE-T PoE+, 4 x 1/10GbE SFP/SFP+	48-port 10/100/1000BASE-T PoE+, 4 x 1/10GbE SFP/SFP+

Optics sold separately for all models

EX4300 Series Specifications

Model	EX4300-48T	EX4300-48P
Description	48-port 10/100/1000BASE-T + 350 W AC PS	48-port 10/100/1000BASE-T PoE-plus + 1100 W AC PS (provides 950 W PoE+ power)
Backplane Speed	320 Gbps (Virtual Chassis)	320 Gbps (Virtual Chassis)
Data Rate	496 Gbps	496 Gbps
Throughput	369 Mpps (wire speed)	369 Mpps (wire speed)

QSFP+ DAC for Virtual Chassis ordered separately for all models

EX3400 Series Specifications

Model	EX3400-24T	EX3400-24P	EX3400-48T	EX3400-48P
Ports	24-port 10/100/1000BASE-T with 4 SFP+ and 2 QSFP+ uplink ports	24-port 10/100/1000BASE-T (24 PoE+ ports) with 4 SFP+ and 2 QSFP+ uplink ports	48-port 10/100/1000BASE-T, 4 x 1/10GbE SFP/SFP+, 2 x 40GbE QSFP+	48-port 10/100/1000BASE-T (48 PoE+ ports) with 4 SFP+ and 2 QSFP+ uplink ports
Backplane Speed	160 Gbps	160 Gbps	160 Gbps	160 Gbps
Data Rate	288 Gbps	288 Gbps	336 Gbps	336 Gbps
Throughput	214 Mpps (wire speed)	214 Mpps (wire speed)	250 Mpps (wire speed)	250 Mpps (wire speed)

Optics not included for all models
