Juniper EX4300 24 Port Network Switch with SNMP Function and Customizable Size

Name: Juniper EX4300 24 Port Network Switch with SNMP Function and Customizable Size
Brand: Beijing Hui Tong High Tech Limited.
SKU: EX4300-24P
Price: 1,745.00 USD
Availability: InStock

Model Number:	EX4300-24P
MOQ:	2
Price:	$1705-$1785
Payment Terms:	T/T,D/P,D/A

Detail Information

Product Description

Detail Information

Place of Origin:

China

Private Mold:

Products Status:

Stock

Ports:

Transmission Rate:

10/100/1000Mbps

Function:

LACP, POE, QoS, SNMP

Communication Mode:

Full-Duplex & Half-Duplex

Switch Capacity:

Brand Name:

Model Number:

EX4300

Place Of Origin:

Shanghai, China

Size:

Customized Size

Color:

Customizable

Suitable For:

Workstation, Laptop, Desktop

Highlight:

24 port network switch with SNMP

EX4300 series network switch

original EX4300-24P switch

Product Description

Customized 24 Port Switch EX4300 Series Network Switch

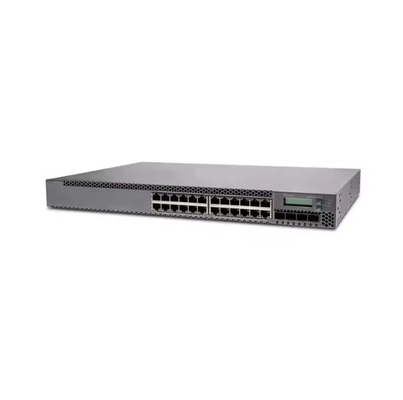

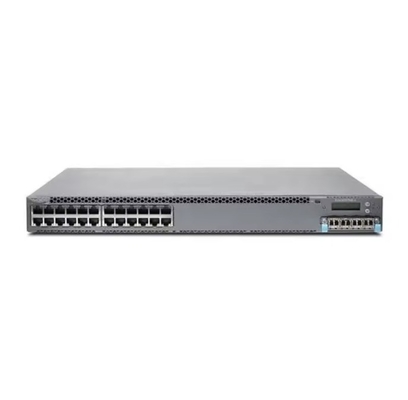

EX4300-24P Overview

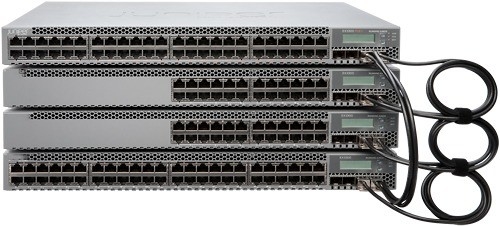

The EX4300-24P is a Juniper EX4300 switch featuring 24-port 10/100/1000BASE-T PoE-plus connectivity with 715 W AC power supply (providing 565 W PoE+ power). QSFP+ DAC for Virtual Chassis is ordered separately. These EX4300 1 Gigabit Ethernet switches are compact, fixed-configuration platforms that can be deployed as standalone systems or integrated into Virtual Chassis, Virtual Chassis Fabric, or Junos Fusion switching architectures, meeting diverse high-performance campus and data center access requirements.

EX4300-24P Technical Specifications

Description	Juniper EX4300 switch with 24-port 10/100/1000BASE-T PoE-plus + 715 W AC PS (provides 565 W PoE+ power) (QSFP+ DAC for Virtual Chassis ordered separately)
Form Factor	Fixed platform Virtual Chassis configuration consisting of 10 switches
Dimensions (W x H x D)	17.4 x 1.7 x 16.4 in (44.2 x 4.3 x 41.7 cm) 1 rack unit
Backplane Speed	320 Gbps (Virtual Chassis)
Data Rate	448 Gbps
Throughput	333 Mpps (wire speed)
40GBASE QSFP+ Port Densities	4 per switch Up to 20 in Virtual Chassis configuration (assuming 2 ports per switch are used for forming Virtual Chassis)
100GBASE CFP Port Densities	N/A
Resiliency	Internal, hot-swappable redundant power supply; field-replaceable fans; graceful Routing Engine switchover (GRES) in Virtual Chassis configuration
Operating System	Junos OS
Traffic Monitoring	sFlow
Quality-of-Service (QoS) Queues/Port	12
MAC Addresses	64,000
Jumbo Frames	9216 bytes
IPv4 Unicast/Multicast Routes	32,000/8000
IPv6 Unicast/Multicast Routes	18,000/4000
Number of VLANs	4093
ARP Entries	64,000

EX4300 Series Comparison

SKU	EX4300-24T	EX4300-48T	EX4300-24P
Backplane Speed	320 Gbps (Virtual Chassis)	320 Gbps (Virtual Chassis)	320 Gbps (Virtual Chassis)
Data Rate	448 Gbps	496 Gbps	448 Gbps
Throughput	333 Mpps (wire speed)	369 Mpps (wire speed)	333 Mpps (wire speed)
40GBASE QSFP+ Port Densities	4 per switch Up to 20 in Virtual Chassis configuration	4 per switch Up to 20 in Virtual Chassis configuration	4 per switch Up to 20 in Virtual Chassis configuration
Dimensions (W x H x D)	17.4 x 1.7 x 16.4 in (44.2 x 4.3 x 41.7 cm) 1 rack unit	17.4 x 1.7 x 16.4 in (44.2 x 4.3 x 41.7 cm) 1 rack unit	17.4 x 1.7 x 16.4 in (44.2 x 4.3 x 41.7 cm) 1 rack unit
