products details

Created with Pixso. Home Created with Pixso. Products Created with Pixso.
Networking Switch
Created with Pixso.

Customized Switch EX3400-48T EX3400 Series 24-port Ethernet Network Stackable Enterprise Switches with NO Private Mold

Customized Switch EX3400-48T EX3400 Series 24-port Ethernet Network Stackable Enterprise Switches with NO Private Mold

Customized Switch EX3400-48T EX3400 Series 24-port Ethernet Network Stackable Enterprise Switches with NO Private Mold

Price: CN¥10,592.44/pieces 1-99 pieces
Detail Information
Product Description
Detail Information
Private Mold:
NO
Products Status:
Stock
Ports:
24
Transmission Rate:
10/100/1000Mbps
Function:
LACP, POE, QoS, SNMP
Communication Mode:
Full-Duplex & Half-Duplex
Switch Capacity:
/
Brand Name:
/
Model Number:
EX3400-48T
Place Of Origin:
Shanghai, China
Size:
Customized Size
Color:
Customizable
Suitable For:
Workstation, Laptop, Desktop
Product Description
Product Description
Customized Switch EX3400-48T EX3400 Series 24-port Ethernet Network Stackable Enterprise Switches with NO Private Mold 0
Customized Switch EX3400-48T EX3400 Series 24-port Ethernet Network Stackable Enterprise Switches with NO Private Mold 1
Customized Switch EX3400-48T EX3400 Series 24-port Ethernet Network Stackable Enterprise Switches with NO Private Mold 2
Customized Switch EX3400-48T EX3400 Series 24-port Ethernet Network Stackable Enterprise Switches with NO Private Mold 3
Customized Switch EX3400-48T EX3400 Series 24-port Ethernet Network Stackable Enterprise Switches with NO Private Mold 4
Customized Switch EX3400-48T EX3400 Series 24-port Ethernet Network Stackable Enterprise Switches with NO Private Mold 5
Description

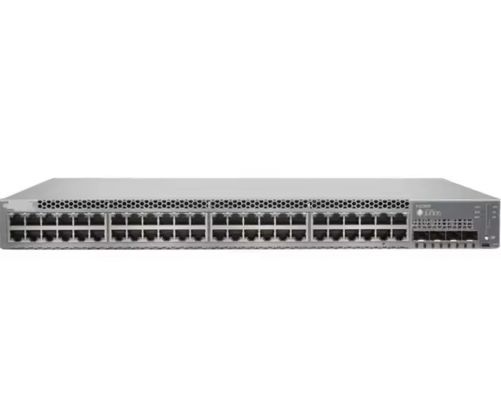

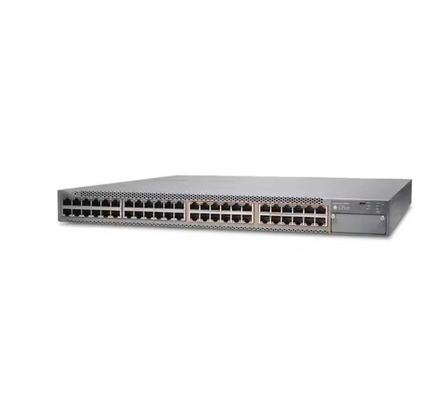

EX3400 48-port 10/100/1000BASE-T, 4 x 1/10GbE SFP/SFP+, 2 x 40GbE QSFP+, redundant fans, front-to-back airflow, 1 AC PSU
JPSU-150-AC-AFO included (optics sold separately)
Form factor
Fixed platform
Virtual Chassis configuration consisting of up to 10 switches
Junos Fusion Enterprise Satellite device
Dimensions (W x H x D)
17.4 x 1.7 x 13.8 in (43.7 x 4.4 x 35 cm)
1 rack unit
Backplane speed
160 Gbps
Data rate
336 Gbps
Throughput
250 Mpps (wire speed)
40GBASE quad small form-factor pluggable plus transceiver (QSFP+) port densities
2
100GBASE C form-factor pluggable transceiver (CFP) port densities
N/A
Resiliency
Redundant, field-replaceable power supplies
Redundant trunk groups that provide port redundancy and simplify switch configuration
Operating system
Junos OS
Traffic monitoring
sFlow
Quality-of-service (QoS) queues/port
8 unicast/4 multicast
MAC addresses
32,000
Jumbo frames
9216 bytes
IPv4 unicast/multicast routes
36,000/4,000
IPv6 unicast/multicast routes
18,000/2,000
Number of VLANs
4,096
ARP entries
16,000
Specification
