| Price: | CN¥5,924.83/pieces >=1 pieces |

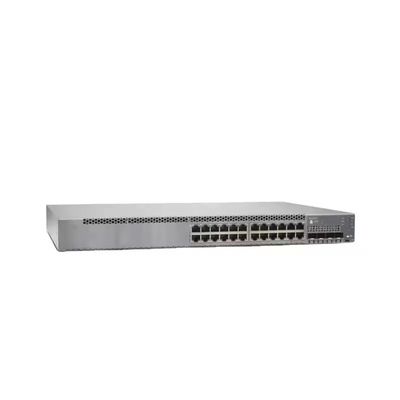

Description | EX3400 24-port 10/100/1000BASE-T with 4 SFP+ and 2 QSFP+ uplink ports (optics not included) |
Form factor | Fixed platform Virtual Chassis configuration consisting of up to 10 switches Junos Fusion Enterprise Satellite device |
Dimensions (W x H x D) | 17.4 x 1.7 x 13.8 in (43.7 x 4.4 x 35 cm) 1 rack unit |
Backplane speed | 160 Gbps |
Data rate | 288 Gbps |
Throughput | 214 Mpps (wire speed) |
40GBASE quad small form-factor pluggable plus transceiver (QSFP+) port densities | 2 |
100GBASE C form-factor pluggable transceiver (CFP) port densities | N/A |
Resiliency | Redundant, field-replaceable power supplies Redundant trunk groups that provide port redundancy and simplify switch configuration |
Operating system | Junos OS |
Traffic monitoring | sFlow |
Quality-of-service (QoS) queues/port | 8 unicast/4 multicast |
MAC addresses | 32,000 |
Jumbo frames | 9216 bytes |
IPv4 unicast/multicast routes | 36,000/4,000 |
IPv6 unicast/multicast routes | 18,000/2,000 |
