48-Port Gigabit Ethernet Switch with 100GbE Uplinks and Low Latency for Data Centers

Name: 48-Port Gigabit Ethernet Switch with 100GbE Uplinks and Low Latency for Data Centers
Brand: Beijing Hui Tong High Tech Limited.
SKU: QFX5110-48S-AFI2
Price: 4,683.00 USD
Availability: InStock

Model Number:	QFX5110-48S-AFI2
MOQ:	2
Price:	$4628-$4738
Payment Terms:	T/T,D/P,D/A

Detail Information

Product Description

Detail Information

Place of Origin:

China

Private Mold:

Products Status:

Stock

Ports:

≥ 48

Transmission Rate:

10/100/1000Mbps

Function:

LACP, POE, QoS, SNMP

Communication Mode:

Full-Duplex & Half-Duplex

Switch Capacity:

Brand Name:

Model Number:

QFX5110-48S-AFI2

Place Of Origin:

Shanghai, China

Size:

Customized Size

Color:

Customizable

Suitable For:

Workstation, Laptop, Desktop

Highlight:

48-port gigabit Ethernet switch

QFX5110-48S-AFI2 network switch

laptop-compatible networking switch

Product Description

48-Port Gigabit QFX5110-48S-AFI2 Ethernet Access Network Switch

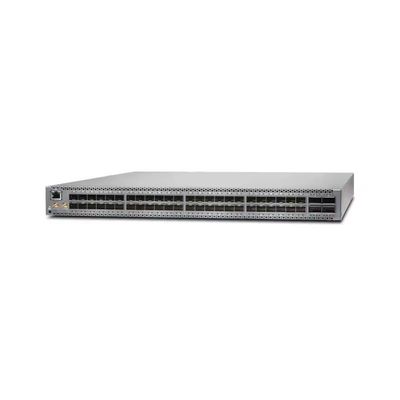

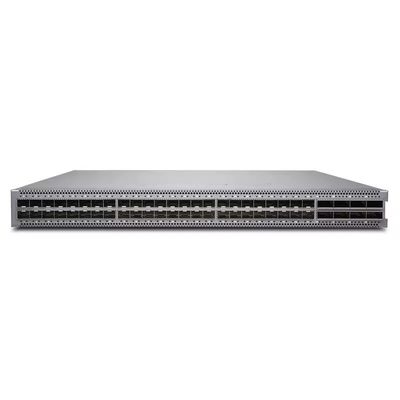

Original Juniper QFX 5110 100G Switches QFX5110-48S-AFI2 network hub with 48 SFP+ and 4 QSFP28 ports, back-to-front airflow, AC power configuration.

Advanced Network Performance

QFX5110 access and aggregation switches deliver low latency, rich Layer 2 and Layer 3 features, VXLAN overlay deployments, and 100GbE uplinks, making it the industry's most nimble line of switches.

Featuring L3 gateway capabilities for bridging between virtualized and bare-metal servers, the QFX5110 is designed for extremely agile data centers that demand support for overlay/underlay network architectures. The high-density 10GbE, 40GbE, and 100GbE ports also make the QFX5110 ideally suited for use in data center spine and leaf topologies and campus distribution.

Key Features

Support high-density, multi-speed configurations for 10/40/100GbE access and aggregation
Up to 64 or 96 10GbE ports, up to four 100GbE uplink ports, and up to 32 40GbE ports in a 1U platform
Deliver up to 2.56 Tbps Layer 2 and Layer 3 performance with latency as low as 550 nanoseconds
1.8 GHz quad-core Intel CPU with 16 GB memory and 64 GB SSD storage
Rich automation capabilities with support for Python and zero touch provisioning (ZTP)
Support virtualization protocols including Virtual Extensible LAN (VXLAN) and Open vSwitch Database (OVSDB) protocol
Advanced Junos OS features such as BGP add-path, MPLS, L3 VPN, and IPv6 6PE

Technical Specifications

Product Code	QFX5110-48S-AFI2
Dimensions (W x H x D)	1.72 x 17.36 x 20.48 in (4.37 x 44.09 x 52.02 cm)
Rack Units	1 U
Weight	23 lb (10.43 kg)
Operating System	Junos OS
CPU	1.8 GHz quad-core Intel CPU
Power	AFO/AFI: Max load: 300 W, Typical load: 195 W, Idle load: 150 W Dual redundant (1+1) and hot-pluggable power supplies 110-240 V single phase AC power -36 to -72 V DC power

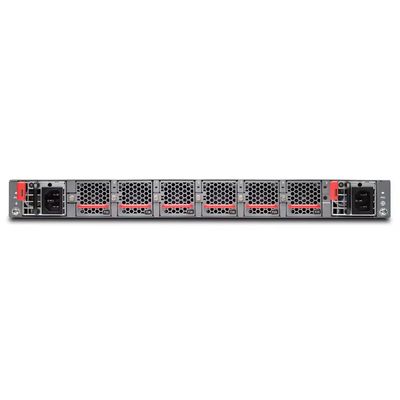

Cooling	Redundant (N+1) and hot-pluggable fan modules for front-to-back and back-to-front airflow Redundant variable-speed fans to reduce power draw
Total Packet Buffer	16 MB
Warranty	Juniper standard one-year warranty
System Throughput	Up to 1.76 Tbps (bidirectional)
Forwarding Capacity	1.32 Bpps
