Customizable Size QFX5220-128C-AFO 128 Port 100GbE Networking Switch for High-Density Data Center Connectivity

Name: Customizable Size QFX5220-128C-AFO 128 Port 100GbE Networking Switch for High-Density Data Center Connectivity
Brand: Beijing Hui Tong High Tech Limited.
SKU: QFX5220-128C-AFO
Price: 21,100.00 USD
Availability: InStock

Model Number:	QFX5220-128C-AFO
MOQ:	1
Price:	$18600-$23600
Payment Terms:	T/T,D/P,D/A

Detail Information

Product Description

Detail Information

Place of Origin:

China

Private Mold:

Products Status:

Stock

Ports:

Transmission Rate:

10/100/1000Mbps

Function:

LACP, POE, QoS, SNMP

Communication Mode:

Full-Duplex & Half-Duplex

Switch Capacity:

Brand Name:

Model Number:

QFX5220-128C

Place Of Origin:

Shanghai, China

Size:

Customized Size

Color:

Customizable

Suitable For:

Workstation, Laptop, Desktop

Highlight:

QFX5220-128C-AFO 128X100G networking switch

24 port customizable networking switch

4U AC AFO networking switch

Product Description

Customizable QFX5220-128C-AFO 128X100G 4U AC AFO Networking Switch

The Juniper Networks QFX5220 Switch is a next-generation, fixed-configuration spine-and-leaf switch designed for personalized networking solutions. It provides flexible, cost-effective, high-density connectivity supporting 400GbE, 200GbE, 100GbE, 50GbE, 40GbE, 25GbE, and 10GbE interfaces for server and intra-fabric connectivity.

Advanced Capabilities

QFX5220 switches support advanced Layer 2, Layer 3, and MPLS features, delivering a versatile, future-proofed solution for today's data centers. For large public cloud providers, the QFX5220 supports dense, fast 400GbE IP fabrics using proven internet-scale technology. For enterprise customers transitioning from 10GbE to 25GbE, it provides high radix-native 100GbE lean-spine options with reduced power consumption and smaller footprint.

Product Models & Specifications

QFX5220-32CD Model

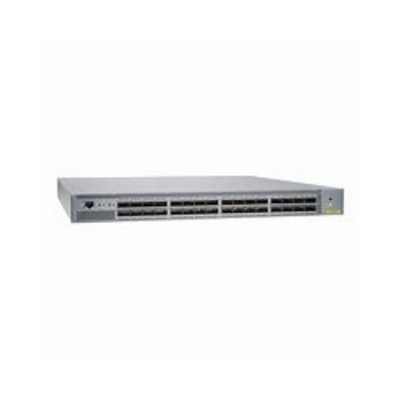

The QFX5220-32CD offers 32 ports in a low-profile 1U form factor with high-speed ports supporting 400GbE, 200GbE, 100GbE, 50GbE, 40GbE, 25GbE, and 10GbE configurations. Equipped with two AC or DC power supplies (1+1 redundancy) and six hot-swappable fans with ports-to-FRUs (AFO) or FRUs-to-ports (AFI) airflow options (5+1 redundancy).

QFX5220-128C Model

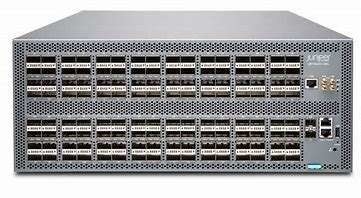

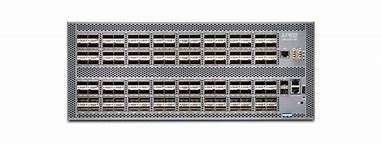

The QFX5220-128C offers 128 ports in a 4U form factor supporting 100GbE, 40GbE, 25GbE, and 10GbE configurations. Equipped with four AC or DC power supplies (2+2 redundancy) and six hot-swappable ports-to-FRUs (AFO) airflow fans (5+1 redundancy).

Technical Specifications

Specification	QFX5220-32CD	QFX5220-128C
System throughput	Up to 25.6 Tbps (bidirectional)	Up to 25.6 Tbps (bidirectional)
Forwarding capacity	8 billion packets per second	8 billion packets per second
Port density	32 ports of QSFP56-DD 400GbE	128 ports of QSFP28 100GbE
SFP+/SFP28	2 SFP+ transceiver ports for in-band network management	2 SFP+ transceiver ports for in-band network management

System Architecture

Both QFX5220 switch models include an Intel processor to drive the control plane, running the Juniper Networks Junos OS Evolved operating system software. Delivering 25.6 Tbps (bidirectional) of bandwidth, both models are optimally designed for spine-and-leaf deployments in enterprise, HPC, service provider, and cloud data centers.
