Customized 9400 Series 48-Port POE 10/100/1000Mbps RJ-45 Networking Switch with Customizable Network Configurations

Name: Customized 9400 Series 48-Port POE 10/100/1000Mbps RJ-45 Networking Switch with Customizable Network Configurations
Brand: Beijing Hui Tong High Tech Limited.
SKU: C9400-LC-48P
Price: 981.00 USD
Availability: InStock

Model Number:	C9400-LC-48P
MOQ:	1
Price:	$936-$1026
Payment Terms:	D/P,T/T,D/A

Detail Information

Product Description

Detail Information

Place of Origin:

China

Private Mold:

Products Status:

Stock

Ports:

≥ 48

Transmission Rate:

10/100/1000Mbps

Brand Name:

Model Number:

C9400-LC-48P

Place Of Origin:

China

Product Name:

C9400-LC-48P

Size:

Customized Size

Color:

Customizable

Highlight:

48-port PoE networking switch

C9400-LC-48P RJ-45 module

customizable network configurations switch

Product Description

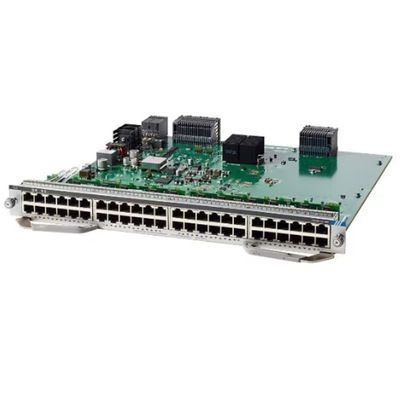

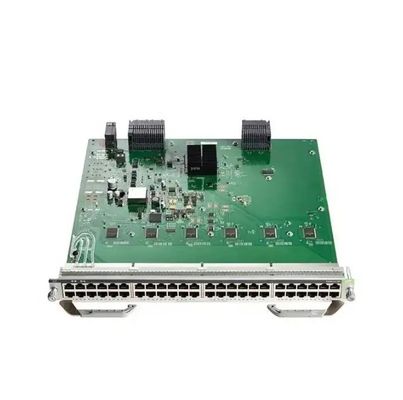

Customized 9400 Series 48-Port POE 10/100/1000 RJ-45 Module C9400-LC-48P

This customizable network module offers flexible configurations for enterprise networking environments with Power over Ethernet capabilities.

Catalyst 9400 Series Platform Overview

The Cisco Catalyst 9400 Series provides three chassis options with extensive line card selection, supporting up to 400 ports. Cisco StackWise Virtual technology enables virtual stacking of two Catalyst 9400 modular switches into a single logical entity, effectively doubling port density.

Designed for enterprise optimization, the chassis features efficient side-to-side airflow and full front accessibility for all removable components including supervisors, line cards, power supplies, and fan trays. Optional rear fan tray accessibility enhances cable management efficiency. All components feature embedded RFID tags for simplified asset and inventory management.

Chassis Comparison

Feature	Catalyst C9404R Chassis	Catalyst C9407R Chassis	Catalyst C9410R Chassis
Total number of slots	4	7	10
Line-card slots	2	5	8
Supervisor engine slots	2	2	2
Dedicated supervisor engine slot numbers	2 and 3	3 and 4	5 and 6
Supervisor engine redundancy	Yes	Yes	Yes
Maximum PoE per slot	4320W	4320W	4320W
Maximum Bandwidth per line-card slot	Up to 480 Gbps	Up to 480 Gbps	Up to 480 Gbps
Number of power supply bays	4	8	8
AC input power	Yes	Yes	Yes
Integrated PoE	Yes	Yes	Yes

C9400-LC-48P Module Specifications

Model: C9400-LC-48P

Number of ports: 48

Port Speed: 10/100/1000

Port type: RJ-45 POE+ IEEE 802.3at, IEEE 802.3af

Operating System: RouterOS

RAM: 128 MB

Storage: 128 MB NAND

MTBF: Approximately 100,000 hours at 25°C

Operating Temperature: -40°C to 70°C

Compatibility & Delivery

Catalyst 9400 Series switch port capacity:
C9404R: 48/96 ports
C9407R: 48/240 ports
C9410R: 48/384 ports

Delivery: Within 3 working days
Packaging: 10 units per anti-static box

Note: Maximum PoE capacity is based on current shipping line cards, with chassis capable of approximately 4800W PoE per slot. Bandwidth specifications vary by supervisor engine model.
