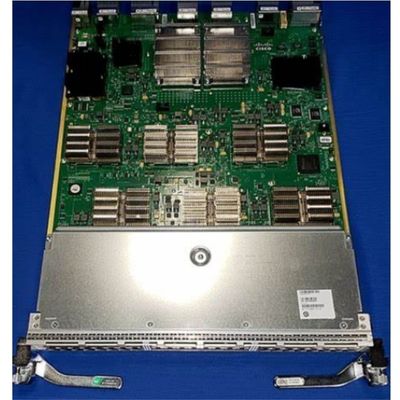

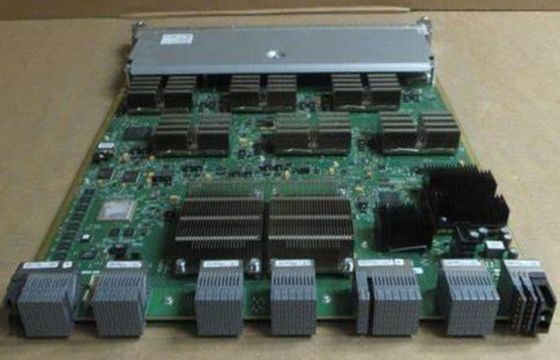

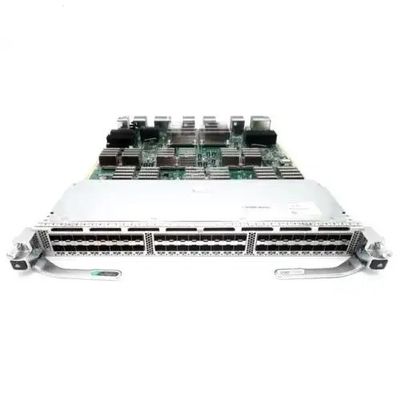

Full-Duplex Half-Duplex Communication Mode 10/100/1000Mbps Ethernet Module N77-F348XP-23 for Networks

Full-Duplex Half-Duplex Communication Mode 10/100/1000Mbps Ethernet Module N77-F348XP-23 for Networks

Full-Duplex Half-Duplex Communication Mode 10/100/1000Mbps Ethernet Module N77-F348XP-23 for Networks

MOQ: 2 pieces
Price: CN¥16,473.92/pieces >=2 pieces
Detail Information
Product Description
Detail Information
Private Mold:
NO
Products Status:
Stock
Ports:
≥ 48
Transmission Rate:
10/100/1000Mbps
Function:
POE
Communication Mode:
Full-Duplex & Half-Duplex
Brand Name:
/
Model Number:
N77-F348XP-23
Place Of Origin:
Shanghai, China
Product Name:
N77-f348xp-23
Condition:
100% Brand-new
Warranty:
One Year
Product Description
Product Description
Full-Duplex Half-Duplex Communication Mode 10/100/1000Mbps Ethernet Module N77-F348XP-23 for Networks 0
Full-Duplex Half-Duplex Communication Mode 10/100/1000Mbps Ethernet Module N77-F348XP-23 for Networks 1
Product Code
N77-F348XP-23
Product compatibility
Supported in all 7700 platform chassis
Software compatibility
NX-OS Software Release 6.2.6 or later
Front-panel LEDs
Status: Green (operational), red (faulty), or orange (module booting)
Link: Green (port enabled and connected), orange (port disabled), off (port enabled and not connected), or blinking green and
orange in conjunction with ID LED blue (port flagged for identification; beacon)
ID: Blue (operator has flagged this card for identification; beacon) or off (module not flagged)
Programming interfaces
XML
Scriptable Command-Line Interface (CLI)
Data Center Network Manager (DCNM) web services
Python
Tool Command Language (TCL) Interpreter
Embedded Event Manager (EEM)
ONE Platform Kit (OnePK ™)
OpenFlow
Physical Interfaces
Connectivity
48 ports of 1 and 10 Gigabit Ethernet (SFP and SFP+)
Maximum port density
768 ports of 10 Gigabit Ethernet in 7700 18-Slot chassis
384 ports of 10 Gigabit Ethernet in 7700 10-Slot chassis
192 ports of 10 Gigabit Ethernet in 7700 6-Slot chassis
48 ports of 1 and 10 gigabit Ethernet in 7700 2-Slot chassis
Queues per port
4 ingress and 8 egress
Virtual Output Queue (VOQ) buffer
72 MB per module
Jumbo frame support for bridged and routed packets
Up to 9216 bytes
Fiber Type
MM
DDM
Yes
Time of delivery
within 3 working days
Package
10pc/anti-static box
