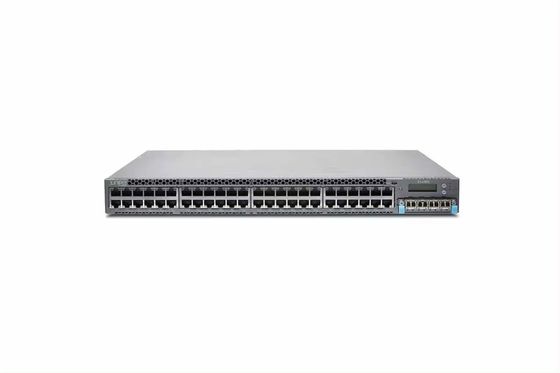

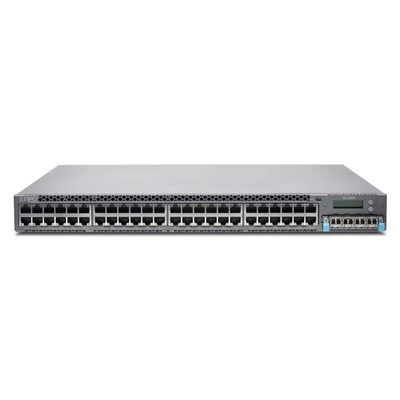

48 Ports PoE Support EX3400-48P Ethernet Switch with Full-Duplex & Half-Duplex Communication Mode

Name: 48 Ports PoE Support EX3400-48P Ethernet Switch with Full-Duplex & Half-Duplex Communication Mode
Brand: Beijing Hui Tong High Tech Limited.
SKU: EX3400-48P
Price: 1,577.00 USD
Availability: InStock

Model Number:	EX3400-48P
MOQ:	1
Price:	$1542-$1612
Payment Terms:	T/T,D/P,D/A

Detail Information

Product Description

Detail Information

Place of Origin:

China

Private Mold:

Products Status:

Stock

Ports:

≥ 48

Transmission Rate:

10/100/1000Mbps

Function:

LACP, POE, QoS, SNMP

Communication Mode:

Full-Duplex & Half-Duplex

Switch Capacity:

Brand Name:

Model Number:

EX3400-48P

Place Of Origin:

Shanghai, China

Size:

Customized Size

Color:

Customizable

Suitable For:

Workstation, Laptop, Desktop

Highlight:

48 Port PoE Ethernet switch

EX3400-48P networking switch

Full-Duplex Half-Duplex Ethernet switch

Product Description

EX3400-48P Ethernet Switch with PoE Support

Customized EX3400-48P Ethernet Switch delivering cloud-grade, high-density Ethernet switching solutions that improve networking economics across data center, campus, and branch environments. Our customized model offers enhanced Power over Ethernet (PoE) functionality and tailored sizing to meet specific deployment requirements.

EX3400 Series Technical Specifications

Model	Port Configuration	Backplane Speed	Data Rate	Throughput
EX3400-24T	24-port 10/100/1000BASE-T with 4 SFP+ and 2 QSFP+ uplink ports	160 Gbps	288 Gbps	214 Mpps (wire speed)
EX3400-24P	24-port 10/100/1000BASE-T (24 PoE+ ports) with 4 SFP+ and 2 QSFP+ uplink ports	160 Gbps	288 Gbps	214 Mpps (wire speed)
EX3400-48T	48-port 10/100/1000BASE-T, 4 x 1/10GbE SFP/SFP+, 2 x 40GbE QSFP+	160 Gbps	336 Gbps	250 Mpps (wire speed)
EX3400-48P	48-port 10/100/1000BASE-T (48 PoE+ ports) with 4 SFP+ and 2 QSFP+ uplink ports	160 Gbps	336 Gbps	250 Mpps (wire speed)

Note: Optics for SFP+ and QSFP+ uplink ports are sold separately

Additional Juniper Switch Series

EX2300 Series

Model	Backplane Speed	Data Rate	Throughput	Ports
EX2300-24T	80 Gbps	128 Gbps	95 Mpps (wire speed)	24-port 10/100/1000BASE-T, 4 x 1/10GbE SFP/SFP+
EX2300-24P	80 Gbps	128 Gbps	95 Mpps (wire speed)	24-port 10/100/1000BASE-T PoE+, 4 x 1/10GbE SFP/SFP+
EX2300-48P	80 Gbps	176 Gbps	130 Mpps (wire speed)	48-port 10/100/1000BASE-T PoE+, 4 x 1/10GbE SFP/SFP+

EX4300 Series

Model	Description	Backplane Speed	Data Rate	Throughput
EX4300-48T	48-port 10/100/1000BASE-T + 350 W AC PS (QSFP+ DAC for Virtual Chassis ordered separately)	320 Gbps (Virtual Chassis)	496 Gbps	369 Mpps (wire speed)
EX4300-48P	48-port 10/100/1000BASE-T PoE-plus + 1100 W AC PS (provides 950 W PoE+ power) (QSFP+ DAC for Virtual Chassis ordered separately)	320 Gbps (Virtual Chassis)	496 Gbps	369 Mpps (wire speed)
