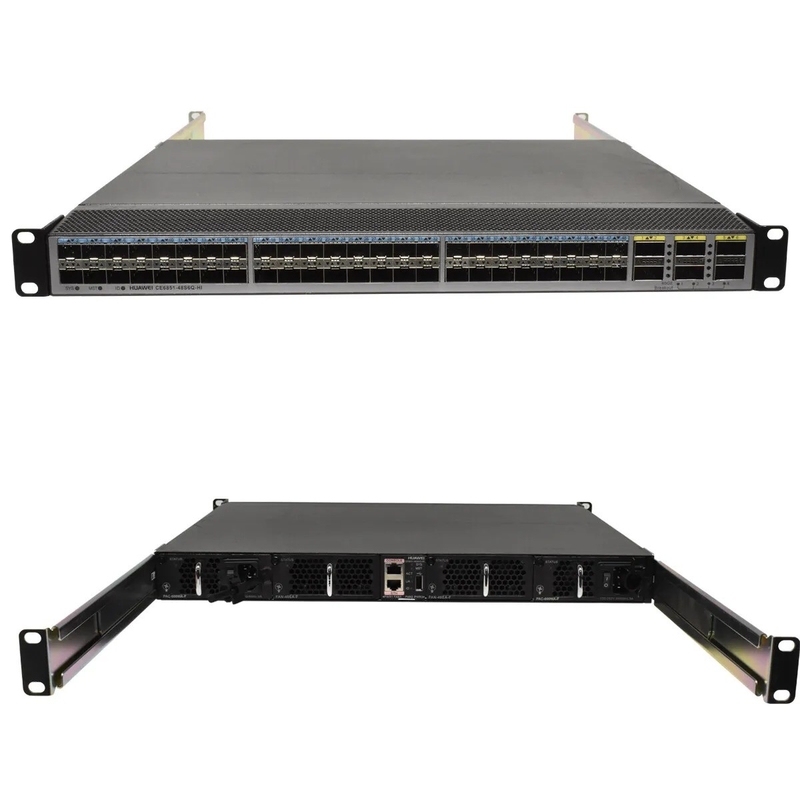

CE6800 Series 48-Port 10G SFP and 6-Port 40GE QSFP Data Center Switches with Full-Duplex Half-Duplex Communication Mode

Price:	CN¥15,895.88/pieces 1-1 pieces

Detail Information

Product Description

Detail Information

Private Mold:

Products Status:

Stock

Ports:

≥ 48

Transmission Rate:

10/100/1000Mbps

Function:

LACP, POE, QoS, SNMP

Communication Mode:

Full-Duplex & Half-Duplex

Switch Capacity:

Brand Name:

Model Number:

CE6851-48S6Q-HI

Place Of Origin:

Shanghai, China

Size:

Customized Size

Color:

Customizable

Suitable For:

Workstation, Laptop, Desktop

Product Description

10G Base-T Ports	0
SFP+ Ports	48
FC Ports	0
QSFP+ Ports	6
Switching Capacity	1.44 Tbit/s
Forwarding Rate	1,080 Mpps
Airflow Design	Front-to-back or back-to-front
Device Virtualization	iStack
Device Virtualization		Super Virtual Fabric (SVF)
Network Virtualization	M-LAG
Network Virtualization		TRILL
VM Awareness	Agile Controller
Network Convergence	FCoE
Network Convergence		DCBX, PFC, and ETS
Programmability	OpenFlow
		OPS
		Puppet, and OVSDB plugins released on open source websites
		Linux container for open source and customization programming
Traffic Analysis	NetStream
Traffic Analysis		sFlow
VLAN	Adding access, trunk, and hybrid interfaces to VLANs
		Default VLAN
		QinQ
		MUX VLAN
		GVRP
ACL	Ingress: 3,750 Egress: 1,000
MAC Address Table	Maximum: 288k
		Dynamic learning and aging of MAC addresses
		Static, dynamic, and blackhole MAC address entries
		Packet filtering based on source MAC addresses
		MAC address limiting based on ports and VLANs
ARP (maximum)	128k
IPv4 FIB (maximum)	256k
IP Routing	IPv4 routing protocols, such as RIP, OSPF, BGP, and IS-IS
IP Routing		IPv6 routing protocols, such as RIPng, OSPFv3, IS-ISv6, and BGP4+
IPv6 FIB (maximum)	128k
IPv6	IPv6 Neighbor Discovery (ND)
		Path MTU Discovery (PMTU)
		TCP6, ping IPv6, tracert IPv6, socket IPv6, UDP6, and Raw IP6
Multicast FIB (maximum)	8k
Multicast	IGMP, PIM-SM, PIM-DM, MSDP, and MBGP
		IGMP snooping
		IGMP proxy
		Fast leave of multicast member interfaces
		Multicast traffic suppression
		Multicast VLAN
Reliability	LACP
		STP, RSTP, VBST, and MSTP
		BPDU protection, root protection, and loop protection
		Smart Link and multi-instance
		DLDP
		ERPS (G.8032)
		VRRP, VRRP load balancing, and BFD for VRRP
		BFD for BGP/IS-IS/OSPF/Static route
QoS	Traffic classification based on Layer 2 headers, Layer 3 protocols, Layer 4 protocols, and 802.1p priority
		Actions of ACL, CAR, re-marking, and scheduling
		Queue scheduling algorithms, including PQ, WRR, DRR, PQ + WRR, and PQ + DRR
		Congestion avoidance mechanisms, including WRED and tail drop
		Traffic shaping
Configuration and Maintenance	Console, Telnet, and SSH terminals
		Network management protocols, such as SNMPv1/v2c/v3
		File upload and download through FTP and TFTP
		BootROM upgrade and remote upgrade
		802.3az Energy Efficient Ethernet (EEE)
		Hot patches
		User operation logs
		ZTP
Security and Management	802.1x authentication
		Command line authority control based on user levels, preventing unauthorized users from using commands
		DoS, ARP, and ICMP attack defenses
		Port isolation, port security, and sticky MAC
		Binding of the IP address, MAC address, interface number, and VLAN ID
		Authentication methods, including AAA, RADIUS, and HWTACACS
		Remote Network Monitoring (RMON)
Dimensions (W x D x H)	442 mm x 420 mm x 43.6 mm
Weight (fully loaded)	8.7 kg (19.2 lb)
Environmental Parameters	Operating temperature: 0°C to 40°C (32°F to 104°F) (0m to 1,800m) Storage temperature: -40°C to 70°C (-40°F to 158°F) Relative humidity: 5% RH to 95% RH, non-condensing
Operating Voltage	AC: 90V to 290V DC: -38.4V to -72V
Max. Power Consumption	245W
