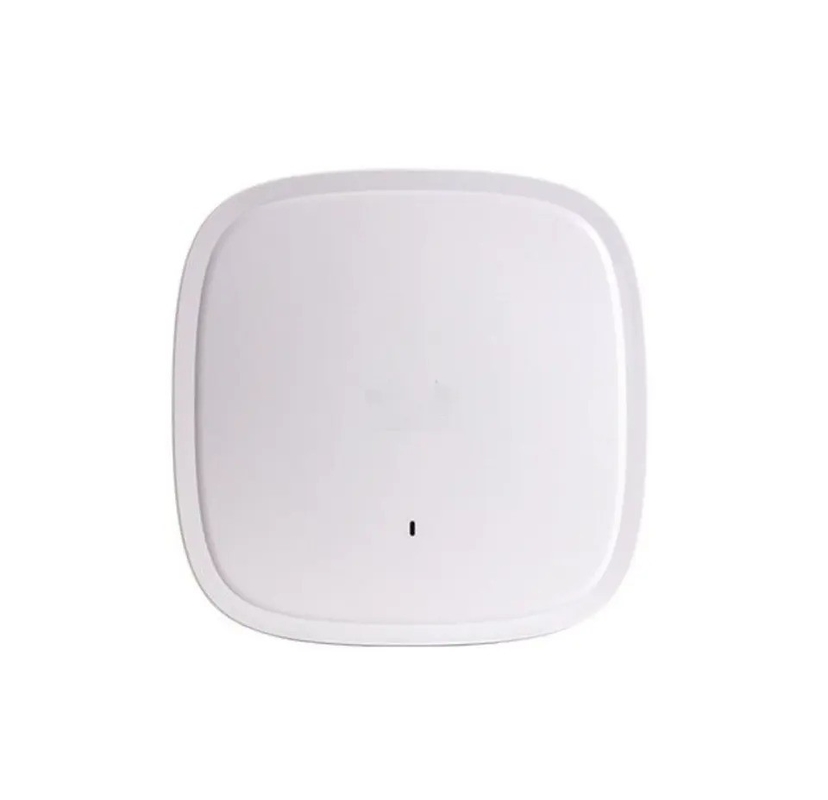

Customized C9120AXI-E 9120AX Series Access Point Wi Fi 6 Wireless Access Point AP

MOQ:	2 pieces
Price:	CN¥5,381.80/pieces >=2 pieces

Detail Information

Product Description

Detail Information

Private Mold:

Products Status:

Stock, Used

Brand Name:

Place Of Origin:

Shanghai, China

Product Name:

C9120axi-e

Size:

Customized Size

Color:

Customizable

Highlight:

9120ax access point ap

9120ax access point controller

Product Description

Model Number	C9120AXI-E
Description	Cat alyst 9120AX Access Point, internal antennas; Wi-Fi 6; 4x4:4 MIMO, E Domain
Software	Unified Wireless Network Software Release 8.9.x or later IOS ® XE Software Release 16.11 with AP Device Pack, or later
Supported wireless LAN controllers	Cat alyst 9800 Series Wireless Controllers 3500, 5520, and 8540 Series Wireless Controllers and Virtual Wireless Controller
802.11n version 2.0 (and related) capabilities	4x4 MIMO with four spatial streams Maximal Ratio Combining (MRC) 802.11n and 802.11a/g beamforming 20- and 40-MHz channels PHY data rates up to 890 Mbps (40 MHz with 5 GHz and 20 MHz with 2.4 GHz) Packet aggregation: A-MPDU (transmit and receive), A-MSDU (transmit and receive) 802.11 Dynamic Frequency Selection (DFS) Cyclic Shift Diversity (CSD) support
802.11ac	4x4 downlink MU-MIMO with four spatial streams MRC 802.11ac beamforming 20-, 40-, 80-, and 160-MHz channels PHY data rates up to 3.47 Gbps (160 MHz with 5 GHz) Packet aggregation: A-MPDU (transmit and receive), A-MSDU (transmit and receive) 802.11 DFS CSD support
802.11ax	4x4 downlink MU-MIMO with four spatial streams Uplink/downlink OFDMA TWT BSS coloring MRC 802.11ax beamforming 20-, 40-, 80-, and 160-MHz channels PHY data rates up to 5.38 Gbps (160 MHz with 5 GHz and 20 MHz with 2.4 GHz) Packet aggregation: A-MPDU (transmit and receive), A-MSDU (transmit and receive) 802.11 DFS CSD support
Integrated antenna	Flexible radio (either on 2.4GHz or on 5GHz) 2.4 GHz, peak gain 4 dBi, internal antenna, omnidirectional in azimuth 5 GHz, peak gain 5 dBi, internal antenna, omnidirectional in azimuth Dedicated 5GHz radio 5 GHz, peak gain 4 dBi, internal antenna, omnidirectional in azimuth
Power Method	802.3af PoE
Power Supply	PoE Injector 48VDC -0.5A Gigabit
Maximum Power Consumption	9W
Max TX Power	22 dBm
BSSID	Up to Four per Radio
Power Save	Supported
Wireless Security	WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES)
Certifications	CE, FCC, IC
Mounting	Wall/Pole (Pole Kit Included)
Operating Temperature	-40 to 70° C (-40 to 158° F)
Operating Humidity	5 to 95% Noncondensing
