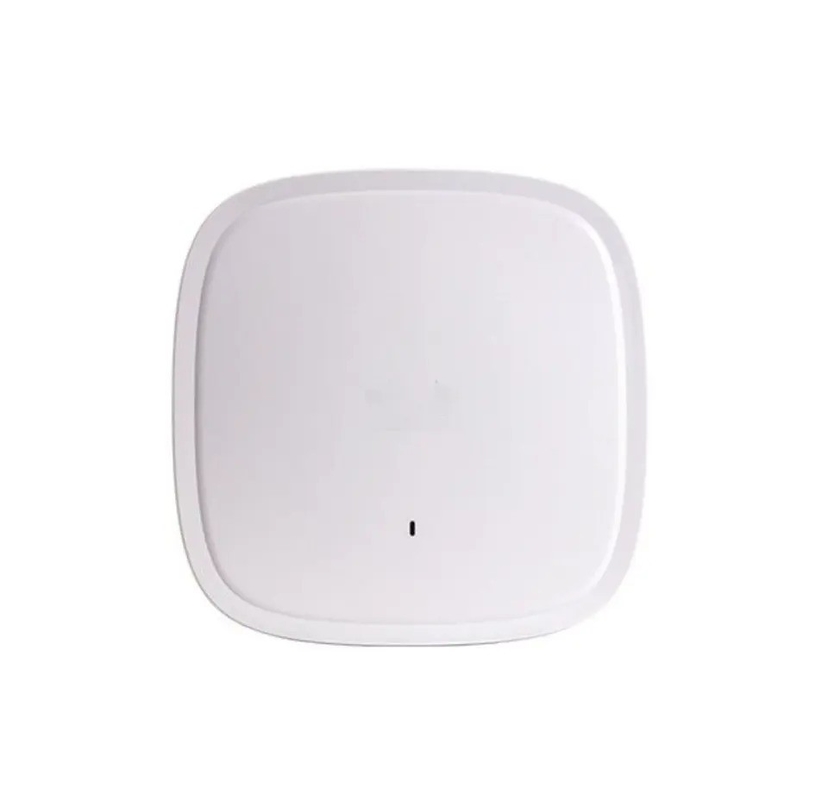

9120AX Series Ceiling Access Point Wifi 6 Access Point AP C9120AXE-R

MOQ:	2 pieces
Price:	CN¥6,545.43/pieces >=2 pieces

Detail Information

Private Mold:

Products Status:

Stock, Used

Brand Name:

Place Of Origin:

Shanghai, China

Product Name:

C9120axe-r

Size:

Customized Size

Color:

Customizable

Highlight:

Product Description

Customized 9120AX Series WiFi 6 wireless access point AP C9120AXE-R

Product Description

Model Number	C9120AXE-R
Description	9120AXE Series, H Domain
Software	• Cisco Unified Wireless Network Software Release 8.9.x or later • Cisco IOS® XE Software Release 16.11 with AP Device Pack, or later
Supported wireless LAN controllers	• Cisco Catalyst 9800 Series Wireless Controllers • Cisco 3500, 5520, and 8540 Series Wireless Controllers and Cisco Virtual Wireless Controller
Dimensions (W x L x H)	8.5 x 8.05x 2.0" (21.6 x 21.6 x 5.1 cm)
System memory	• 2048 MB DRAM • 1024 MB flash
Frequency band and 20-MHz operating channels	H (H regulatory domain): • 2.412 to 2.472 GHz; 13 channels • 5.180 to 5.320 GHz; 8 channels • 5.745 to 5.825 GHz; 5 channels
	Note: The actual number of users varies according to the environment
Operating Temperature	–10°C to +50°C
Antenna Type	AirEngine 6761-21: Built-in Dynamic-Zoom Smart Antennas
Antenna Type		AirEngine 6761-21E: External antennas
MIMO:Spatial Streams	2.4 GHz: 4 x 4:4, 5 GHz: 4 x 4:4
Radio Protocols	802.11a/b/g/n/ac/ac wave2/ax
Maximum Rate	3.55 Gbit/s
