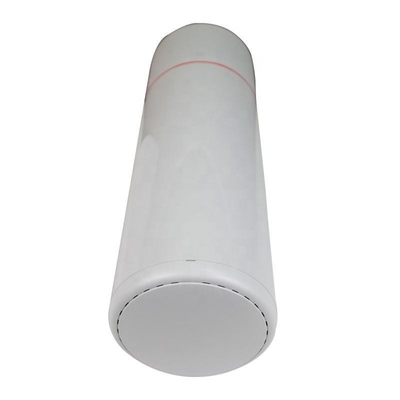

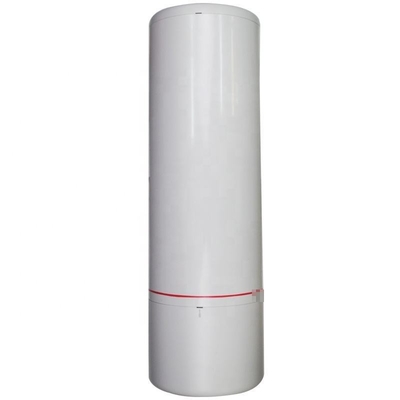

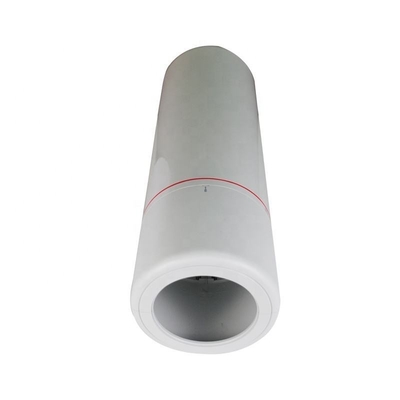

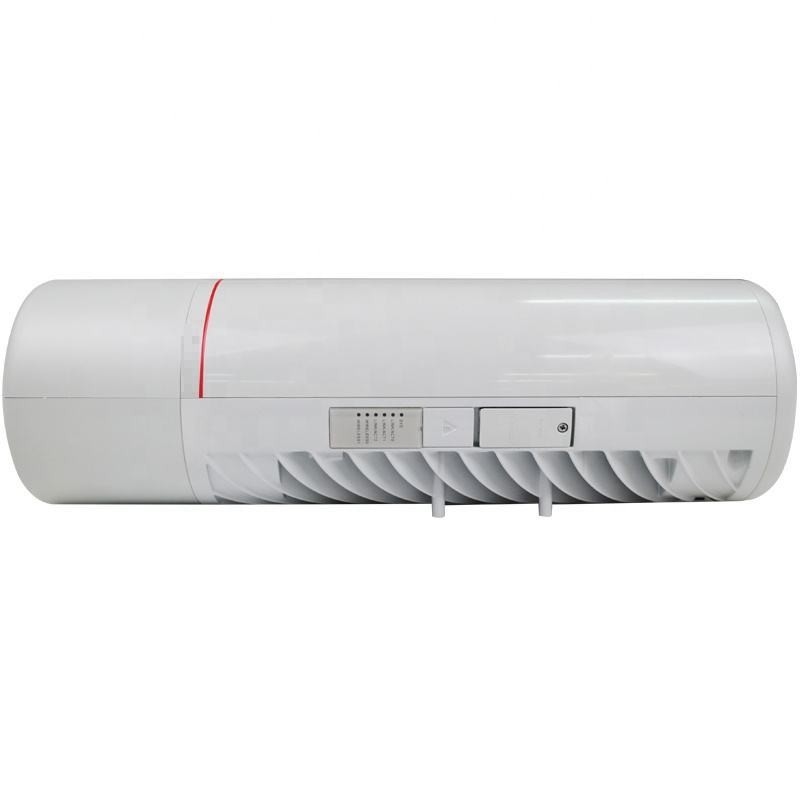

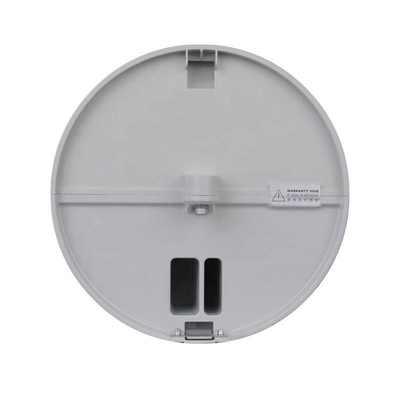

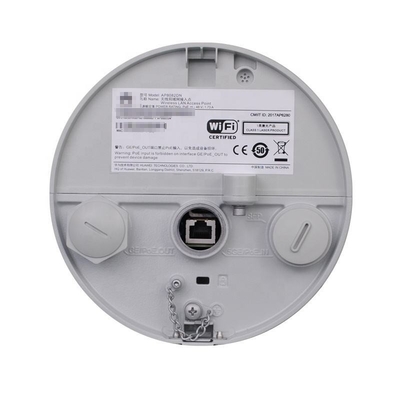

Name: access point AP8082DN 802.11ac Wave 2 outdoor Access Points
Brand: Shanghai Apying Technology Co., Ltd.
SKU: AP8082DN
Price: 2.00 USD
Availability: InStock

Brand Name:	/
Model Number:	AP8082DN
Price:	CN¥3,679.99/units 1-49 units

Detail Information

Product Description

Detail Information

Place of Origin:

Shanghai, China

Chipset:

Access Point

Application:

Access Point

Product Description

Specification

Dimensions (Length x Diameter)	387 mm x φ165 mm
Power Input	PoE power supply: In compliance with IEEE 802.3at/bt; only the 2.5G/5G port supports PoE input
Maximum Power Consumption	802.3bt power supply: 45W (excluding the output power of the PoE OUT port) 802.3at power supply: 25.5W (the PoE OUT function and GE/POE OUT ports are unavailable, 5 GE and SFP are mutually exclusive) Notes: The actual maximum power consumption depends on local laws and regulations. In 802.3at power supply mode, the radio power is reduced, and the 2.4 GHz radio frequency works in 2 x 4 MIMO mode
Operating Temperature	–40°C to 65°C
Antenna Type	AP8082DN: Built-in directional antennas (horizontal 60°, vertical 30°)
Maximum Number of Concurrent Users	≤ 512
Maximum Transmit Power	AP8082DN: 2.4G: 29 dBm (combined power) 5G: 28 dBm (combined power) Note: The actual transmit power depends on local laws and regulations
MIMO: Spatial Streams	4 x 4:4
Radio Protocols	802.11a/b/g/n/ac/ac Wave 2
Maximum Rate	AP8082DN: 2.53 Gbit/s
