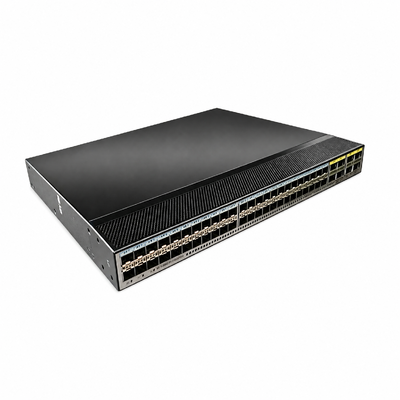

Original New CE6866-48S8CQ-P L3 Managed Core Switch 48x25GE 8x100GE Data Center Ethernet Switch

Name: Original New CE6866-48S8CQ-P L3 Managed Core Switch 48x25GE 8x100GE Data Center Ethernet Switch
Brand: Beijing Hui Tong High Tech Limited.
SKU: CE6866-48S8CQ-P
Price: 6.00 USD
Availability: InStock

Model Number:	CE6866-48S8CQ-P
MOQ:	1
Price:	€6,233.67-6,305.74

Detail Information

Product Description

Detail Information

Place of Origin:

Beijing

Communication Mode:

Full-Duplex & Half-Duplex

Transmission Rate:

10/100/1000Mbps

Function:

LACP, POE, QoS, SNMP, Stackable, VLAN Support

Ports:

≥ 48

Private Mold:

Products Status:

Stock

Packaging Details:

New Factory Sealed

Condition:

NIB

Warranty:

1 Year

Type:

Switch

Product Description

Products Description

CE6866-48S8CQ-P L3 Managed Core Switch 48x25GE 8x100GE Data Center Ethernet Switch Cheap Price

Other part numbers	02353EGN-001 (CE6866-48S8CQ-P switch (4825G SFP28, 8100G QSFP28, without fan and power modules)) 02353EGL-001 (CE6866-48S8CQ-P switch (4825G SFP28, 8100G QSFP28, 2AC power modules, 4fan modules, port-side exhaust))
Installation Type	Cabinet Installation
Depth [mm]	420 mm
Chassis height [U]	1
Wide [mm]	442 mm
Height [mm]	43.6 mm
Weight with packaging [kg(lb)]	11.9 kg (26.24 lb)
Weight without packaging [kg(lb)]	6.7 kg (14.8 lb) (excluding optical modules, power modules, and fan modules)
Maximum power consumption [W]	- 48 x 50G + 8 x 200G: 619 W (100% throughput, downlink 2 W 50G optical modules, uplink 6.5 W 200G optical modules, 40°C, dual power modules) - 48 x 25G + 8 x 100G: 544 W (100% throughput, downlink 1.5 W 25G optical modules, uplink 5 W 100G optical modules, 40°C, dual power modules)
Typical power consumption [W]	- 48 x 50G + 8 x 200G: 374 W (50% throughput, copper cables on all ports, normal temperature, dual power modules) - 48 x 25G + 8 x 100G: 360 W (50% throughput, copper cables on all ports, normal temperature, dual power modules), 407 W (50% throughput, short-distance optical modules on all ports, normal temperature, dual power modules)
Static power consumption [W]	322 W
Heat dissipation mode	Air cooling
Maximum heat dissipation [BTU/hour]	- 48 x 50G + 8 x 200G: 2110 BTU/hour (100% throughput, downlink 2 W 50G optical modules, uplink 6.5 W 200G optical modules, 40°C, dual power modules) - 48 x 25G + 8 x 100G: 1858 BTU/hour (100% throughput, downlink 1.5 W 25G optical modules, uplink 5 W 100G optical modules, 40°C, dual power modules)
Typical heat dissipation [BTU/hour]	- 48 x 50G + 8 x 200G: 1277 BTU/hour (50% throughput, copper cables on all ports, normal temperature, dual power modules) - 48 x 25G + 8 x 100G: 1229 BTU/hour (50% throughput, copper cables on all ports, normal temperature, dual power supplies), 1389 BTU/hour (50% throughput, short-distance optical modules on all ports, normal temperature, dual power modules)
Static heat dissipation [BTU/hour]	1100 BTU/hour
Power supply mode	AC,DC,HVDC
Rated input voltage [V]	- 600 W AC&240 V DC power module: 100 V AC to 240 V AC, 50/60 Hz; 240 V DC - 1000 W DC power module: –48 V DC to –60 V DC - 1200 W high-voltage DC power module: 240 V DC to 380 V DC
Input voltage range [V]	- 600 W AC&240 V DC power module: 90 V AC to 290 V AC, 45 Hz to 65 Hz; 190 V DC to 290 V DC - 1000 W DC power module: –38.4 V DC to –72 V DC - 1200 W high-voltage DC power module: 190 V DC to 400 V DC
Maximum input current [A]	- 600 W AC&240 V DC power module: 8 A (100 V AC to 240 V AC); 4 A (240 V DC) - 1000 W DC power module: 30 A (–48 V DC to –60 V DC) - 1200 W high-voltage DC power module: 8 A
Rated output power [W]	- 600 W AC&240 V DC power module: 600 W - 1000 W DC power module: 1000 W - 1200 W high-voltage DC power module: 1200 W
Memory	DRAM: 8 GB
NOR Flash	64 MB
NAND Flash	4 GB
USB	It can be used for log backup and USB-based deployment. This function is reserved.
Console port	RJ45
Downlink Service interface	48 x 25GE SFP28/48 x 50GE SFP56 1. 25GE ports can be used as 10GE ports. 50GE ports can be used as 25GE ports but not 10GE or GE ports. 2. When 25GE ports are upgraded to 50GE ports, eight ports form a group. Note: 1. Support for optical modules: (1) In the case of port-side air intake, downlink ports support 10G-AOC/SR/LR/ER/ZR and 25G-AOC/SR/LR. (2) In the case of port-side air exhaust, downlink ports support 10G-AOC/SR/LR and 25G-AOC/SR/LR. 2. Support for copper cables: When 50GE copper cables are used, contact Huawei engineers for interconnection verification.
Uplink Service interface	8 x 100GE QSFP28/8 x 200GE QSFP56 1. Each 100GE port can be configured as a 40GE port, and each 200GE port can be configured as a 100GE/40GE port. 2. When 100GE ports are upgraded to 200GE, four such ports form a group. 3. 100GE ports are divided into groups 1 to 4 and 5 to 8. Four ports in each group are split together. Ports 2, 4, 6, and 8 can be split into four 25GE ports (whose speeds can be set to 10 Gbit/s). After the split, ports 1, 3, 5, and 7 cannot be used. A 100GE port cannot be split into 2 x 50GE (50GE: 2 x 25GE) ports. 4. 200GE ports cannot be split. Note: 1. Support for optical modules: (1) In the case of port-side air intake, 100GE/200GE ports support 100G-AOC/SR4/CWDM4/LR4/4WDM. (2) In the case of port-side air exhaust, 100GE/200GE ports support 100G-AOC/SR4/CWDM4/LR4 optical modules, but do not support 50GE and 200GE optical modules. 2. Support for copper cables: When 200GE copper cables are used, contact Huawei engineers for interconnection verification.
Service port supporting the stack function	Reserved function. This function is not enabled.
RTC	Supported
Switching capacity [bps,bit/s]	To obtain data of this specification item, see the corresponding datasheet or contact the product sales personnel.
Redundant fans	The device supports 3+1 backup of fan modules that work in hot standby mode. The system can operate properly for a short period of time after a single fan module fails. You are advised to replace the faulty fan module immediately.
Redundant power supply	1+1 backup
Number of power modules	2
Power supply surge protection	- AC power supply protection: 6 kV in common mode and 6 kV in differential mode - 240 V HVDC power supply protection: 4 kV in common mode and 2 kV in differential mode - –48 V DC power supply protection: 4 kV in common mode and 2 kV in differential mode - 380 V HVDC power supply protection: 4 kV in common mode and 2 kV in differential mode
Types of fans	Pluggable
Number of fans	4
Airflow direction	Port-side air intake or port-side air exhaust, depending on the fan modules and power modules that are used. The fan modules and power modules must have the same airflow direction.
Storage temperature [°C(°F)]	-40ºC to +70ºC (-40°F to +158°F)
Long-term operating temperature [°C(°F)]	0°C to 40°C (32°F to 104°F) at an altitude of 0–1800 m (0–5906 ft.) Note: When the altitude is 1800–5000 m (5096–16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.).
Storage relative humidity [RH]	5% to 95% RH, non-condensing
Long-term operating relative humidity [RH]	5% RH to 95% RH, noncondensing
Storage altitude [m(ft.)]	≤ 5000 m (16404 ft.)
Long-term operating altitude [m(ft.)]	≤ 5000 m (16404 ft.)
MTBF [year]	30.32 years
MTTR [hour]	1.5 hours
Noise at high temperature (40°C, sound pressure)	Front-to-back airflow: 67.6 dB(A) on average (maximum: 73.4 dB(A)) Back-to-front airflow: 68 dB(A) on average (maximum: 75.4 dB(A))
Noise at normal temperature (27°C, sound pressure)	Front-to-back airflow: 49.8 dB(A) on average (maximum: 53.6 dB(A)) Back-to-front airflow: 47.8 dB(A) on average (maximum: 51.2 dB(A))
Availability	0.9999943515
