RXD1219sas 2U Expansion Unit Designed to Work Automatically When Connected

Name: RXD1219sas 2U Expansion Unit Designed to Work Automatically When Connected
Brand: Beijing Hui Tong High Tech Limited.
SKU: RXD1219sas
Price: 1.00 USD
Availability: InStock

Brand Name:	Synolog
Model Number:	RXD1219sas
MOQ:	2
Price:	£1,526.72-1,679.39

Detail Information

Product Description

Detail Information

Place of Origin:

Beijing, China

Private Mold:

Products Status:

Stock

Product Name:

RXD1219sas

Drive Bays:

Warranty:

3years

Highlight:

2U server expansion unit

automatic SAS expansion unit

workstation storage expansion unit

Product Description

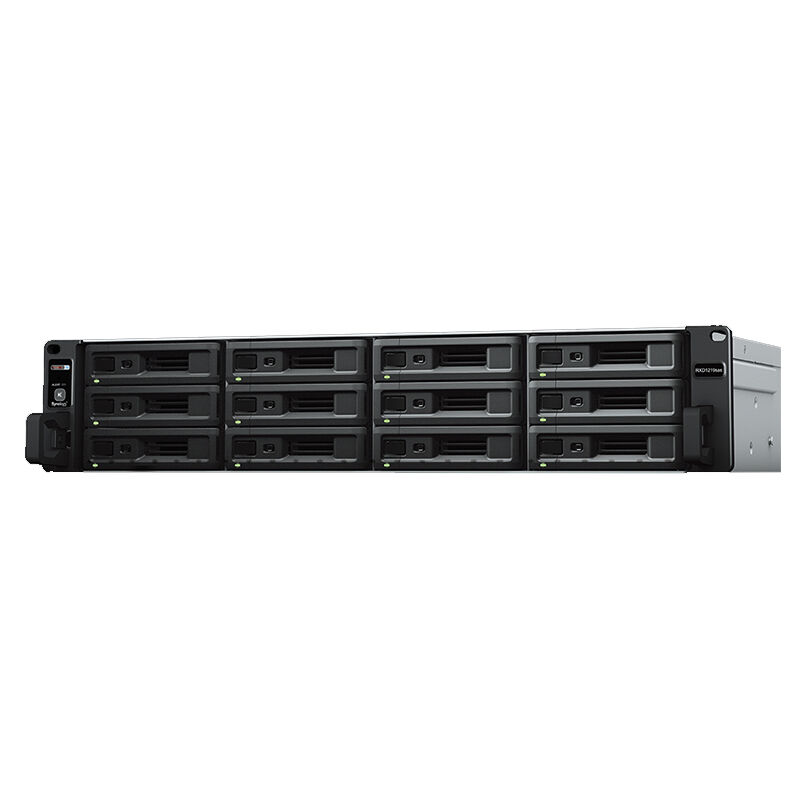

RXD1219sas 2U Expansion Unit Designed to Work Automatically When Connected

Hardware Specifications

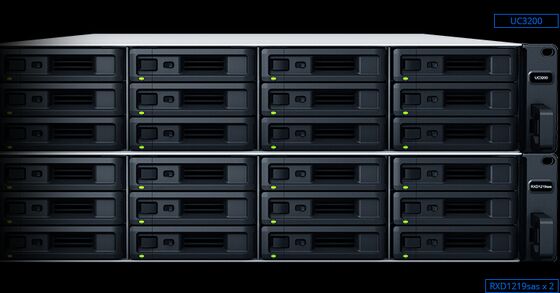

Applied Models	Supports creating volumes across different units	SA series:SA3400D, SA3200D
	Supports creating volumes on a single unit only	UC series:UC3400, UC3200
Storage	Drive Bays	12
	Drive Type (See all supported drives)	2.5" dual-port SAS SSD 2.5" dual-port SAS HDD 3.5" dual-port SAS HDD
	Hot Swappable Drive*	√
	Notes	Synolog only guarantees full functionality, reliability, and performance for Synolog drives listed on the compatibility list. The use of non-validated components may limit certain functionality and result in data loss and system instability. "Compatible drive type" indicates drives that have been tested to be compatible with Synolog products. This term does not indicate the maximum connection speed of each drive bay.

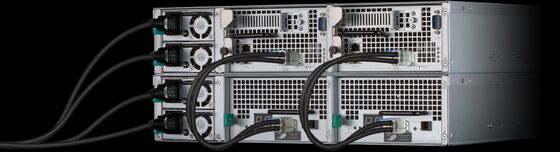

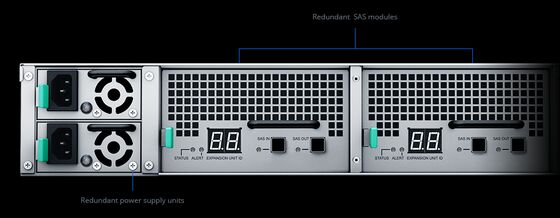

External Ports	SAS IN-port	2
	SAS OUT-port	2
Appearance	Size (Height x Width x Depth)	88 mm x 430.5 mm x 692 mm
	Size (Height x Width x Depth) (with server ears)	88 mm x 482 mm x 724 mm
	Weight	18.2 kg
	Rack Installation Support*	4-post 19" rack (Synolog Rail Kit - RKS-02)
	Notes	The rail kit is sold separately
Power	Power Supply Unit / Adapter	500 W
	AC Input Power Voltage	100V to 240V AC
	Power Frequency	50/60 Hz, Single Phase
	Power Consumption*	299.79 W (Access)
	British Thermal Unit	1022.93 BTU/hr (Access)
	Redundant Power Supply	√
	Notes	Power consumption is measured when it is fully loaded with Seagate ST3600057SS hard drive(s).
Temperature	Operating Temperature	0°C to 35°C (32°F to 95°F)
	Storage Temperature	-20°C to 60°C (-5°F to 140°F)
	Operating Humidity	8% to 80% RH
	Storage Humidity	5% to 95% RH
Others	System Fan	60 mm x 60 mm x 4 pcs
Warranty	5 Years
	Notes	The warranty period starts from the purchase date as stated on your purchase receipt. (Learn more)
Packaging
Packaging Content	Main Unit X 1 Accessory Pack X 1 AC Power Cord X 2 Expansion Cable: Mini-SAS HD X 2 Quick Installation Guide X 1
Optional Accessories	Enterprise Series 3.5" SAS HDD: HAS5300 Series Rail Kit Sliding: RKS-02
