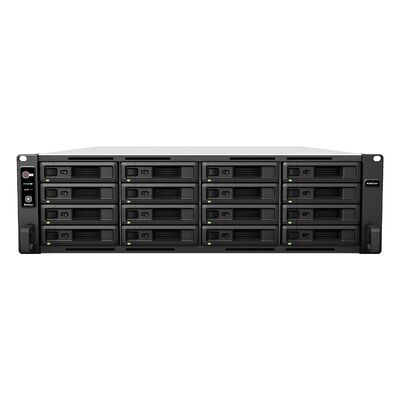

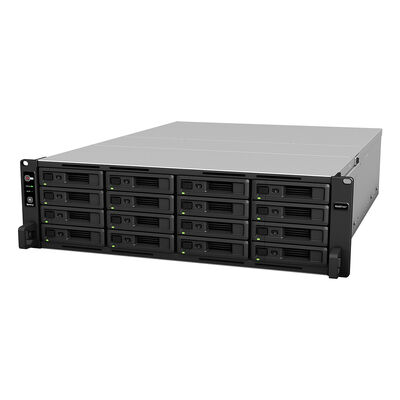

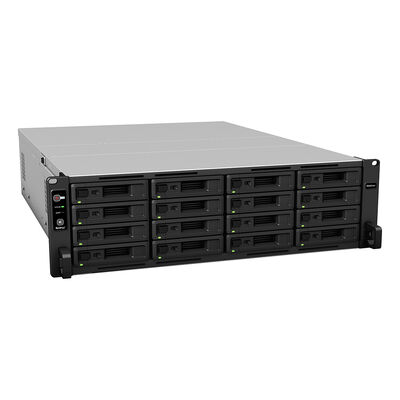

Server RackStation RS4021xs+ Intel Xeon D-1541 D4EC-2666-16G HAT5300-16T Enterprise-class NAS Server

Server RackStation RS4021xs+ Intel Xeon D-1541 D4EC-2666-16G HAT5300-16T Enterprise-class NAS Server

Server RackStation RS4021xs+ Intel Xeon D-1541 D4EC-2666-16G HAT5300-16T Enterprise-class NAS Server

Model Number: RS4021XS
MOQ: 2
Price: $6,237-6,377
Detail Information
Product Description
Detail Information
Place of Origin:
Beijing, China
Processor Type:
Intel Xeon D-1541
Type:
Rack
Products Status:
Stock
Product Name:
RS4021XS
Processor:
Intel Xeon D-1541
RAM:
64GB
Warranty:
3year
Highlight:

Enterprise NAS server with Xeon D-1541

,

RS4021xs+ rackmount server 16TB storage

,

Server RackStation with HAT5300-16T drives

Product Description
Product Description

Server RackStation RS4021xs+ Intel Xeon D-1541 Enterprise-class NAS server

Server RackStation RS4021xs+ Intel Xeon D-1541 D4EC-2666-16G HAT5300-16T Enterprise-class NAS Server 0

hardware
processor
 Processor model Intel Xeon D-1541
  Number of CPUs 1
  CPU core 8
  Processor architecture 64 bit
  processor clock 2.1 (base frequency) / 2.7 (maximum overclock) GHz
Memory
 system memory 16GB DDR4 ECC UDIMM
  Pre-installed memory modules 16GB (16GB x 1)
  Total memory slots 4
  Maximum memory capacity 64GB (16GB x 4)
  Remark
  • Synology reserves the right to replace memory components with the same or higher frequency depending on the supplier's product availability. Its compatibility and stability have been subject to the same rigorous testing, so users can use it with confidence.
  • Please choose Synology original memory modules for the best compatibility and reliability. If you do not use Synology memory modules when expanding memory capacity, Synology will not be able to provide full product warranty or technical support.
  • For further information on recommended memory configurations, please refer to the Synology product's hardware installation guide .
store
 Number of disk slots 16
  The maximum number of disk slots for installing expansion devices 40 (RX1217 x 2)
  Compatible disk types* (see all supported disks)
  • 3.5" SATA HDD
  • 2.5-inch SATA SSD
  Disk hot-plug support*

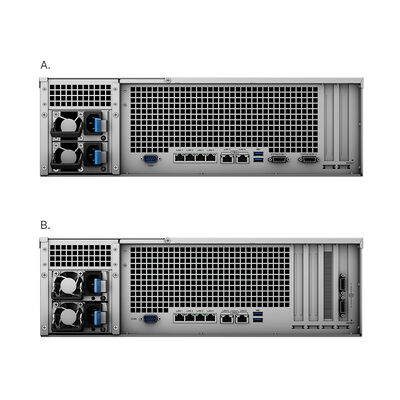

external port
 RJ-45 1GbE network port 4
  RJ-45 10GbE network port 2
  USB 3.2 Gen 1 port* 2
  expansion port 2
  Expansion port type Infiniband
  Remark The USB-IF renamed the standard formerly known as USB 3.0 to USB 3.2 Gen 1 in 2019.
PCIe
 PCIe expansion 2 x Gen3 x8 slots (x8 link)

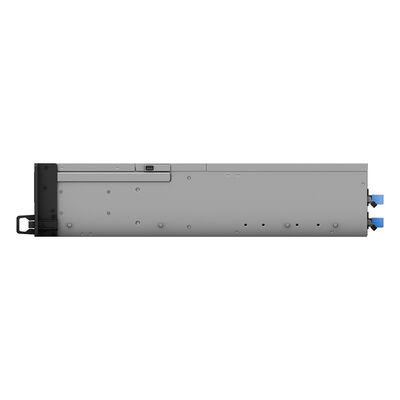

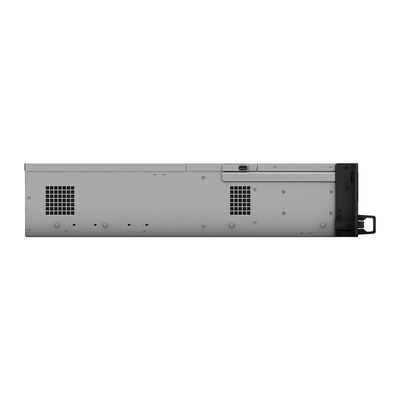

Exterior
 Appearance specifications (rack unit) 3U
  Size (height x width x depth) 132.3 mm x 482 mm x 656.5 mm
  weight 17.4 kg
  Rack mount support* Four-post 19-inch (Synology Rack Kit- RKS-02 )
  Remark Rack kit needs to be purchased separately
other projects
 System fan 80 mm x 80 mm x 3 pcs
  fan mode
  • full speed mode
  • low temperature mode
  • silent mode
  Replaceable system fan
  Power automatic recovery
  Noise value* 44.7dB(A)
  Timer switch
  Wake on LAN
  Power supply/transformer 800 watts
550 watts*
Warranty
 5 years
  Remark The warranty period begins on the purchase date stated on the purchase receipt. (see more)
Package Contents
  • HostX1
  • Accessory packX 1
  • Power cordX 2
  • Quick installation guide x1
Optional accessories
  • DDR4 ECC UDIMM: D4EC-2666-16G
  • Expansion unit: RX1217 / RX1217RP
  • Enterprise Series 3.5" SATA HDD: HAT5300 Series
  • Enterprise Series 2.5" SATA SSD: SAT5200 Series
  • M.2 SSD & 10GbE composite riser card: E10M20-T1
  • M.2 SSD adapter card: M2D20
  • 25GbE network interface card: E25G30-F2
  • 10GbE network interface card: E10G21-F2 / E10G30-T2 / E10G18-T1
  • Sliding rack kit: RKS-02

Related Products

Server RackStation RS4021xs+ Intel Xeon D-1541 D4EC-2666-16G HAT5300-16T Enterprise-class NAS Server 2

Packaging & Shipping

Server RackStation RS4021xs+ Intel Xeon D-1541 D4EC-2666-16G HAT5300-16T Enterprise-class NAS Server 4Server RackStation RS4021xs+ Intel Xeon D-1541 D4EC-2666-16G HAT5300-16T Enterprise-class NAS Server 6

Payment Terms

Server RackStation RS4021xs+ Intel Xeon D-1541 D4EC-2666-16G HAT5300-16T Enterprise-class NAS Server 8

Company Information



Server RackStation RS4021xs+ Intel Xeon D-1541 D4EC-2666-16G HAT5300-16T Enterprise-class NAS Server 10Server RackStation RS4021xs+ Intel Xeon D-1541 D4EC-2666-16G HAT5300-16T Enterprise-class NAS Server 12

Our Advantages

Server RackStation RS4021xs+ Intel Xeon D-1541 D4EC-2666-16G HAT5300-16T Enterprise-class NAS Server 14

FAQ

Q: What's your advantages?

A: We are a professional supplier in network equipment field more than five years. We supply original brand products with good price to customers. We have professional sales team provide 24 hours free-consulting, and we also have professional technical team and after-sales department.





Q: What's the warranty of your products?

A: one year (except for the used products).



Q: what's the MOQ for your products?

A: 1piece.



Q: What's the payment terms?

A: Pre T/T or paypal or west union or Alibaba Trade Assurance order.





Q: What's the package?

A: Original packing. For the outside, we will pack it in an empty box to protect from damaged during transportation, and ensure you will receive the goods in good condition.
