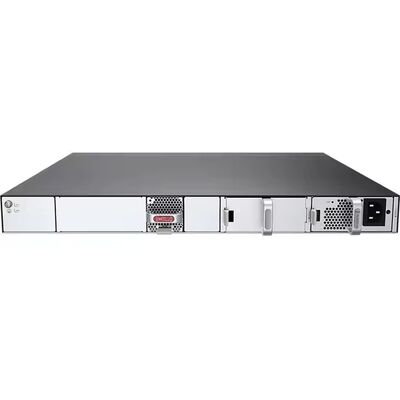

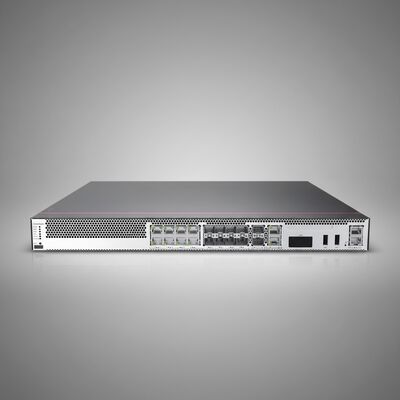

USG6525E-AC Host (2GE WAN+8GE Combo+2*10GE SFP+) Security Firewall 1U Desktop Device Next-Generation Firewall

Name: USG6525E-AC Host (2*GE WAN+8*GE Combo+2*10GE SFP+) Security Firewall 1U Desktop Device Next-Generation Firewall
Brand: Beijing Hui Tong High Tech Limited.
SKU: USG6525E-AC
Price: 865.00 USD
Availability: InStock

Model Number:	USG6525E-AC
MOQ:	1
Price:	$850-880

Detail Information

Product Description

Detail Information

Place of Origin:

Beijing, China

Type:

Wired & Wireless

Vpn Support:

Yes

Products Status:

Stock

Highlight:

USG6525E-AC security firewall

1U desktop network firewall

next-generation firewall with 10GE SFP+

Product Description

Basic Information
Part Number	02353AFX
Model	USG6525E-AC
Description	USG6525E AC Host (2GE WAN+8GE Combo+2*10GE SFP+,1 AC power)
First supported version	V600R007C00

Item	Specification
Installation Type	Rack Work bench
Cabinet installation standard	Cabinet with a depth of 600 mm or above
Dimensions without packaging (H x W x D) [mm(in.)]	43.6 mm x 442 mm x 420 mm (1.72 in. x 17.4 in. x 16.54 in.)
Dimensions with packaging (H x W x D) [mm(in.)]	220 mm x 550 mm x 530 mm (8.66 in. x 21.65 in. x 20.87 in.)
Chassis height [U]	1 U
Weight with packaging [kg(lb)]	USG6525E-AC (02353AFX): 8.75 kg (19.29 lb) USG6525E-AC (02353AFX-001): 7.93 kg (17.48 lb) USG6525E-AC (02353AFX-002): 7.93 kg (17.48 lb)
Weight without packaging [kg(lb)]	USG6525E-AC (02353AFX): 5.8 kg (12.79 lb) USG6525E-AC (02353AFX-001): 5.95 kg (13.12 lb) USG6525E-AC (02353AFX-002): 5.95 kg (13.12 lb)
CPU	1 CPU, 4 cores/CPU, up to 1.4 GHz
Memory	DDR4 4 GB
NOR Flash	USG6525E-AC (02353AFX): 32 MB NOTE: The NOR flash memory size of devices delivered later is 64 MB. You can run the display version command to check the NOR flash memory size. USG6525E-AC (02353AFX-001): 32 MB NOTE: The NOR flash memory size of devices delivered later is 64 MB. You can run the display version command to check the NOR flash memory size. USG6525E-AC (02353AFX-002): 32 MB NOTE: The specification of the NOR flash of the device to be delivered is 64 MB. You can run the display version command to view the NOR flash memory specification of a device.
NAND Flash	2 GB
Hard disk	Optional. M.2 SSD (64GB/240GB), hot-swappable.
Console port	RJ45
Eth Management port	RJ45
Maximum power consumption [W]	USG6525E-AC (02353AFX): 40 W USG6525E-AC (02353AFX-001): 45.3 W USG6525E-AC (02353AFX-002): 45.3 W
Maximum heat dissipation [BTU/hour]	USG6525E-AC (02353AFX): 136.8 BTU/hour USG6525E-AC (02353AFX-001): 154.4 BTU/hour USG6525E-AC (02353AFX-002): 154.4 BTU/hour
MTBF [years]	68.98 years
MTTR [hours]	2 hours
Power supply mode	AC built-in
Number of power modules	1
Rated input voltage [V]	100 V to 240 V, 50 Hz/60 Hz
Input voltage range [V]	90 V to 290 V, 47 Hz to 63 Hz
Types of fans	Pluggable
Number of fan modules	1
Heat dissipation mode	The fan module locates at the air exhaust of the system.
Airflow direction	Air inlet from front and air outlet from rear
Redundant power supply	Two power modules are supported for 1+1 power redundancy.
Long-term operating temperature [°C(°F)]	0°C to 45°C
Storage temperature [°C(°F)]	-40°C to 70°C
Long-term operating relative humidity [RH]	5% RH to 95% RH, non-condensing
Storage relative humidity [RH]	5% RH to 95% RH, non-condensing
Long-term operating altitude [m(ft.)]	0 m to 5000 m
Storage altitude [m(ft.)]	0 m to 5000 m

Packaging & Shipping

Fast delivery

Two large warehouses place products in stock for sale

Minimize the time from order to delivery as much as possible

FAQ

Q: What's your advantages?

A: We are a professional supplier in network equipment field more than five years. We supply original brand products with good price to customers. We have professional sales team provide 24 hours free-consulting, and we also have professional technical team and after-sales department.

Q: What's the warranty of your products?

A: one year (except for the used products).

Q: what's the MOQ for your products?

A: 1piece.

Q: What's the payment terms?

A: Pre T/T or paypal or west union or Alibaba Trade Assurance order.

Q: What's the package?

A: Original packing. For the outside, we will pack it in an empty box to protect from damaged during transportation, and ensure you will receive the goods in good condition.
