Catalyst 9300X Enterprise Network Switch with 24x25G Fiber Ports, Modular Uplink, and 1 Terabit Stack Bandwidth

Catalyst 9300X Enterprise Network Switch with 24x25G Fiber Ports, Modular Uplink, and 1 Terabit Stack Bandwidth

Brand Name: Cisco
Model Number: C9300X-24Y-A
MOQ: 2
Price: $6,196-6,526
Detail Information
Place of Origin:
Beijing, China
Communication Mode:
Full-Duplex & Half-Duplex
Transmission Rate:
10/100/1000Mbps
Function:
LACP, POE, QoS, Stackable, VLAN Support
Ports:
24
Private Mold:
No
Products Status:
Stock
Highlight:

Catalyst 9300X enterprise switch 24x25G fiber ports

,

Modular uplink network switch with warranty

,

Enterprise networking switch 25G fiber connectivity

Product Description

Product Description

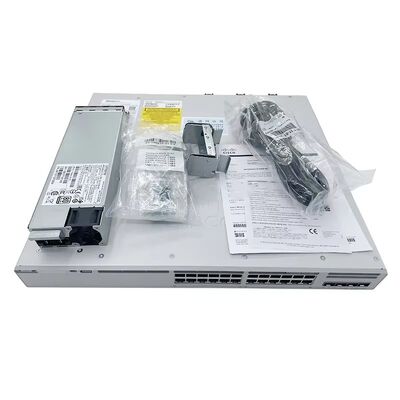

C9300X-24Y-A Cisco 9300 24 ports Advantaged Fibre Enterprise Network Switch

    The new Catalyst 9300X models, part of the Catalyst 9300 Series switches, have been purpose built to solve these challenges and help customers reimagine connections, reinforce security and redefine the IT experience. Catalyst 9300X switches are powered by Ciscoo’s Unified Access Data Plane 2.0sec (UADP 2.0sec) ASIC and run Modular IOS-XE software. Catalyst 9300X models are an extension of the existing Catalyst 9300 switches with increased scale, bandwidth, and with new hardware capabilities. Catalyst 9300X models are available in both Fiber and Copper variants with flexible Uplink options of up to 100G speeds (using 9300X-only uplinks) and provide the industry’s densest MultiGigabit & UPOE+ ports.
     Catalyst 9300X switches provide the Industry’s highest stack bandwidth at 1 Terabit. 9300X models use the same stack cables as existing 9300 models. Up to eight 9300X switches can be stacked together, and are backward compatible with, existing 9300 models (except 9300B and 9300L). These platforms enable flexible design options allowing for a mix of 10/25G Fiber and Copper models in the same stack.

Product Code

C9300X-24Y-A

Description

9300 24-port 25G/10G/1G SFP28 with modular uplinks, Network Advantage

General

Device Type

Switch - 24 ports - L3 - managed - stackable

Enclosure Type

Rack-mountable 1U

Subtype

25 Gigabit Ethernet

Ports

24 x 1/10/25 Gigabit SFP28

Jumbo Frame Support

9198 bytes

Remote Management Protocol

SNMP 1, RMON 1, RMON 2, SNMP 3, SNMP 2c, CLI, NETCONF, RESTCONF

Encryption Algorithm

128-bit AES

RAM

16 GB

Flash Memory

16 GB

Status Indicators

Status

Expansion / Connectivity

Interfaces

24 x 1/10/25GBase-X SFP28 ¦ 1 x USB 2.0

Expansion Slots

1 (total) / 1 (free) x expansion slot

Power

Power Device

Internal power supply

Power Provided

715 Watt

Voltage Required

AC 120/230 V (50/60 Hz)

Miscellaneous

Dimensions & Weight

Width

17.5 in

Depth

17.6 in

Height

1.7 in
