TL-SG1428PE 28-Port Gigabit Easy Smart Switch with 24-Port PoE+ and 250W PoE Budget

Name: TL-SG1428PE 28-Port Gigabit Easy Smart Switch with 24-Port PoE+ and 250W PoE Budget
Brand: Beijing Hui Tong High Tech Limited.
SKU: TL-SG1428PE
Price: 475 USD
Availability: InStock

Brand Name:	TL
Model Number:	TL-SG1428PE
MOQ:	2
Price:	$475

Detail Information

Product Description

Detail Information

Place of Origin:

Beijing, China

Communication Mode:

Full-Duplex

Switch Capacity:

128G

Transmission Rate:

10/100/1000Mbps

Function:

POE

Ports:

Private Mold:

Products Status:

Stock

Product Name:

28-Port Gigabit Easy Smart Switch With 24-Port PoE+

Model:

TL-SG1428PE

Condition:

Origianl

Warranty:

1year

Communication Mode:

Full-Duplex & Half-Duplex

Data Rate:

336 Gbps

Function:

LACP, QoS, SNMP, Stackable, VLAN Support

Backplane Speed:

160 Gbps

PoE Ports:

Highlight:

28-port gigabit PoE+ switch

24-port PoE+ smart switch

gigabit easy smart networking switch

Product Description

Products Description

Product Paramenters

TL-SG1428PE

28-Port Gigabit Easy Smart Switch with 24-Port PoE+
* 24 10/100/1000Mbps RJ45 PoE+ Ports Switch with 2 SFP Slots
* PoE power budget is up to 250 W*, making it ideal for small to medium business surveillance systems
* Priority Mode helps to guarantee the quality of sensitive application like video monitoring
* PoE Auto Recovery enables system self-healing to guarantee the stable operation of PoE-connected devices
* QoS is for smooth internet-surfing experience and IGMP Snooping is capable of optimizing traffic for IPTV
* Intelligent power management can protect the switch from overload

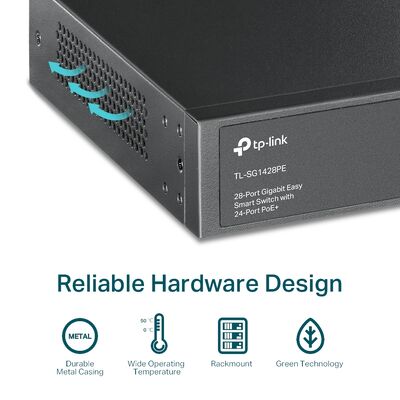

Shell	Metal material, fan-free design
Net Weight	0.6 kg (1.32 lb)
Gross Weight	1.4 kg (3.09 lb)
Dimensions (W × H × D)	217.6 mm × 27.8 mm × 108.55 mm (8.6'' × 1.1'' × 4.3'')
Operating Temperature	0 °C to 50 °C
Storage Temperature	-40 °C to 70 °C
Operating Humidity	10% to 90% (no condensation)
Storage Humidity	5% to 90% (no condensation)
Power Supply	48 VDC, 2.5 A
Max. Power Consumption	120W
Power Consumption in Idle	10W
Installation Mode	Desk-Mounted,Wall-Mounted;
Surge Protection	6 KV
Ports	24 × Gigabit PoE port,2 × Gigabit RJ45 port,2 × Gigabit fiber optical port
MAC Address Table	4K
Switching Capacity	56 Gbps
Packet Forwarding Rate	14.88 Mpps
Internal Cache	1.5 Mbits
PoE Standard	IEEE 802.3af,IEEE 802.3at
PoE Power Pin	End-span: 1/2(+), 3/6(-)
PoE Port	PoE: Ports 1 to 24
Max. Port Power	30W
PoE Power Budget	110W
EMC	FCC (47 CFR Part 15, Subpart B),CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020),IC (ICES-003: Issue 7:2020),RCM (AS/NZS CISPR 32: 2015)
Safety	UL (UL 60950-1),CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition), CE-LVD (EN 62368-1: 2014+A11: 2017)
Chemistry	CE-RoHS (2011/65/EU)
