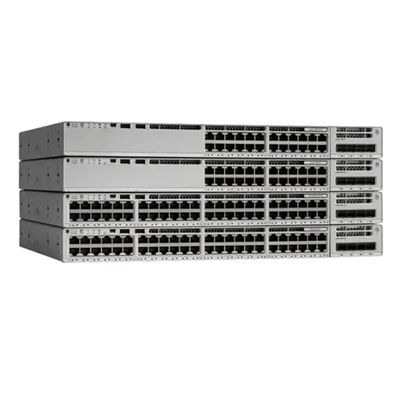

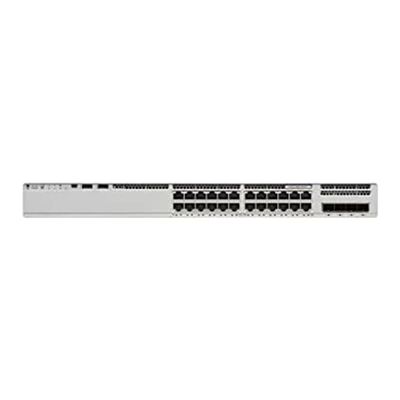

Cisco Catalyst 9200L Network Switch with 24 Ports Full PoE+ 4x1G Uplink and Stackable Functionality

Name: Cisco Catalyst 9200L Network Switch with 24 Ports Full PoE+ 4x1G Uplink and Stackable Functionality
Brand: Beijing Hui Tong High Tech Limited.
SKU: C9200L-24P-4G-A
Price: 1.00 USD
Availability: InStock

Model Number:	C9200L-24P-4G-A
MOQ:	2
Price:	$1,360-1,420

Detail Information

Product Description

Detail Information

Place of Origin:

Beijing, China

Communication Mode:

Full-Duplex & Half-Duplex

Switch Capacity:

Transmission Rate:

10/100/1000Mbps

Function:

POE, Stackable, VLAN Support

Ports:

Private Mold:

Yes

Products Status:

Stock

Product Name:

C9200L-24P-4G-A

Warranty:

One Year

Condition:

NIB Original

Highlight:

Cisco Catalyst 9200L PoE+ switch

24 port network switch with 4G uplink

C9200L-24P-4G-A full PoE+ switch

Product Description

C9200L-24P-4G-A is the Catalyst 9200L 24 ports full PoE+ 4x1G uplink Switch, with Network Advantage software. ® Catalyst® 9200 Series switches extend the power of intent-based networking and Catalyst 9000 hardware and software innovation to a broader set of deployments. With its family pedigree, Catalyst 9200 Series switches offer simplicity without compromise – it is secure, always on, and IT simplified.

Catalyst 9200 series provides these highlights:

Up to 48 ports of full Power over Ethernet Plus (PoE+) capability

Resiliency with Field-Replaceable Units (FRU) and redundant power supply, fans, and modular uplinks

Flexible downlink options with data or PoE+

Operational efficiency with optional backplane stacking, supporting stacking bandwidth up to 160 Gbps

UADP 2.0 Mini with integrated CPU offers customers optimized scale with better cost structure

Enhanced security with AES-128 MACsec encryption, policy-based segmentation, and trustworthy systems

Layer 3 capabilities, including OSPF, EIGRP, ISIS, RIP, and routed access

Advanced network monitoring using Full Flexible NetFlow

Software-Defined Access (SD-Access):

Simplified operations and deployment with policy-based automation from edge to cloud managed with Identity Services Engine (ISE)

Network assurance and improved resolution time through DNA Center™

Plug and Play (PnP) enabled: A simple, secure, unified, and integrated offering to ease new branch or campus device rollouts or updates to an existing network

IOS XE: A Common Licensing based operating system for the enterprise Catalyst 9000 product family with support for model-driven programmability and streaming telemetry

ASIC with programmable pipeline and micro-engine capabilities, along with template-based, configurable allocation of Layer 2 and Layer 3 forwarding, Access Control Lists (ACLs), and Quality of Service (QoS) entries

Supported Products

Table 2 shows the recommended supported products.

StackWise-80 and StackWise-160 Kit and cables
Product number	Product description
C9200-STACK-KIT=	C9200 Stack Kit Spare
C9200L-STACK-KIT=	C9200L Stack Kit Spare
STACK-T4-50CM	50CM Type 3 Stacking Cable
STACK-T4-1M	1M Type 3 Stacking Cable
STACK-T4-3M	3M Type 3 Stacking Cable
Soft Licenses
Product number	Product description
C9200L-DNA-P-24	C9200L DNA Premier Term, 24-Port: Includes Term Licenses for DNA Advantage, 25 ISE Base & 25 ISE Plus Endpoints, 25 Stealthwatch Flows (including Virtual Flow Collector & Management Console). Requires separate purchase of ISE appliance/ISE VM and DNA Center appliance
C9200L-DNA-P-24-3Y	C9200L DNA Premier, 24-port, 3Y Term – DNA, 25 ISE PLS and ISE BASE, 25 SWATCH
C9200L-DNA-P-24-5Y	C9200L DNA Premier, 24-port, 5Y Term – DNA, 25 ISE PLS and ISE BASE, 25 SWATCH
C9200L-DNA-P-24-7Y	C9200L DNA Premier, 24-port, 7Y Term – DNA, 25 ISE PLS and ISE BASE, 25 SWATCH
Power supplies
Product Number	Product Description
PWR-C5-600WAC/2=	600WAC power supply spare

C9200L-24P-4G-A Specification
Downlinks total 10/100/1000 or PoE+ copper ports	24 ports full PoE+
Uplink configuration	4x 1G fixed uplinks
Default primary AC power supply	PWR-C5-600WAC
Fans	Fixed redundant
Software	Network Advantage
Chassis Dimensions	1.73 x 17.5 x 11.3 in 4.4 x 44.5 x 28.8 cm
Weight	4.35 Kg
Virtual Networks	1
Stacking bandwidth	80 Gbps
Total number of MAC addresses	16,000
Total number of IPv4 routes (ARP plus learned routes)	11,000 (8,000 direct routes and 3,000 indirect routes)
IPv4 routing entries	3,000
IPv6 routing entries	1,500
Multicast routing scale	1,000
QoS scale entries	1,000
ACL scale entries	1,500
Packet buffer per SKU	6 MB buffers for 24- or 48-port Gigabit Ethernet models
Flexible NetFlow (FNF) entries	16,000 flows on 24- and 48-port Gigabit Ethernet models
DRAM	2 GB
Flash	4 GB
VLAN IDs	1024
Total Switched Virtual Interfaces (SVIs)	512
Jumbo frames	9198 bytes
Wireless bandwidth per switch	N/A
Switching capacity	56 Gbps
Forwarding rate	83.33 Mpps
Mean time between failures (hours)	392,210
