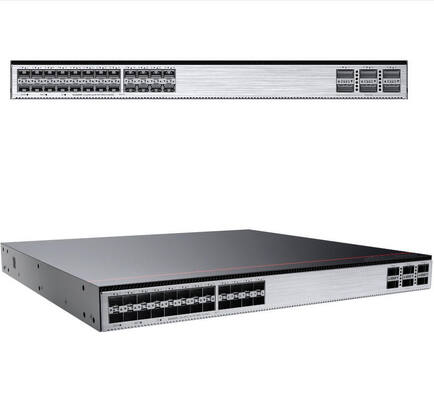

24 Port Gigabit POE Switch with 10GE SFP+ Ports and Stackable Enterprise Networking Switch

Model Number:	S5731-S24P4X
MOQ:	2
Price:	R$4,086.32-4,408.92

Detail Information

Product Description

Detail Information

Place of Origin:

Beijing

Communication Mode:

Full-Duplex & Half-Duplex

Transmission Rate:

10/100/1000Mbps

Function:

LACP, POE, QoS, SNMP, Stackable, VLAN Support

Ports:

Private Mold:

Products Status:

Stock

Highlight:

Gigabit PoE switch 24 ports

Enterprise network switch SFP+

10GE SFP+ PoE+ switch

Product Description

Product Code	S5731-S24P4X
Fixed port	24 x 10/100/1000Base-T (PoE+) ports, 4 x 10GE SFP+ ports
Dimensions (W x D x H)	442 mm x 420 mm x 43.6 mm
Chassis height	1 U
Power supply type	1000 W PoE AC (pluggable)
Rated voltage range	AC input (1000 W AC PoE): 100 V AC to 240 V AC, 50/60 Hz
Maximum voltage range	• AC input (1000 W AC PoE): 90 V AC to 290 V AC, 45 Hz to 65 Hz • High-voltage DC input (1000 W AC PoE): 190 V DC to 290 V DC (meeting 240 V high-voltage DC certification)
Maximum power consumption	• 121 W (without PD) • 977 W (with PD, PD power consumption of 720 W)

Product Model	CloudEngine S5735-L12T4S-A	CloudEngine S5735-L24T4S-A	CloudEngine S5735-L24T4X-A	CloudEngine S5735-L48T4S-A CloudEngine S5735-L24P4X-A	CloudEngine S5735-L48T4X-A	CloudEngine S5735-L32ST4X-A
	CloudEngine S5735-L12P4S-A	CloudEngine S5735-L24P4S-A	CloudEngine S5735-L24T4X-D		CloudEngine S5735-L48P4X-A	CloudEngine S5735-L32ST4X-D
Forwarding Performance	24 Mpps	42 Mpps	96 Mpps	78 Mpps	132 Mpps	108 Mpps
Switching Capacity2	32 Gbps/336 Gbps	56 Gbps/336 Gbps	128 Gbps/336 Gbps	104 Gbps/432 Gbps	176 Gbps/432 Gbps	144 Gbps/432 Gbps
Fixed Ports	12 x 10/100/1000Base-T ports, 4 x GE SFP ports	24 x 10/100/1000Base-T ports, 4 x GE SFP ports	24 x 10/100/1000Base-T ports, 4 x 10 GE SFP+ ports	48 x 10/100/1000BASE-T ports, 4 x GE SFP ports	48 x 10/100/1000BASE-T ports, 4 x 10 GE SFP+ ports	24 x GE SFP ports, 8 x 10/100/1000BASE-T ports, 4 x 10 GE SFP+ ports
PoE+	S5735-L12P4S-A: Supported
	S5735-L24P4S-A: Supported
	S5735-L24P4X-A: Supported
	S5735-L48P4X-A: Supported
	Other: Not support
MAC Features	MAC address auto-learning and aging
	Static, dynamic, and blackhole MAC address entries
	Packet filtering based on source MAC addresses
	Interface-based MAC address learning limiting
VLAN Features	4094 VLANs
	Guest VLAN, Voice VLAN
	GVRP
	MUX VLAN
	VLAN assignment based on MAC addresses, protocols, IP subnets, policies, and ports
	1:1 and N:1 VLAN mapping
IP Routing	Static route, RIP, RIPng, OSPF, OSPFv3
Super Virtual Fabric (SVF)	Plug-and-play SVF clients Automatic software package and patch loading to SVF clients One-click and automatic delivery of service
	configurations Independent SVF client operations
Interoperability	VBST (compatible with PVST/PVST+/RPVST) LNP (similar to DTP) VCMP (similar to VTP)
